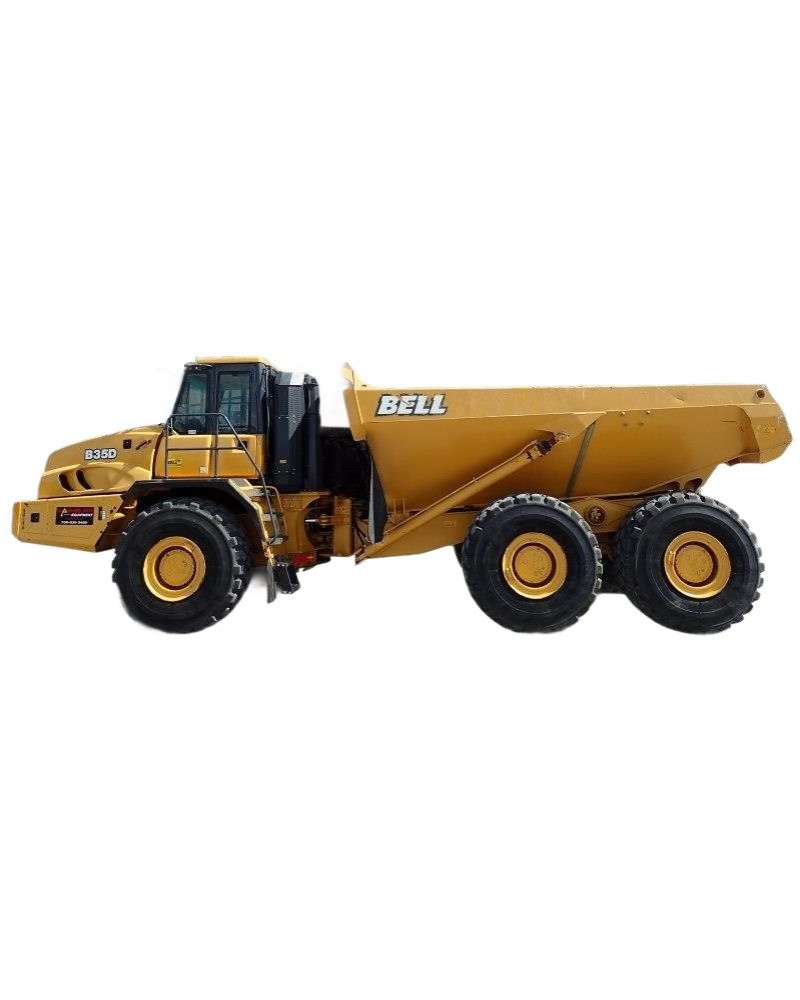

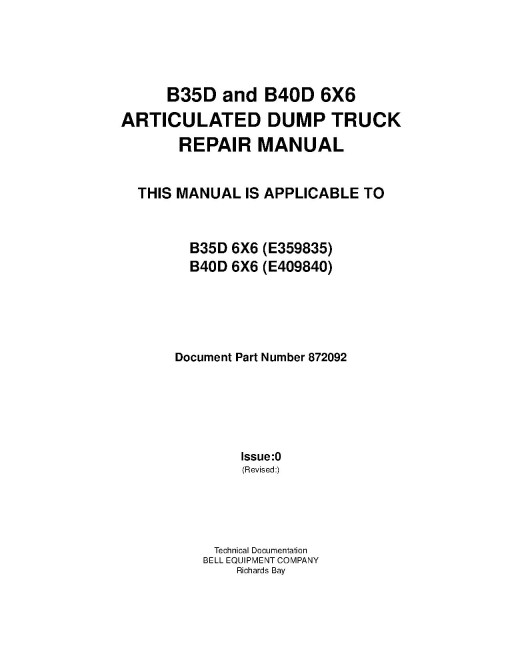

BELL B35D (PIN: E359835___) and B40D (PIN: E409840___) 6x6 Articulated Dump Trucks Repair Manual (872092)

Illustrated factory Repair Manual for BELL Articulated Dump Trucks Models B35D and B40D.

This manual will assist you in assembling, disassembling, and repairing for your articulated dump truck.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   B35D (PIN: E359835___)
   B40D (PIN: E409840___)

Format: PDF, 394 pages
Language: English
Table of Contents:
   SAFETY
      Specification
      Safety Features
      Material Safety Data Sheets (MSDS)
      Unauthorised Modifications of the Roll Over Protective Structure (ROPS) and the Falling Objects P
      Noise Emission Levels
      General Safety
   WHEELS
      REMOVAL AND INSTALLATION
   AXLES AND SUSPENSION SYSTEMS
      REMOVAL AND INSTALLATION
      DIFFERENTIAL OR BEVEL DRIVE
      INPUT DRIVE SHAFTS AND U-JOINTS
      AXLE MOUNTING PARTS

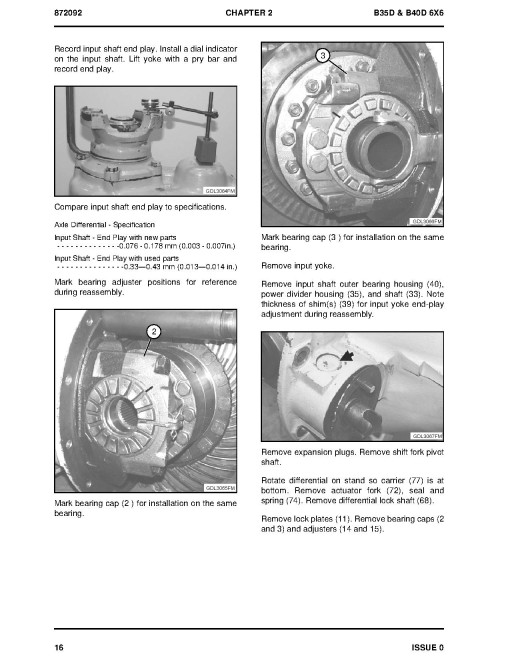

      AXLE SHAFTS, BEARINGS AND REDUCTION GEARS
   TRANSMISSION
      REMOVAL AND INSTALLATION
      INPUT DRIVE SHAFTS AND U-JOINTS
      GEAR, SHAFT AND POWER SHIFT CLUTCHES
      HYDRAULIC SYSTEM

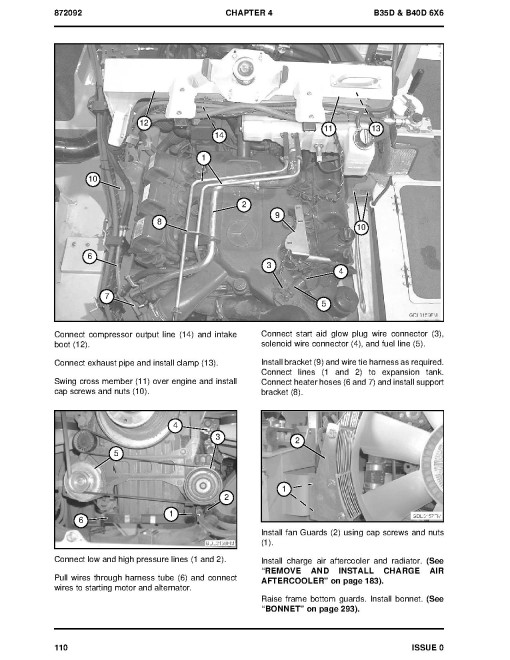

   ENGINE
      REMOVAL AND INSTALLATION
      CRANKSHAFT, MAIN BEARINGS AND FLYWHEEL
      CAMSHAFT AND TIMING GEAR TRAIN
      CYLINDER BLOCK, LINERS, PISTONS AND RODS
      LUBRICATION SYSTEM
      CYLINDER HEAD AND VALVES

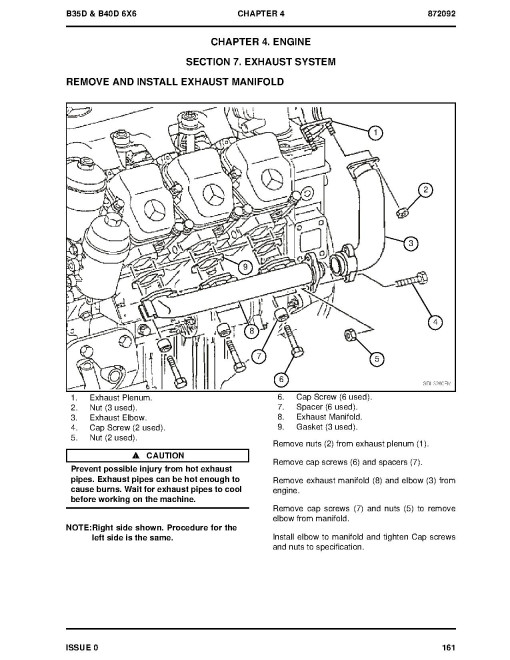

      EXHAUST SYSTEM
      FUEL INJECTION SYSTEM
      AIR INTAKE MANIFOLD SYSTEM
      TURBOCHARGER
      COOLING SYSTEM
      THERMOSTATS, HOUSING AND WATER PIPING
   ENGINE AUXILIARY SYSTEM
      COOLING SYSTEM
      INTAKE SYSTEM
      EXTERNAL EXHAUST SYSTEM
      ENGINE MOUNTING
      EXTERNAL FUEL SUPPLY SYSTEM
   CONNECTOR DRIVE (FLEXPLATE)
      ELEMENTS
   TRANSFER DRIVE
      REMOVAL AND INSTALLATION
      GEAR SHAFTS AND BEARINGS
   STEERING SYSTEM
      SECONDARY STEERING
      HYDRAULIC SYSTEM
   SERVICE BRAKES
      ACTIVE ELEMENTS
      HYDRAULIC SYSTEM
   PARK BRAKE
      ACTIVE ELEMENTS
   FRAME AND SUPPORTING STRUCTURE
      FRAME INSTALLATION
   OPERATORs STATION
      CAB
      SEAT AND SEAT BELT
      HEATING AND AIR CONDITIONING
   SHEET METAL AND STYLING
      BONNET OR ENGINE ENCLOSURE
   MAIN HYDRAULIC SYSTEM
      HYDRAULIC SYSTEM
   PNEUMATIC SYSTEMS
      PUMPS AND DRIVES
      CONTROL VALVES
      RESERVOIR, FILTER AND TRAP
      CYLINDERS
   HAULAGE DEVICE
      FRAMES
      HYDRAULIC SYSTEM
   DEALER FABRICATED TOOLS
      TOOLS
