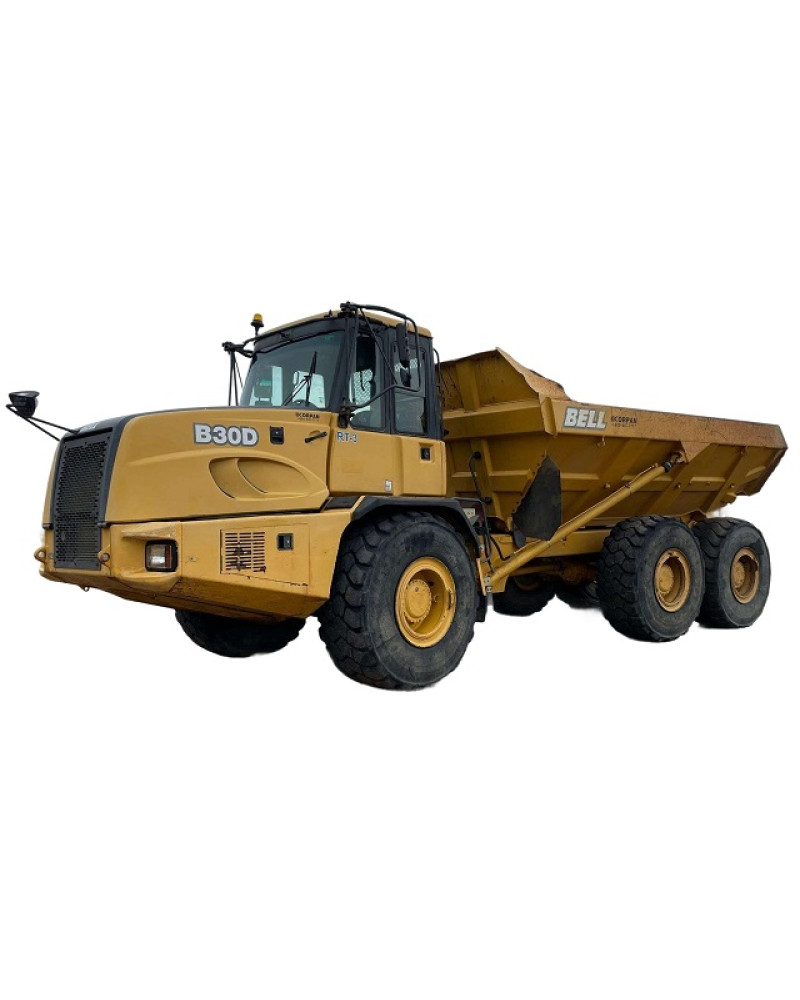

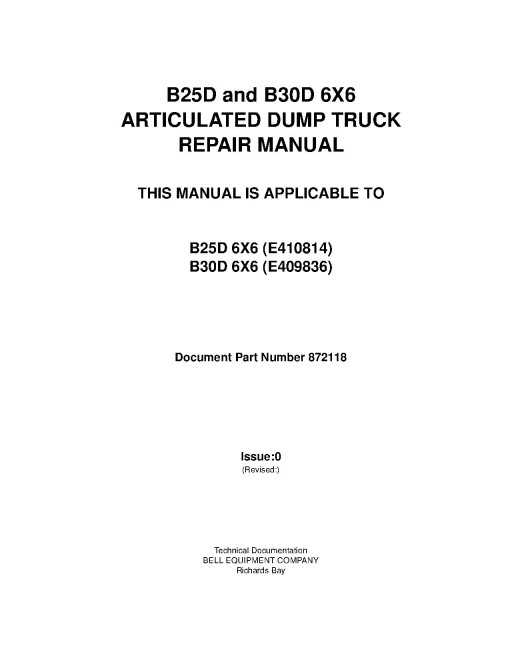

BELL B25D (PIN: E410814___) and B30D (PIN: E409836___) 6x6 Articulated Dump Trucks Repair Manual (872118)

Illustrated factory Repair Manual for BELL Articulated Dump Trucks Models B25D and B30D.

This manual will assist you in assembling, disassembling, and repairing for your articulated dump truck.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   B25D (PIN: E410814___)
   B30D (PIN: E409836___)

Format: PDF, 428 pages
Language: English
Table of Contents:
   SAFETY
   Specification
   Safety Features
   Material Safety Data Sheets (MSDS)
   Unauthorised Modifications of the Roll Over Protective Structure (ROPS) and the Falling Objects
   Noise Emission Levels
   General Safety
   USERS INFORMATINON FEEDBACK FORM
   WHEELS
   REMOVAL AND INSTALLATION OF WHEELS
   AXLES AND SUSPENSION SYSTEMS
   REMOVAL AND INSTALLATION
   AXLES
   DIFFERENTIAL OR BEVEL DRIVE

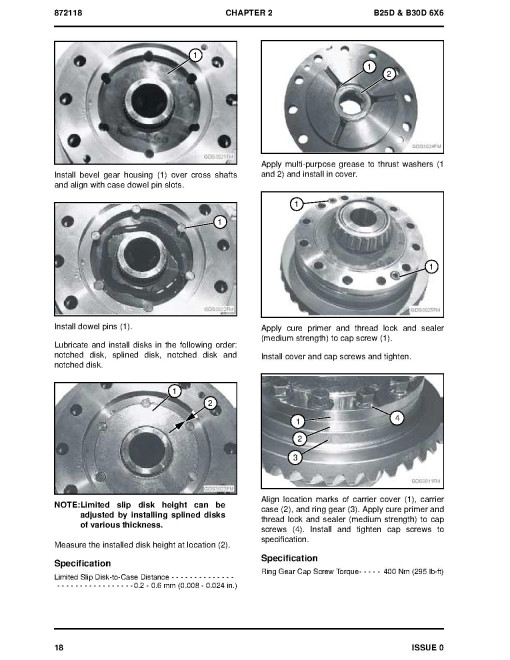

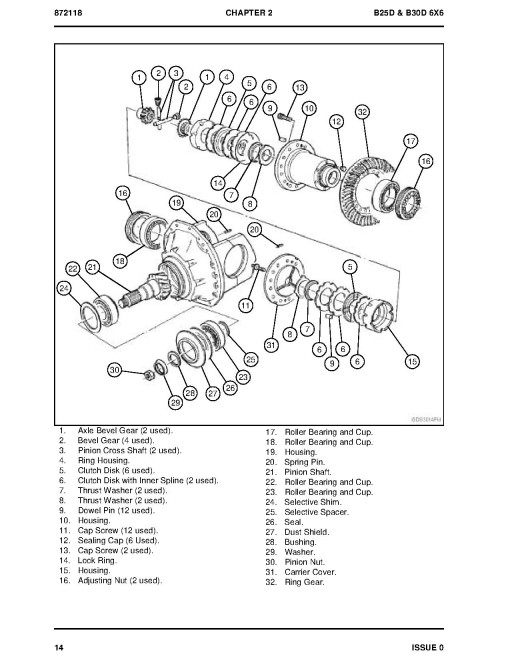

   AXLE DIFFERENTIAL - FRONT AND REAR
   AXLE DIFFERENTIAL - MIDDLE AXLE
   INPUT DRIVE SHAFTS AND U-JOINTS
   DRIVE SHAFTS
   AXLE MOUNTING PARTS
   AXLE LINKS, STABILIZERS AND STRUTS
   AXLE SHAFTS, BEARINGS AND REDUCTION GEARS
   FINAL DRIVE PLANETARY
   TRANSMISSION
   REMOVAL AND INSTALLATION
   INPUT DRIVE SHAFTS AND U-JOINTS
   REMOVE AND INSTALL TRANSMISSION-TO-TRANSFER CASE DRIVE SHAFT
   GEAR, SHAFT AND POWER SHIFT CLUTCHES
   HYDRAULIC SYSTEM
   REMOVE AND INSTALL TRANSMISSION OIL-TO-AIR COOLER
   ENGINE
   REMOVAL AND INSTALLATION
   ENGINE
   CRANKSHAFT, MAIN BEARINGS AND FLYWHEEL
   INSTALL ENGINE ON REPAIR STAND
   CRANKSHAFT AND MAIN BEARING FAILURE ANALYSIS
   CRANKSHAFT OIL SEALS
   FLYWHEEL
   CRANKSHAFT
   GRINDING GUIDELINES
   BLEED ENGINE OIL CIRCUIT AFTER MAJOR OVERHAUL
   CAMSHAFT AND TIMING GEAR TRAIN
   CAMSHAFT
   CYLINDER BLOCK, LINERS, PISTONS AND CONNECTING RODS
   LINER, PISTON AND ROD ANALYSIS
   LUBRICATION SYSTEM
   REMOVE AND INSTALL OIL FILTER HOUSING
   REMOVE, INSPECT, AND INSTALL ENGINE OIL FILTER BYPASS VALVE
   REMOVE, INSPECT AND INSTALL PISTON COOLING ORIFICES
   CYLINDER HEAD AND VALVES
   CYLINDER HEAD AND VALVES FAILURE ANALYSIS
   EXHAUST SYSTEM

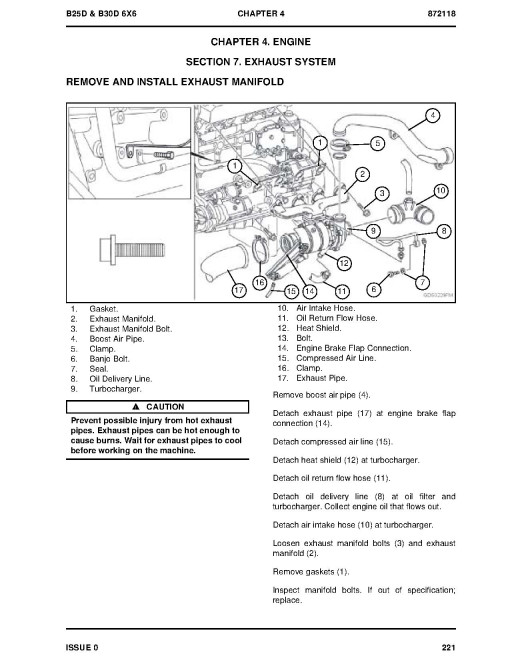

   REMOVE AND INSTALL EXHAUST MANIFOLD
   FUEL INJECTION SYSTEM
   REMOVE AND INSTALL HAND PRIMER PUMP
   REMOVE AND INSTALL FUEL SUPPLY PUMP
   REMOVE AND INSTALL ELECTRONIC UNIT INJECTOR (EUI)
   AIR INTAKE MANIFOLD SYSTEM
   REMOVE AND INSTALL AIR INTAKE MANIFOLD
   TURBOCHARGER
   TURBOCHARGER
   COOLING SYSTEM
   WATER PUMP
   THERMOSTATS, HOUSING AND WATER PIPING
   THERMOSTATS AND HOUSING
   B25D and B30D Repair Manual Part 4.pdf
      ENGINE AUXILIARY SYSTEM
      TRANSFER CASE (DROP BOX)
      STEERING SYSTEM
      SERVICE BRAKES
      PARK BRAKE
      FRAME AND SUPPORTING STRUCTURE
   B25D and B30D Repair Manual Part 5.pdf
      OPERATORs STATION
      SHEET METAL AND STYLING
      MAIN HYDRAULIC SYSTEM
      PNEUMATIC SYSTEMS
      HAULAGE DEVICE
      DEALER FABRICATED TOOLS
