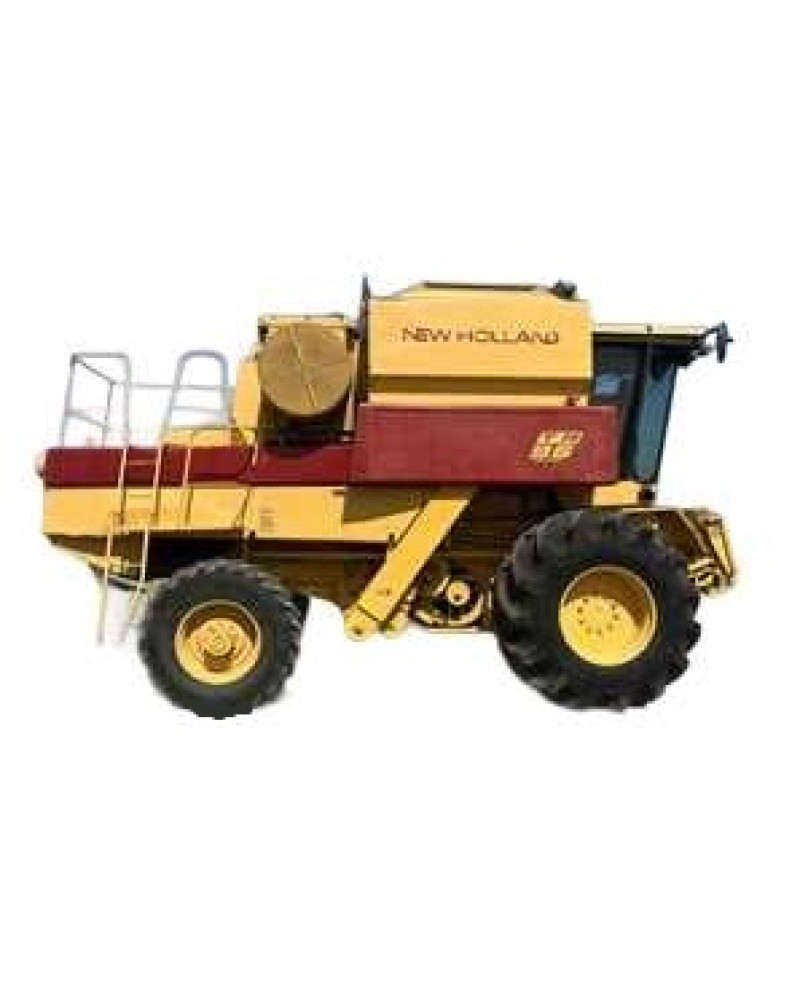

New Holland TR96, TR97 and TR98 Combines Repair Manual (40009630)

Illustrated factory Repair Manual for New Holland Combines Models TR96, TR97 and TR98.

This manual will assist you in assembling, disassembling, and repairing for your combine.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   TR96
   TR97
   TR98

Format: PDF, 1866 pages
Language: English

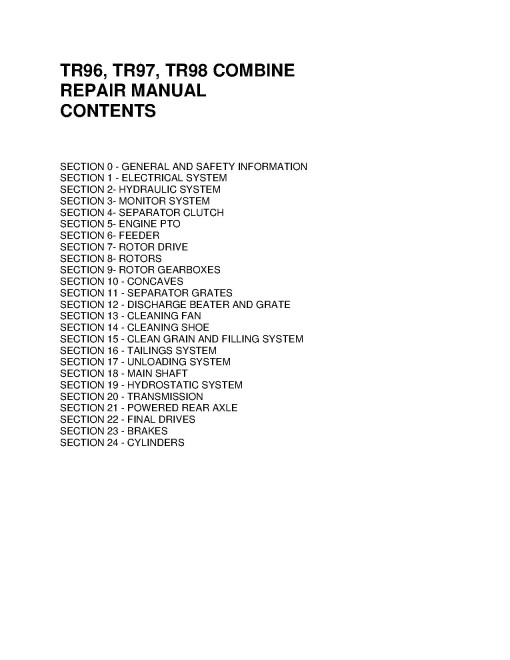

Table of Contents:
   General And Safety Information

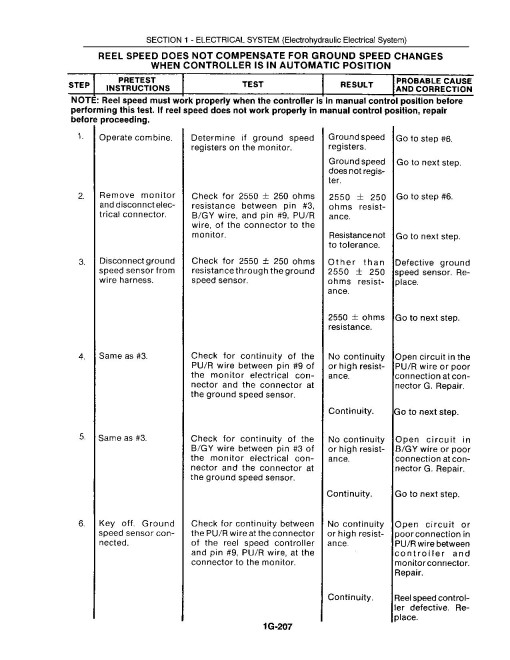

   Electrical System TR96 and TR97
   Electrical System TR98
   Hydraulic System TR96, TR97, and TR98
   Monitor Electrical Systems TR96, TR97 and TR98
   Separator Clutch TR96, TR97 and TR98
   Engine PTO Shaft TR96, TR97 and TR98
   Feeder TR96, TR97 and TR98
   Rotor Drive TR96, TR97 and TR98
   Rotors TR96, TR97 and TR98
   Rotor Gearboxes TR96, TR97 and TR98
   Concaves TR96, TR97 and TR98
   Separator Grates TR96, TR97 and TR98
   Discharge Deater and Grate TR96, TR97 and TR98
   Cleaning Fan TR96, TR97 and TR98
   Cleaning Shoe TR96, TR97 and TR98
   Clean Grain and Filling System Tr96, TR97 and TR98
   Tailings Return System TR96, TR97 and TR98
   Unloading System TR96, TR97 and TR98
   Main Shaft TR96, TR97 and TR98
   Hydrostatic System TR96, TR97 and TR98
   Transmission TR96, TR97 and TR98
   Powered Rear Axle TR96, TR97 and TR98
   Final Drive TR96, TR97 and TR98
   Brake System TR96, TR97 and TR98
   Cylinders TR96, TR97 and TR98
