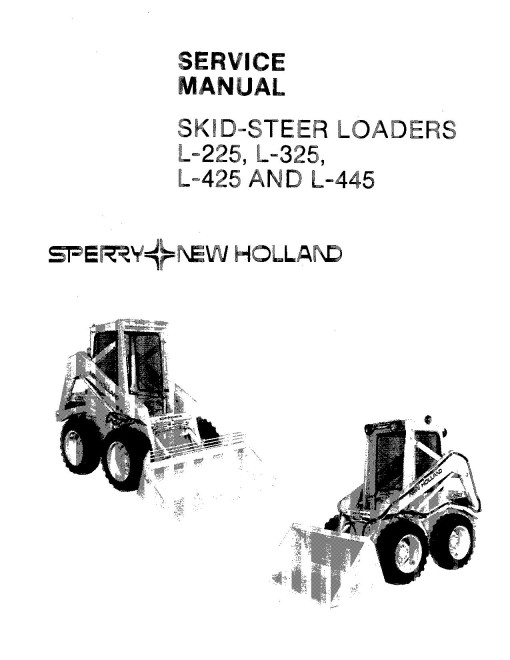

New Holland L225, L325, L425 and L445 Skid Steer Loaders Service Manual (40022541)

Illustrated factory Service Manual for New Holland Skid Steer Loaders Models L225, L325, L425 and L445.

This manual will assist you in diagnosing, analyses, testing, and repair for your skid steer loader.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   L225
   L325
   L425
   L445

Format: PDF, 120 pages
Language: English
Table of Contents:
   Table of Contents
   Skid-Steer Loader Operation

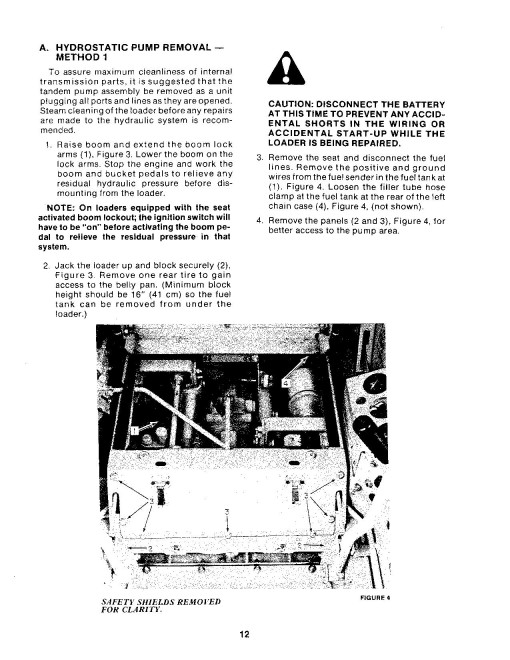

   Hydrostatic Transmission Removal
   Hydrostatic Transmission Pumps
   Hydrostatic Motors
   Gear Pumps
   Start-up Procedure After Transmission or Pump Overhaul
   Steering Control Adjustments
   Chain Coupler or Drive Shaft Removal
   Control Valve
   Boom and Bucket Cylinders
   Final Drive: Complete Disassembly and Reassembly
   Electrical System
   Trouble Shooting
   Seat Activated Boom Lockout

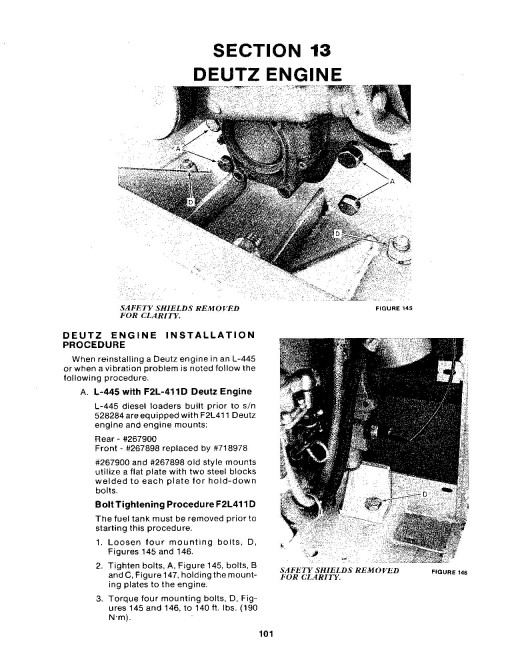

   Deutz Engine
   Specifications
   Loader Repair Operations
   Installation of Adjustable Fittings in Straight Thread O-Ring Bosses
   Standard Torque Data for Hydraulic Tues and Fittings
   Bolt Torque Chart
   Minimum Hardware Tightening Torques
   Index
