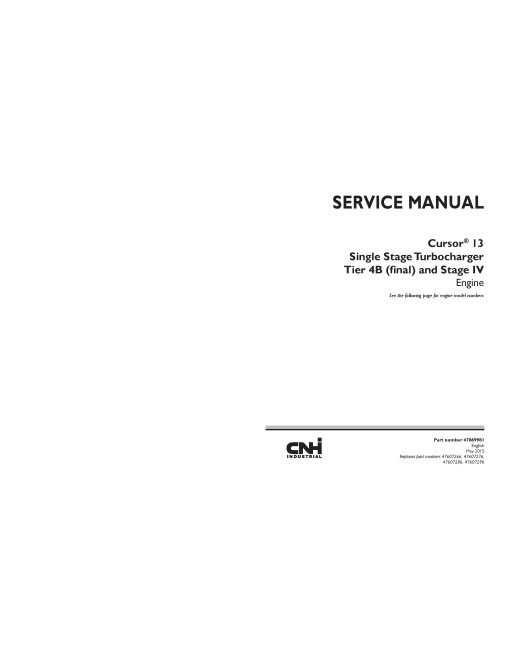

CNH F3HFE613A*B003, F3HFE613B*B001/B002, F3HFE613D*B001/B002, F3HFE613G*B001/B002 Tier 4B (final) / Stage IV Diesel Engines Service Manual (47869981)

Illustrated factory Service Manual for CNH Diesel Engines Models F3HFE613A*B003, F3HFE613B*B001, F3HFE613B*B002, F3HFE613D*B001, F3HFE613D*B002, F3HFE613G*B001 and F3HFE613G*B002.

This manual will assist you in diagnosing, analyses, testing, and repair for your diesel engine.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   F3HFE613A*B003
   F3HFE613B*B001
   F3HFE613B*B002
   F3HFE613D*B001
   F3HFE613D*B002
   F3HFE613G*B001
   F3HFE613G*B002

Format: PDF, 355 pages
Language: English
Table of Contents:
   INTRODUCTION
   Engine

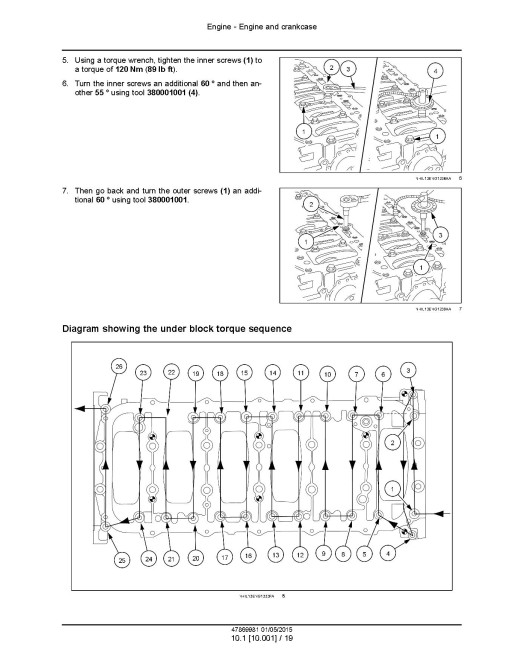

      Engine and crankcase

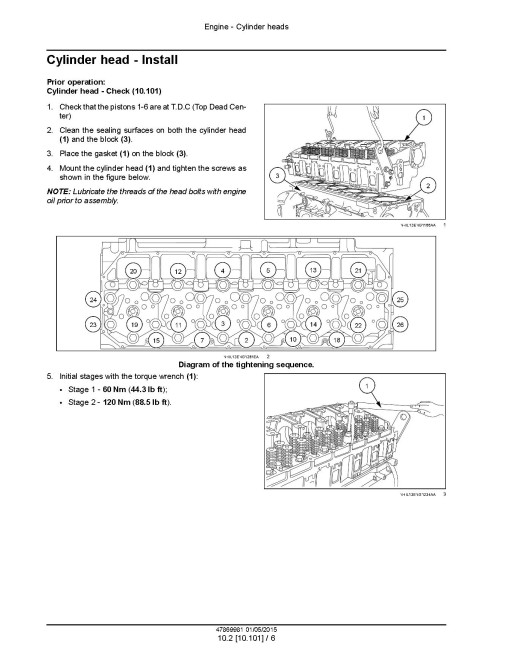

      Cylinder heads
      Pan and covers
      Crankshaft and flywheel.
      Connecting rods and pistons.
      Valve drive and gears
      Balancer and damper
      Pump drives
      Fuel filters
      Fuel injection system.
      Turbocharger and lines.
      Intake and exhaust manifolds and muffler
      Engine lubrication system
      Engine cooling system
      Oil cooler and lines.
      Fan and drive
      Selective Catalytic Reduction (SCR) exhaust treatment
   Electrical systems
      Fuel injection system.
      Engine cooling system
      Engine oil system
      Engine intake and exhaust system.
      Engine control system.
      Engine starting system
      Cold start aid
      Alternator
      Selective Catalytic Reduction (SCR) electrical system
   SPECIAL TOOL INDEX
