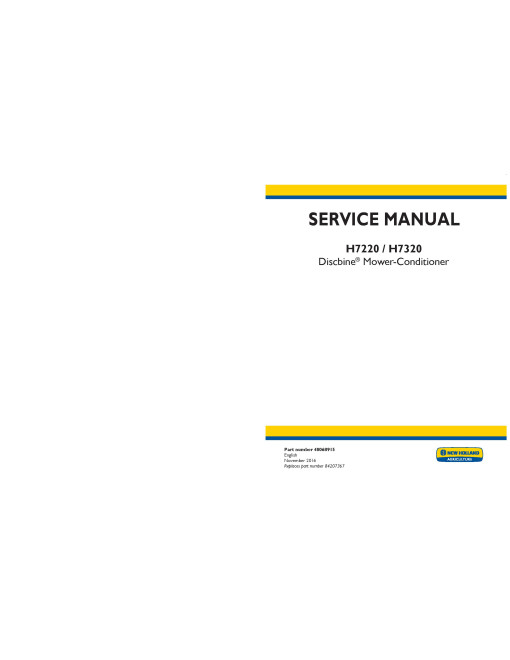

New Holland Discbine H7220 and H7320 Mower-Conditioners Repair Manual (48068915)

Illustrated factory Repair Manual for New Holland Discbine Mower-Conditioners Models H7220 and H7320.

This manual will assist you in assembling, disassembling, and repairing for your mower-conditioner.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:

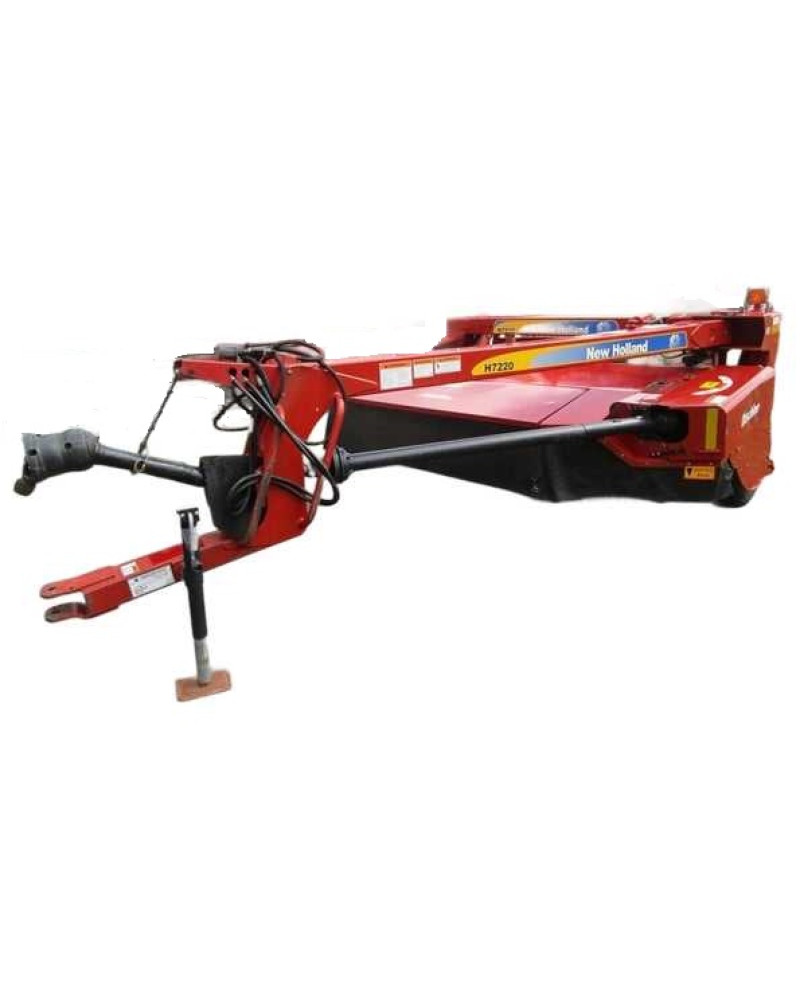

   Discbine H7220
   Discbine H7320

Format: PDF, 315 pages
Language: English
Publication Date: 01 Nov 2016
Table of Contents:
   INTRODUCTION
   Power Take-Off (PTO)

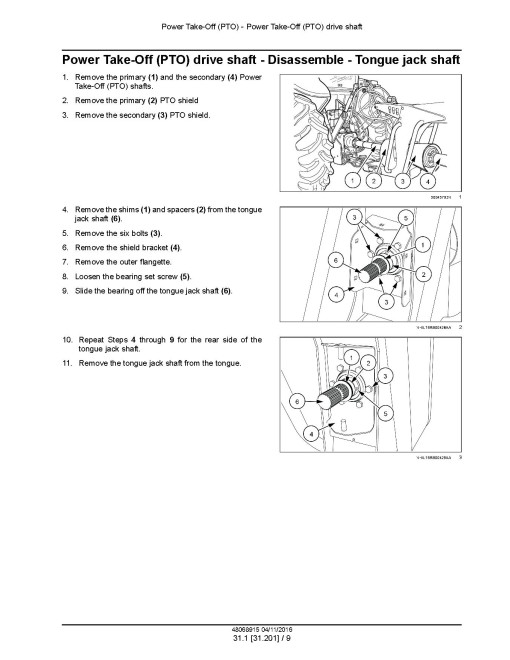

      Power Take-Off (PTO) drive shaft.
      Secondary Power Take-Off (PTO)

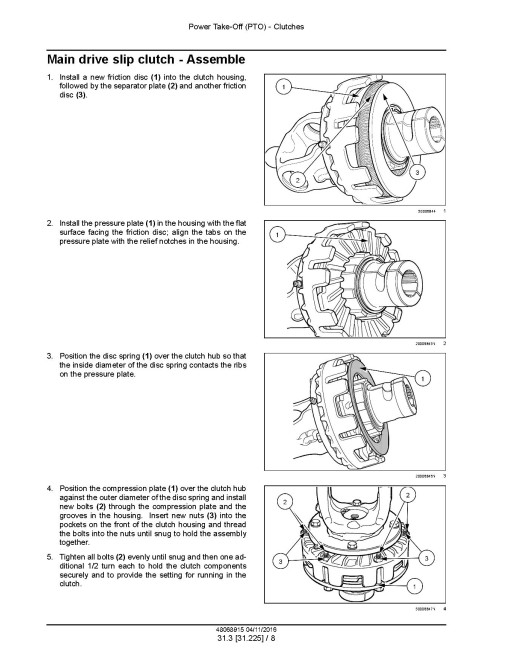

      Clutches
   Hydraulic systems
      Hydraulic systems.
      Header or attachment height system
      Header or attachment tilting system
      Frame positioning swinging
   Wheels
      Carrying and transport wheels
   Electrical systems
      External lighting
   Attachments/Headers
      Attachment/Header cutting mechanism
      Attachment/Header frame.
   Product feeding
      Header drive system
      Roll conditioning.
      Flail conditioning
