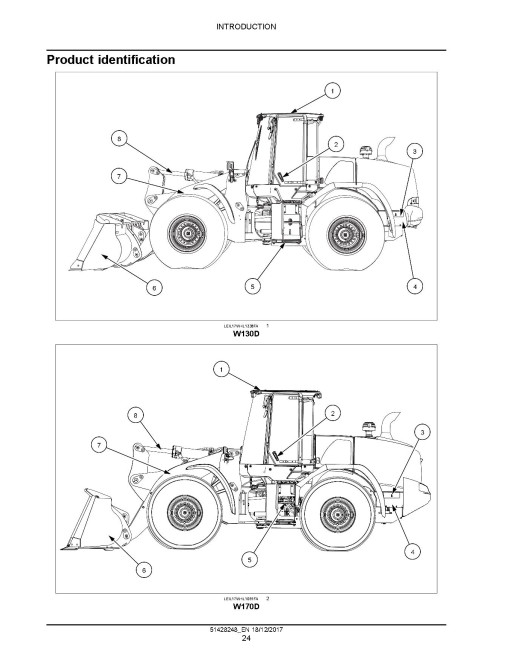

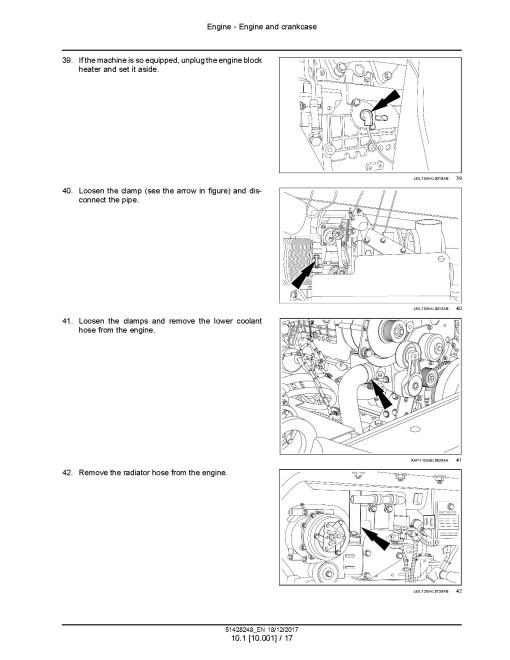

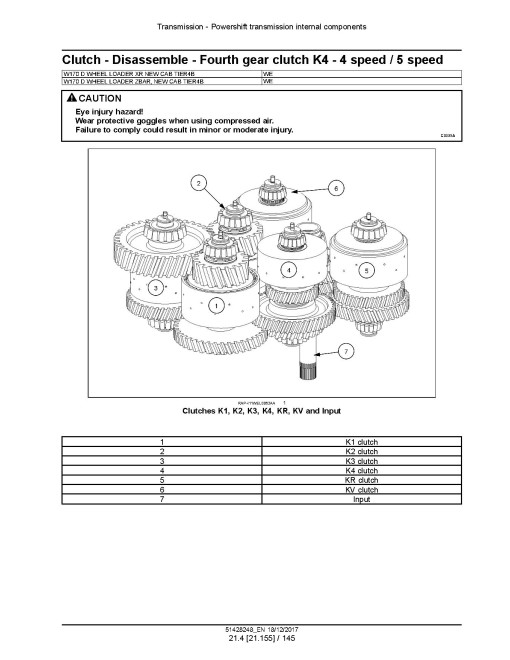

New Holland W130D and W170D Stage IV Wheeled Loaders Service Manual (51428248)

Illustrated factory Service Manual for New Holland Stage IV Wheeled Loaders Models W130D and W170D.

This manual will assist you in diagnosing, analyses, testing, and repair for your wheeled loader.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   W130D
   W170D

Format: PDF, 3747 pages
Language: English
Publication Date: 01 Nov 2017
Table of Contents:
   INTRODUCTION
   Engine
   Transmission
   Four-Wheel Drive (4WD) system
   Front axle system
   Rear axle system
   Brakes and controls
   Hydraulic systems
   Frames and ballasting
   Steering
   Wheels
   Cab climate control
   Electrical systems
   Front loader and bucket
   Platform, cab, bodywork, and decals
   SPECIAL TOOL INDEX
   ELECTRICAL SCHEMATIC 48168343
