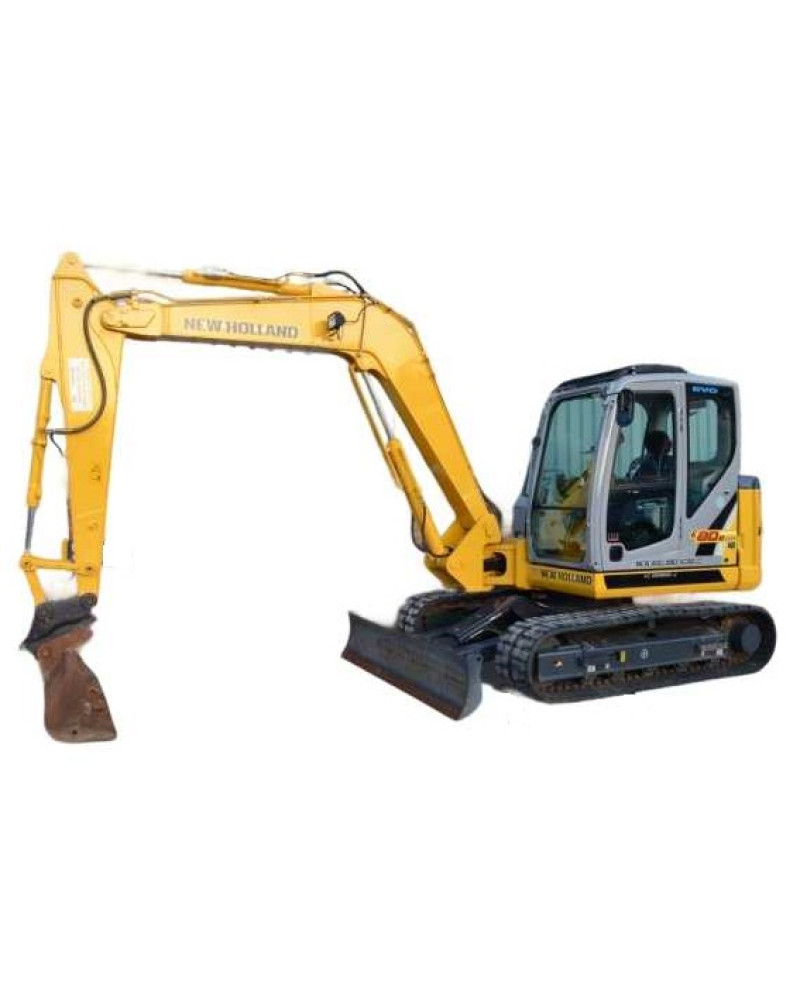

New Holland E80BMSR Tier 3 Crawler Excavators Workshop Manual (84365680B)

Illustrated factory Workshop Manual for New Holland Crawler Excavators Models E80BMSR.

This manual will assist you in diagnosing, and repairing for your crawler excavator.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   E80BMSR

Format: PDF, 948 pages
Language: English
Publication Date: 01 Sep 2010
Table of Contents:
      INTRODUCTION
      SAFETY PRECAUTIONS
      OUTLINE

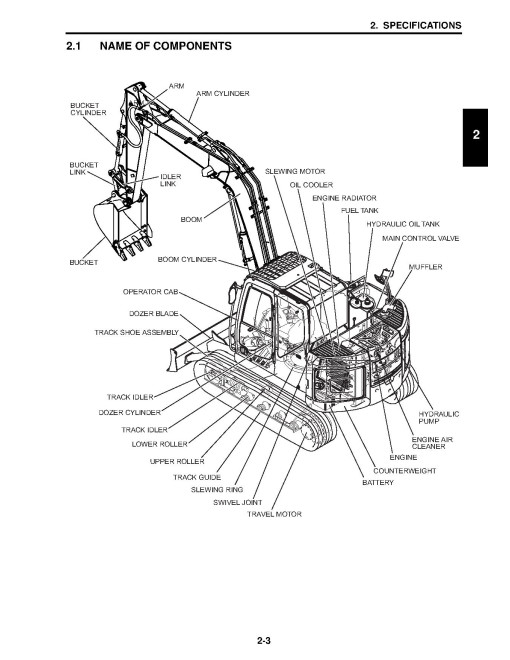

      SPECIFICATIONS

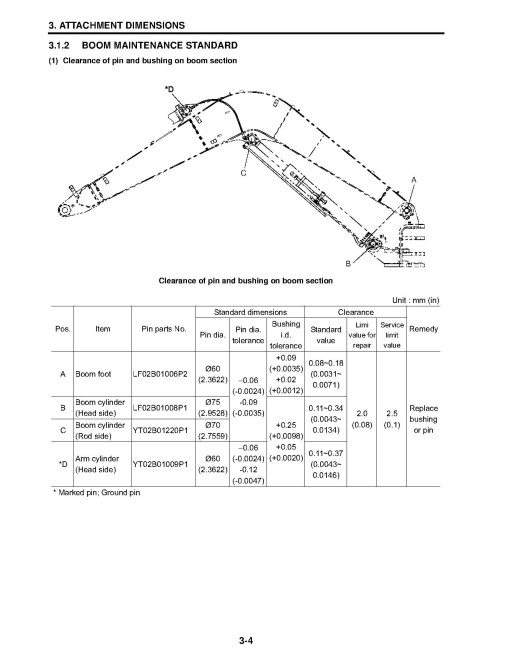

      ATTACHMENT DIMENSIONS
      TOOLS
      STANDARD MAINTENANCE TIME TABLE
      MAINTENANCE STANDARD AND TEST PROCEDURE
      MECHATRO CONTROLLER
      HYDRAULIC SYSTEM
      ELECTRICAL SYSTEM
      COMPONENTS SYSTEM
      AIR-CONDITIONER SYSTEM
      DISASSEMBLING AND ASSEMBLING
      ATTACHMENTS

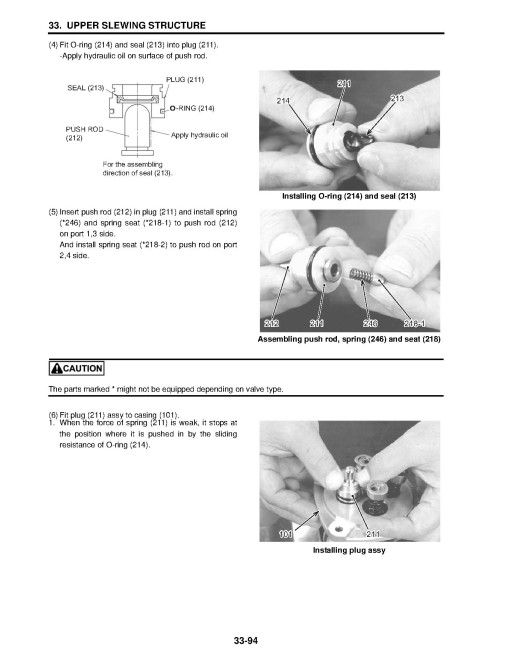

      UPPER SLEWING STRUCTURE
      TRAVEL SYSTEM
      TROUBLE SHOOTING (BY ERROR CODES)
      TROUBLESHOOTING (BY TROUBLE)
      ENGINE
      INDUSTRIAL DIESEL ENGINE ISUZU MOTORS LIMITED07/12/05AU-4LE2X MODEL
         General Information 0A-1
         LE2 Engine Mechanical 1A-1
         LE2 Cooling System 1B-1
         LE2 Fuel System 1C-1
         LE2 Electrical System 1D-1
         LE2 Exhaust System 1G-1
         LE2 Lubrication System 1H-1
         LE2 Intake System 1J-1
         LE2 Preheating System 1K-1
