CNH F5DFL413A*A001/A002, F5DFL413B*A006, F5DFL413C*A003, F5DFL413D*A003/A004, F5HFL413A*A001, F5HFL413B*A001/A002 and F5HFL413C*A001 Tier 4A Diesel Engines Service Manual (84496771)

Illustrated factory Service Manual for CNH Diesel Engines Models F5DFL413A*A001, F5DFL413A*A002, F5DFL413B*A006, F5DFL413C*A003, F5DFL413D*A003, F5DFL413D*A004, F5HFL413A*A001, F5HFL413B*A001, F5HFL413B*A002 and F5HFL413C*A001.

This manual will assist you in diagnosing, analyses, testing, and repair for your diesel engine.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   F5DFL413A*A001
   F5DFL413A*A002
   F5DFL413B*A006
   F5DFL413C*A003
   F5DFL413D*A003
   F5DFL413D*A004
   F5HFL413A*A001
   F5HFL413B*A001
   F5HFL413B*A002
   F5HFL413C*A001

Format: PDF, 236 pages
Language: English
Table of Contents:
   INTRODUCTION
   Engine
      Engine and crankcase.

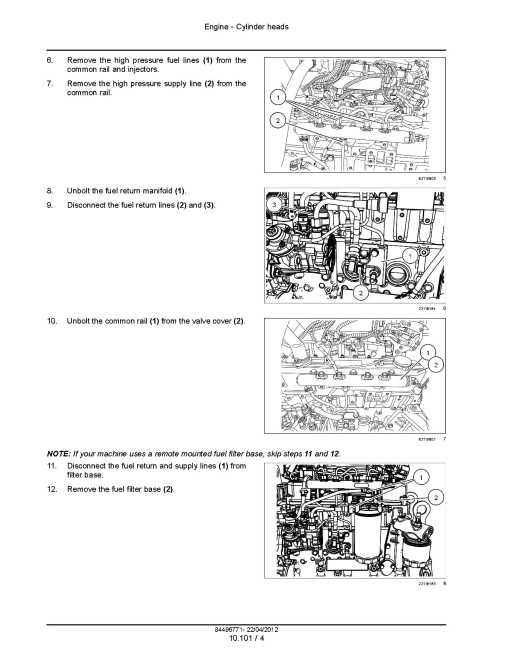

      Cylinder heads
      Pan and covers
      Crankshaft and flywheel
      Connecting rods and pistons
      Valve drive and gears
      Fuel filters
      Fuel injection system

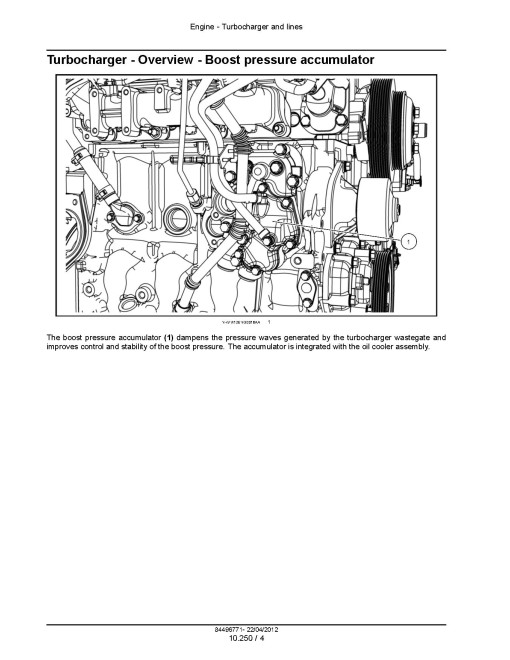

      Turbocharger and lines
      Intake and exhaust manifolds and muffler.
      Engine lubrication system
      Engine cooling system
      Oil cooler and lines
      Fan and drive
      Exhaust Gas Recirculation (EGR) exhaust treatment
   Electrical systems
      Engine cooling system
      Engine oil system.
      Engine intake and exhaust system
      Engine control system
      Engine starting system
      Cold start aid
      Alternator
   SPECIAL TOOL INDEX
