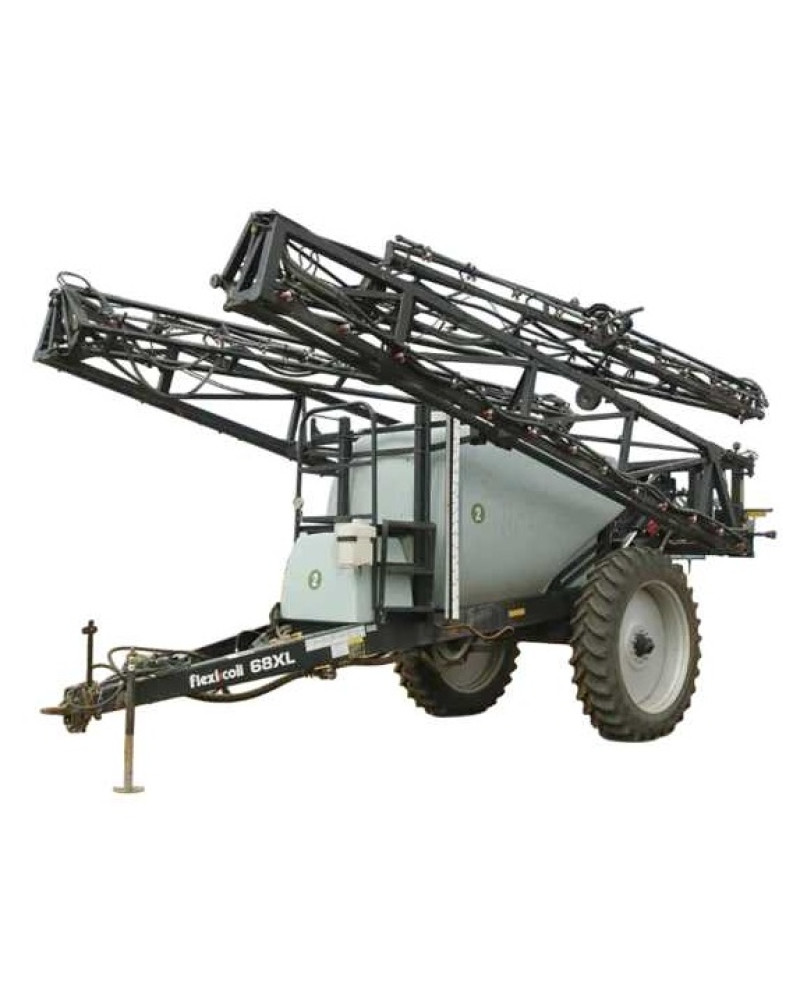

Flexi-Coil 68 and 68XL (SN from Y9S005001) Field Sprayers Repair Manual (87655441)

Illustrated factory Repair Manual for Flexi-Coil Field Sprayers Models 68 and 68XL.

This manual will assist you in assembling, disassembling, and repairing for your field sprayer.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   68 (SN: Y9S005001-)
   68XL (SN: Y9S005001-)

Format: PDF, 440 pages
Language: English
Table of Contents:
   INTRODUCTION
   DISTRIBUTION SYSTEMS-A
      LIGHTING SYSTEM-40.A
   TRAVELLING-D

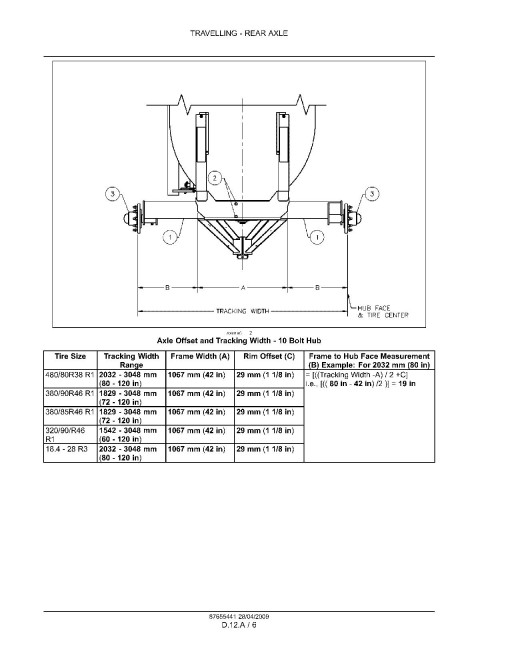

      REAR AXLE-12.A
      WHEELS AND TRACKS Wheels-50.C
   BODY AND STRUCTURE-E
      FRAME Secondary frame-10.C
   FRAME POSITIONING-F

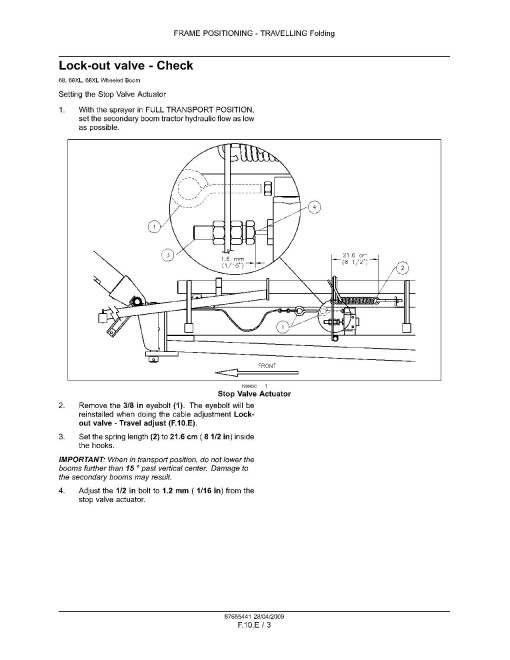

      TRAVELLING Folding-10.E
   WORKING ARM-H
      HITCH Front hitch-10.B
      BOOM Tilt-20.C
      BOOM Unfold-20.G
      BOOM Levelling-20.H
   FIELD PROCESSING-L
      SPRAYING-20.A
      SPRAYING Plumbing system-20.B
      SPRAYING Pressure system-20.C
      SPRAYING End marker-20.D
