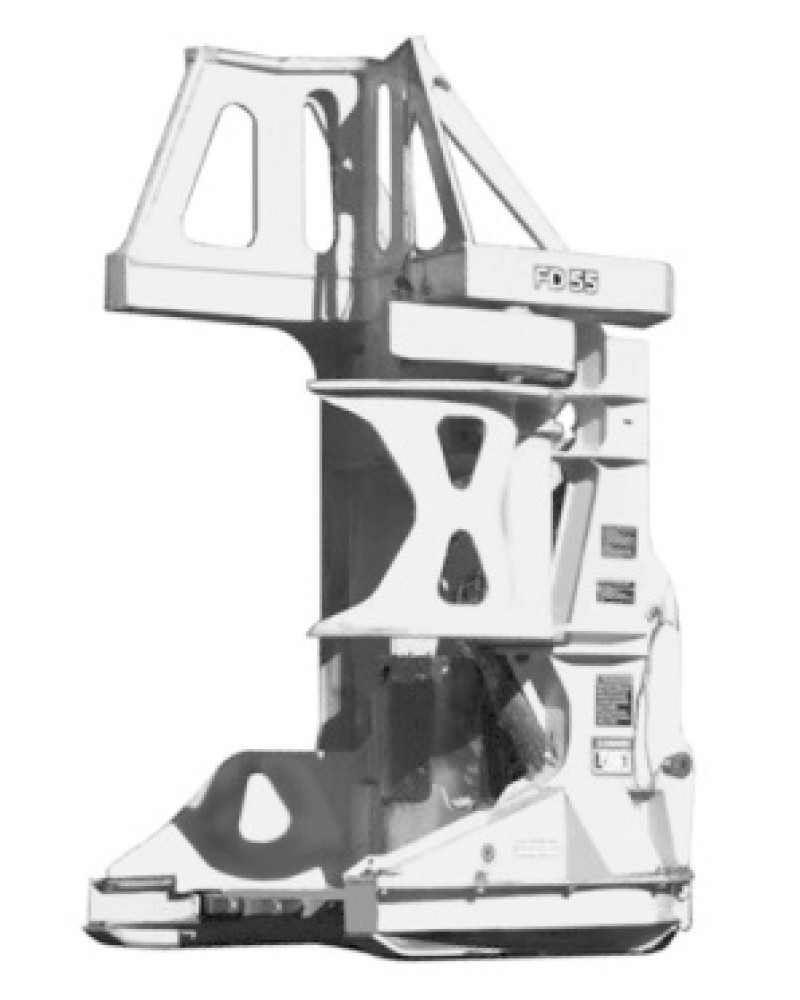

John Deere FD55 Disk Saw Felling Heads Component Technical Manual (CTM10061)

Illustrated factory Component Technical Manual for John Deere Felling Heads Models FD55.

This manual will assist you in diagnosing, assembling, disassembling, and repairing for your felling head.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   FD55

Format: PDF, 132 pages
Language: English
Publication Date: 08 Jun 2020
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety Information
      Torque Values
      Lubricants
   Blades
      FD55 Disk Saw
   Main Frames
      Disk Saw Felling Head Main Frame
      Disk Saw Felling Head Tilt Link
   Moveable Frames
      FD55 Felling Head Arms
   Drives
      Components
      Driveshaft, Bearing & Seal Replacement
   Hydraulic System
      System Hydraulics
      Hydraulic Motor
   Hydraulic Cylinders
      General
      Removal and Installation
   Automatic Controls
      Electrical System
   Operational Checkout Procedure
      Operational Checkout Procedure
   Dealer Fabricated Tools
      Dealer Fabricated Tools
      Section 4401
      Section 4441
      Section 4443
      Section 4450
      Section 4460
      Section 4465
      Section 4600
      Section 9005
      Section 9900
