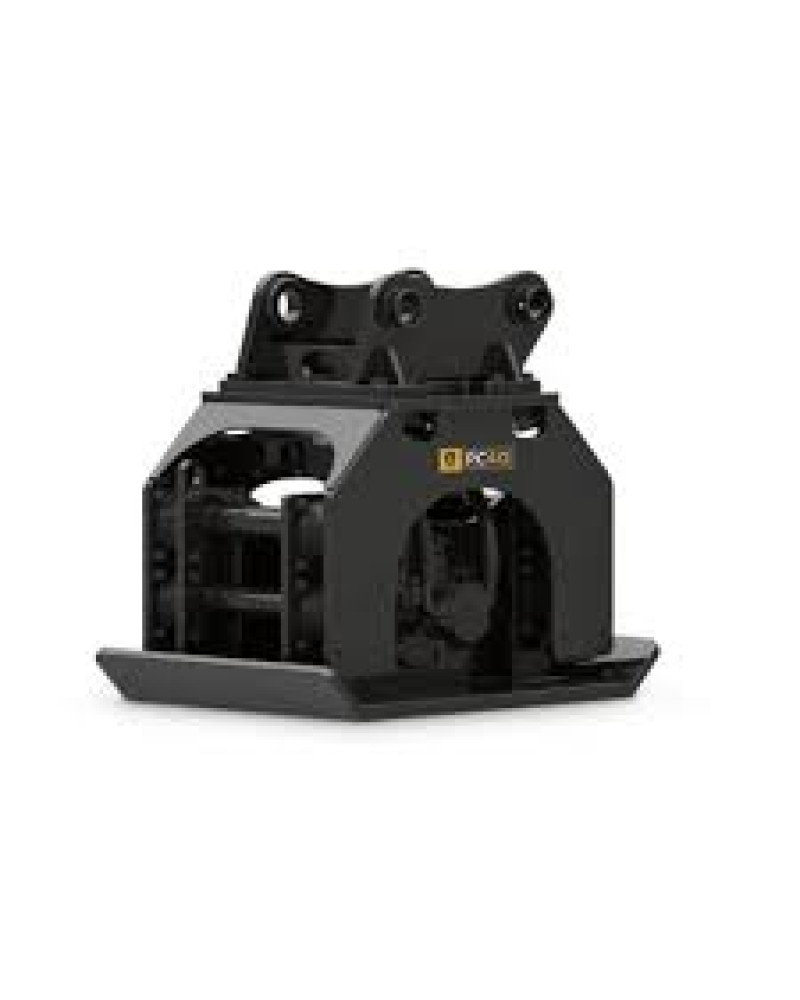

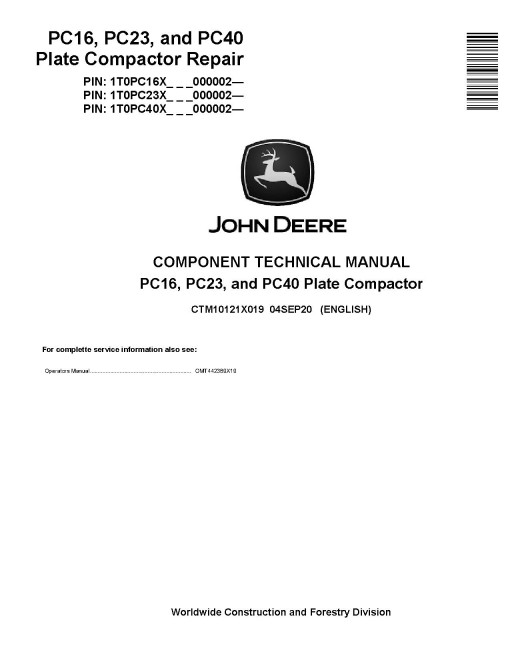

John Deere PC16, PC23 and PC40 Plate Compactors Component Technical Manual (CTM10121X019)

Illustrated factory Component Technical Manual for John Deere Plate Compactors Models PC16, PC23 and PC40.

This manual will assist you in diagnosing, assembling, disassembling, and repairing for your plate compactor.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   PC16 (PIN: 1T0PC16X_ _ _000002-)
   PC23 (PIN: 1T0PC23X_ _ _000002-)
   PC40 (PIN: 1T0PC40X_ _ _000002-)

Format: PDF, 35 pages
Language: English
Publication Date: 04 Sep 2020
Table of Contents:
   Introduction
      Foreword
      Serial Number Listing Information
      John Deere Online Bookstore
   General Information
      Safety
      Specifications and Information
   Plate Compactor
      Hydraulic Tests and Adjustments

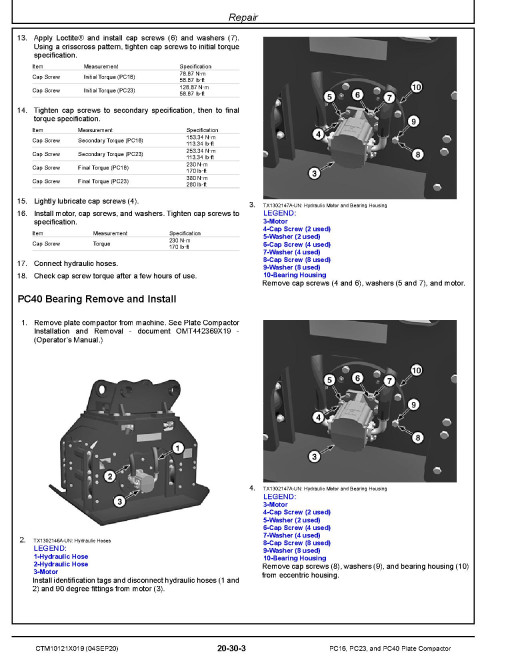

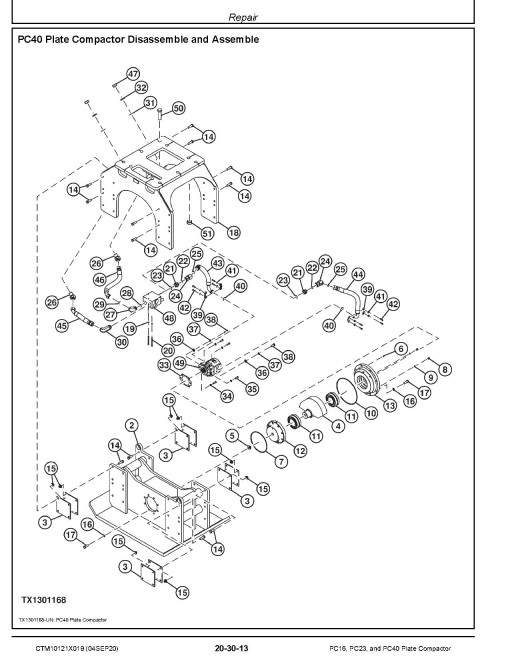

      Repair
