John Deere 100, 120, 125, 185 and 225 Series Hydraulic Cylinders Component Technical Manual (CTM120519)

Illustrated factory Component Technical Manual for John Deere Hydraulic Cylinders Models 100, 120, 125, 185 and 225.

This manual will assist you in diagnosing, assembling, disassembling, and repairing for your hydraulic cylinder.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   100
   120
   125
   185
   225

Format: PDF, 86 pages
Language: English
Publication Date: 21 Sep 2022
Table of Contents:
   Introduction
      Foreword
   Safety
      Safety
   Cylinder Identification
      Cylinder Identification
   Cylinder Disassembly
      100 Series Wire Lock Cylinder
      100/120 Series External Retaining Ring Cylinder
      120 Series Spanner Nut Cylinder
      120 Series Hidden Rod Cylinder
      125 Series Cylinder

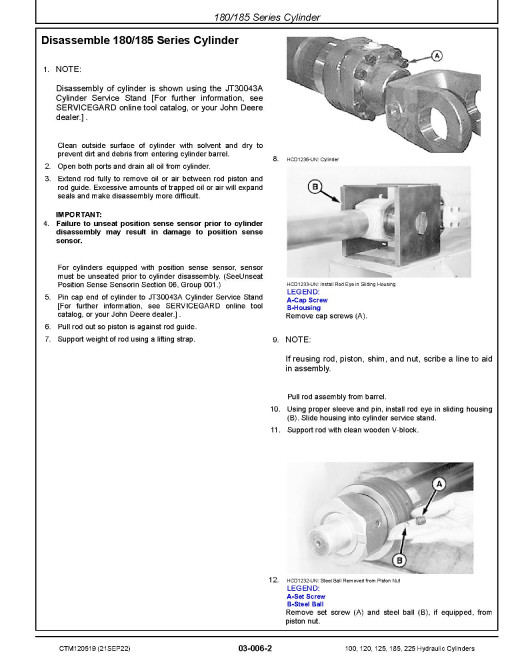

      180/185 Series Cylinder
      185R Series Cylinder
      225 Series Cylinder
      Removal of piston for cylinder with position sensor

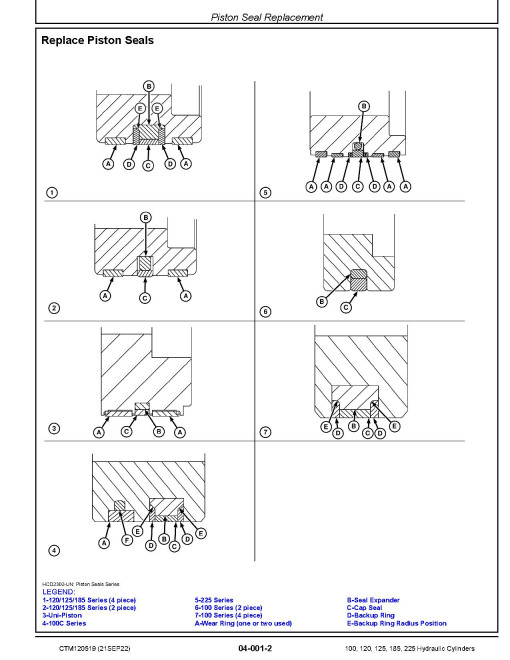

   Piston Seal Replacement
      Piston Seal Replacement
   Rod Guide Seal Replacement
      Rod Guide Seal Replacement
   Position Sense Sensor Remove and Install
      Unseat Position Sense Sensor
      Install Position Sense Sensor in Rod
      Install Position Sense Sensor in Barrel
   Cylinder Assembly
      100 Series Wire Lock Cylinder
      100/120 Series External Retaining Ring Cylinder
      120 Series Spanner Nut Cylinder
      120 Series Hidden Rod Cylinder
      125 Series Cylinder
      180/185 Series Cylinder
      185R Series Cylinder

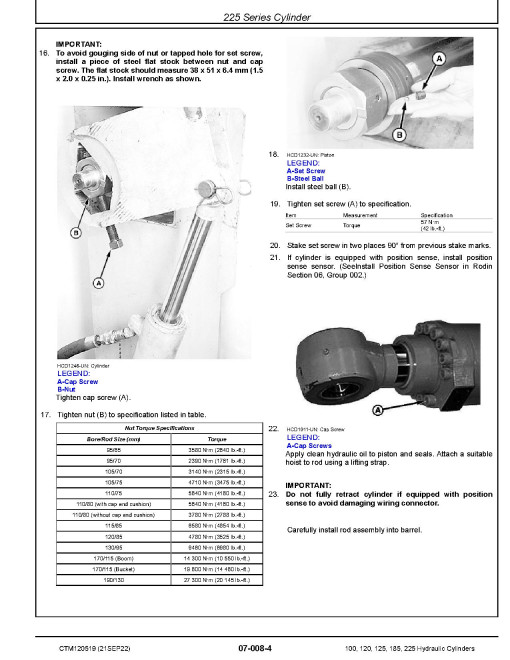

      225 Series Cylinder
