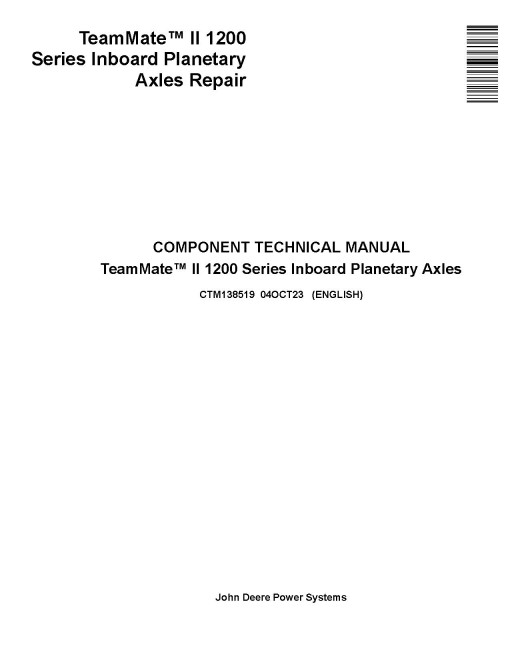

Funk TeamMate II 1200 Series Inboard Panetary Axles Component Technical Manual (CTM138519)

Illustrated factory Component Technical Manual for Funk TeamMate II Inboard Panetary Axles Models 1200 Series.

This manual will assist you in diagnosing, assembling, disassembling, and repairing for your inboard panetary axle.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   TeamMate II 1200 Series

Format: PDF, 182 pages
Language: English
Publication Date: 04 Oct 2023
Table of Contents:
   Introduction
      Foreword
      Trademarks
   General Information
      Safety

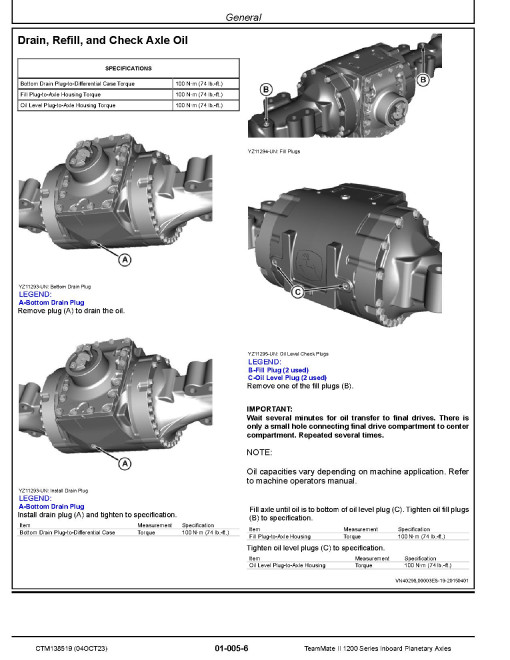

      General
   Repair and Adjustments
      Oscillation Assembly
      Axle Repair Stand

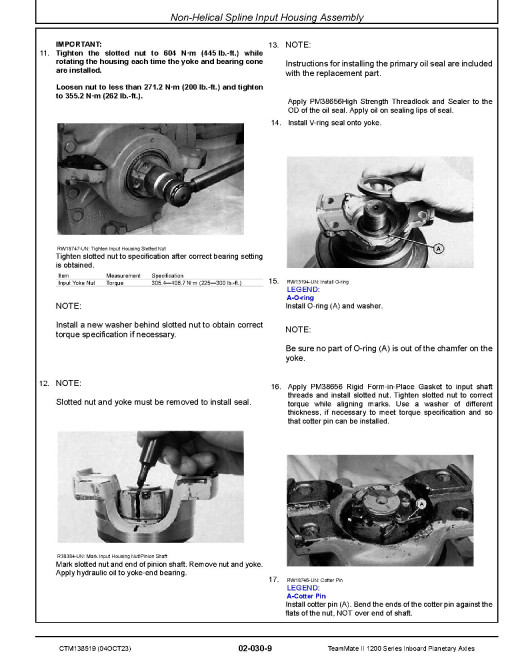

      Non-Helical Spline Input Housing Assembly
      Helical Spline Input Housing Assembly
      Disconnect and Input Housing Cover
      Standard and Extreme Duty Final Drive Assembly
      Planetary Carrier Assembly

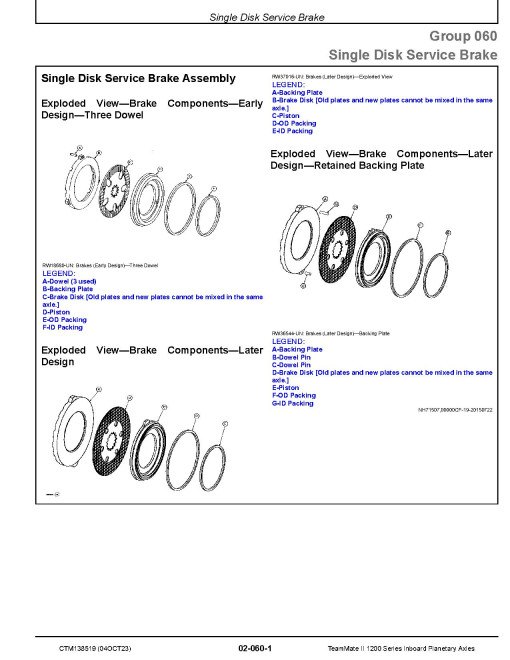

      Single Disk Service Brake
      Parking Brake
      Differential Case Assembly
   Theory of Operation
      Axle Operation
   Diagnostics
      Brake Inspection, Adjustments, Tests, and Bleeding
      Operational Checks
      Differential and Axle Assembly Tests
      Troubleshooting
   Tools and Other Materials
      Special Tools
      Other Materials
   Specifications
      Bolts and Cap Screws Specifications
      Sealants and Adhesives Cross-Reference
