John Deere EMD100-1 Single Speed Electric Motor Drive Component Technical Manual (CTM165719)
Model
CTM165719
SKU
22998
Availability:
In Stock
$19.55
Document Type
Component Technical Manual
Region
WorldWide
Language
English
Type of Equipment
Electric Motor Drive
All the features

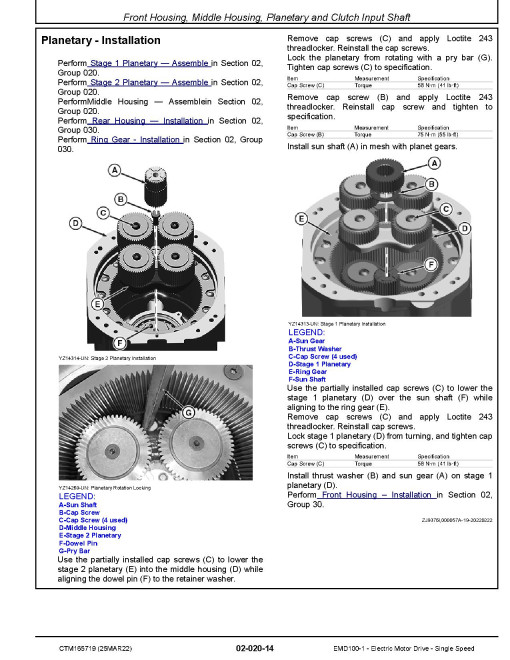

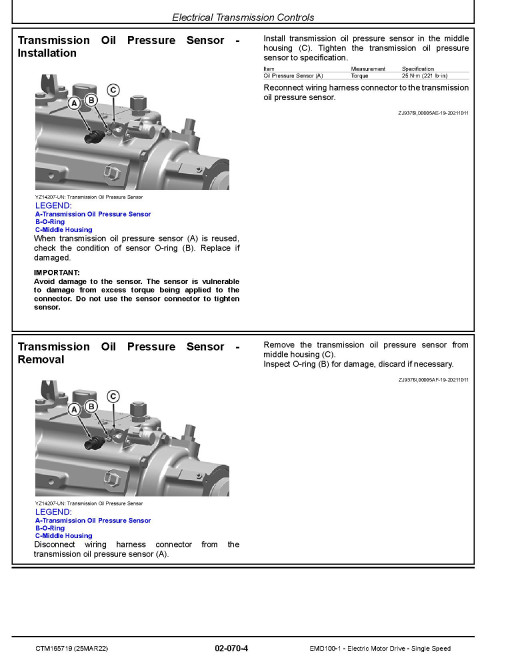

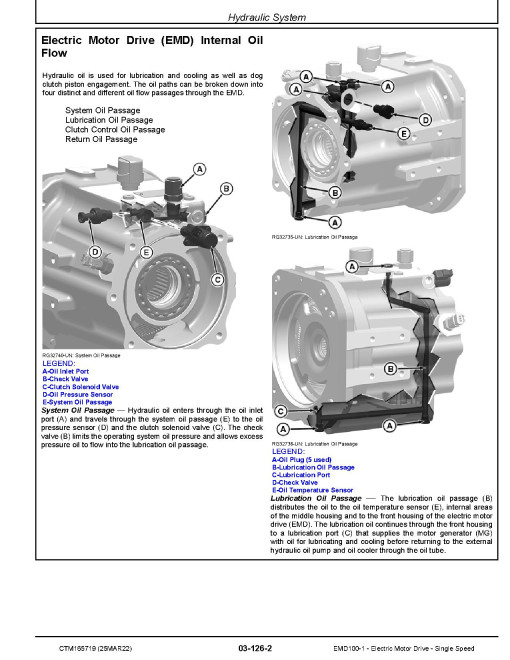

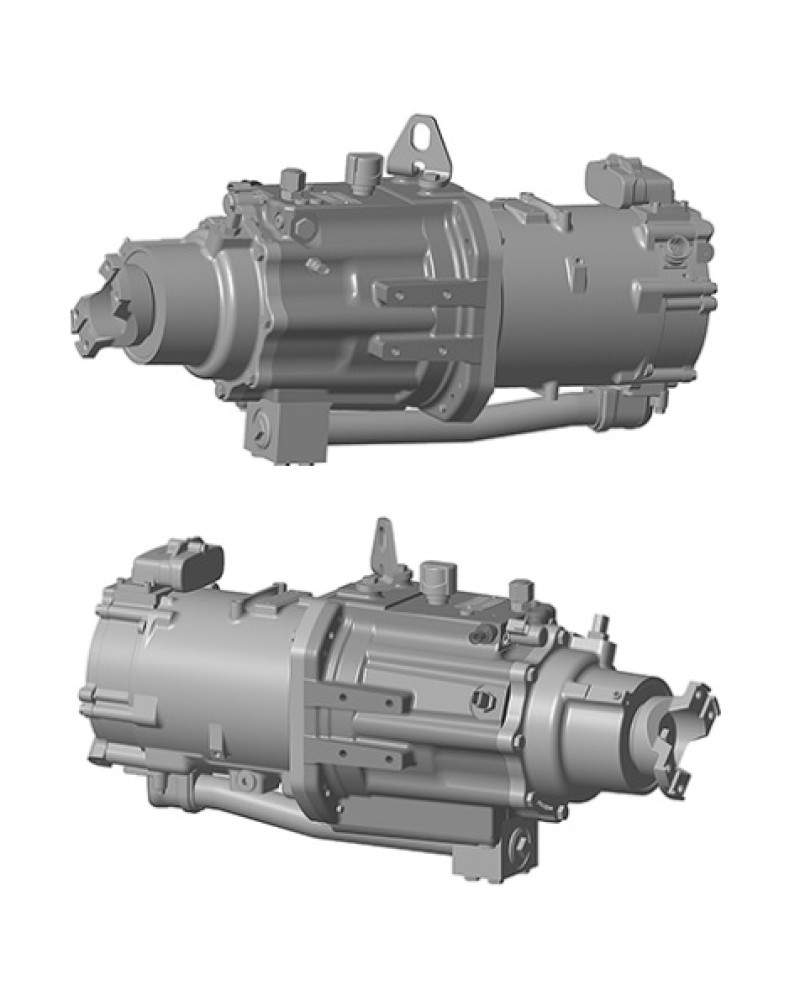

Illustrated factory Component Technical Manual for John Deere Single Speed Electric Motor Drives Models EMD100-1.

This manual will assist you in diagnosing, assembling, disassembling, and repairing for your electric motor drive.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   EMD100-1

Format: PDF, 229 pages
Language: English
Publication Date: 25 Mar 2022
Table of Contents:
   Introduction
      Foreword
      Identification View
      Related Manuals
      Training Information
      Definition of Terms
      Trademarks
   General Information
      Safety
      Electric Motor Drive Identification
      Lubrication and Maintenance
   Repair and Adjustments
      Handling and Lifting Procedures
      Front Housing, Middle Housing, Planetary and Clutch Input Shaft
      Rear Housing and Clutch Output Shaft
      Hydraulics
      Yoke
      Motor Generator (MG)
      Electrical Transmission Controls
      Connector Repair and Adjustment
   Theory of Operation
      Electric Motor Drive (EMD) Operation
      Operation Logic
      Hydraulic System
      Electrical Control System
      Electrical Component Locations
   Diagnostics
      Observable Diagnostics
      Checks, Tests, and Procedures
      Electrical Circuit Checks, Tests, and Procedures
      Diagnostic Instructions and Information
      Diagnostic Trouble Codes
      TCU - Transmission Control Unit Software Addresses
   Special Tools
      Dealer Fabricated Tools
      SERVICEGARD Special Tools
      JDParts Service Tools
   Schematics and Specifications
      Electrical Schematics
      Electric Motor Drive (EMD) Specifications

General

Document Type
Component Technical Manual
Region
WorldWide
Language
English
Type of Equipment
Electric Motor Drive
Reviews: 0
You can leave a review about a product only after you have purchased it. This is how we form an honest rating.

There are no reviews for this product.

Questions: 0

No questions about this product.
