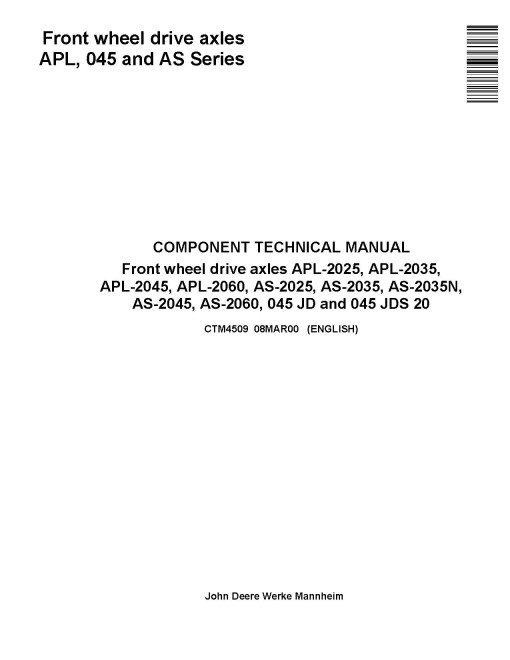

John Deere APL-2025, APL-2035, APL-2045, APL-2060, AS-2025, AS-2035, AS-2045, AS-2060 Front Wheel Drive Axles Technical Manual (CTM4509)

Illustrated factory Component Technical Manual for John Deere Front Wheel Drive Axles Models 045 JD, 045 JDS 20, APL-2025, APL-2035, APL-2045, APL-2060, AS-2025, AS-2035, AS-2035N, AS-2045 and AS-2060.

This manual will assist you in diagnosing, assembling, disassembling, and repairing for your front wheel drive axle.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   045 JD
   045 JDS 20
   APL-2025
   APL-2035
   APL-2045
   APL-2060
   AS-2025
   AS-2035
   AS-2035N
   AS-2045
   AS-2060

Format: PDF, 157 pages
Language: English
Publication Date: 08 Mar 2000
Table of Contents:
   Introduction
      Foreword
      General Information
      APL Series Axles
      045 Series Axles
      AS Series Axles
      Safety Information

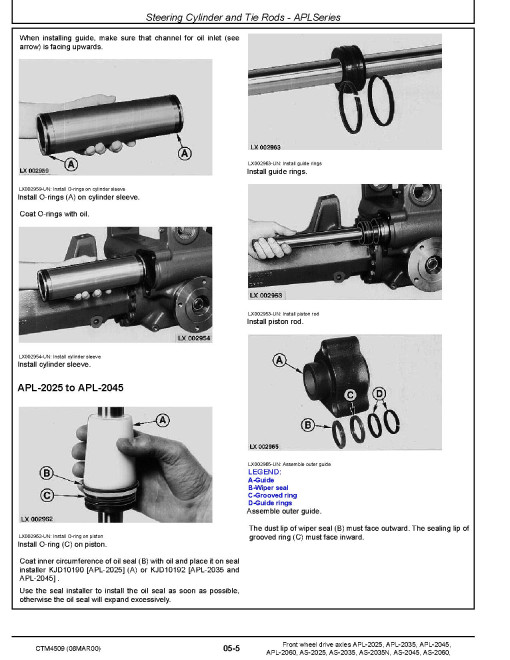

      Steering Cylinder and Tie Rods - APLSeries
      Wheel Hub With Planetary Drive - APLSeries

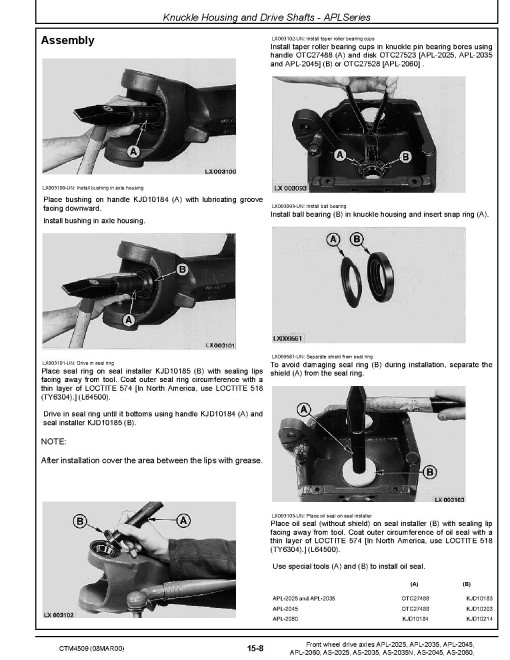

      Knuckle Housing and Drive Shafts - APLSeries

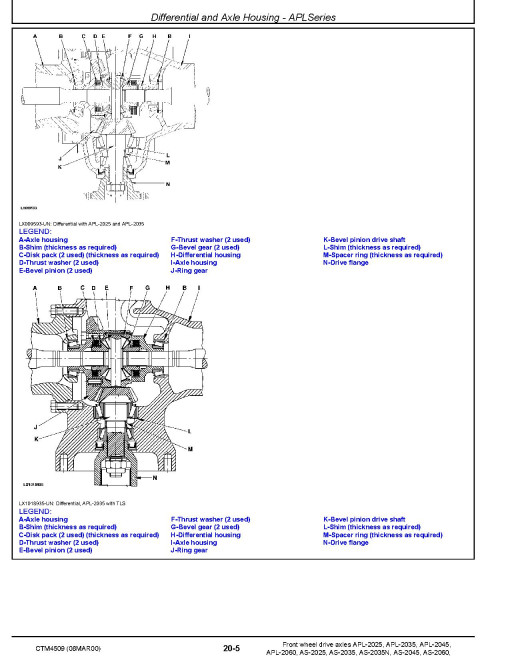

      Differential and Axle Housing - APLSeries
      Steering Cylinder and Tie Rods - 045Series
      Wheel Hub With Planetary Drive - 045Series
      Knuckle Housing and Drive Shafts - 045Series
      Differential and Axle Housing - 045Series
      450945 - Steering Cylinder and Tie Rods - ASSeries
      450950 - Wheel Hub With Planetary Drive - ASSeries
      450955 - Knuckle Housing and Drive Shafts - ASSeries
