John Deere 00.16, 20.09, 20.09C, 20.11, 20.16, G20.09 and G20.16 Front Wheel Drive Axles Technical Manual (CTM4870)

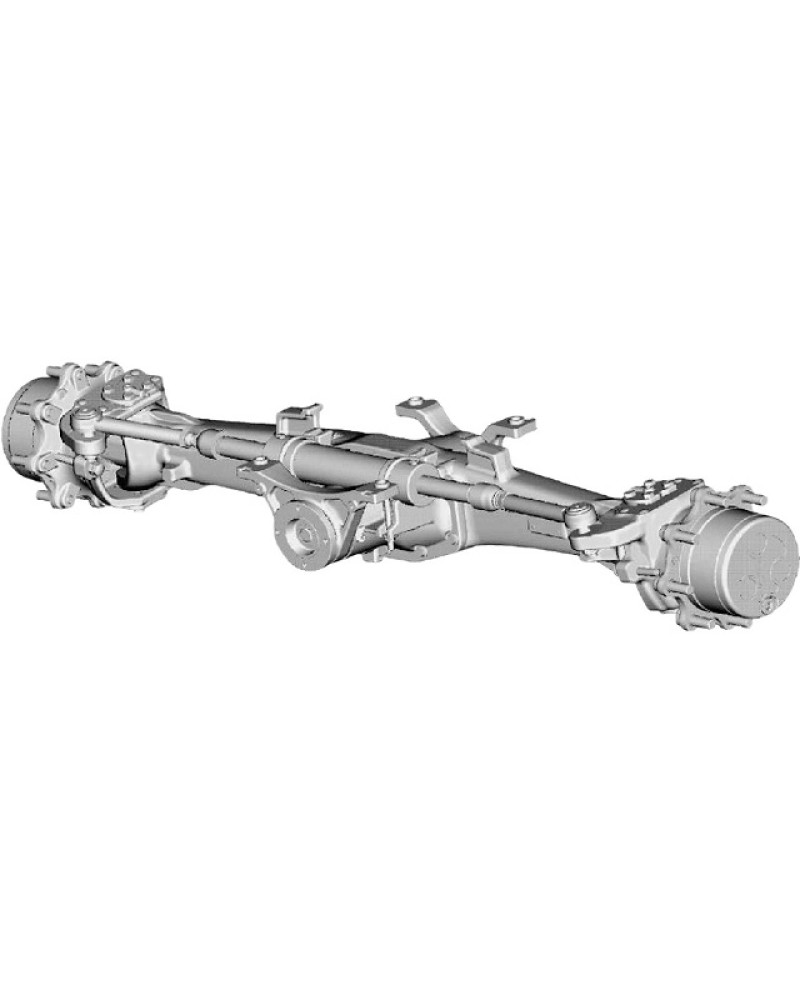

Illustrated factory Component Technical Manual for John Deere Front Wheel Drive Axles Models 00.16, 20.09, 20.09C, 20.11, 20.16, G20.09 and G20.16.

This manual will assist you in diagnosing, assembling, disassembling, and repairing for your front wheel drive axle.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   00.16
   20.09
   20.09C
   20.11
   20.16
   G20.09
   G20.16

Format: PDF, 167 pages
Language: English
Publication Date: 10 Mar 2010
Table of Contents:
   Introduction
      General Information
      Front-Wheel Drive Axle 00.16
      20.09C Front Wheel Drive Axle
      20.09 Front Wheel Drive Axle
      20.11 and 20.16 Front Wheel Drive Axles
      G20.09 and G20.16 Front-Wheel Drive Axles
   Front-Wheel Drive Axles
      Safety Information
      General Repair Information
      Steering Cylinder and Tie Rods

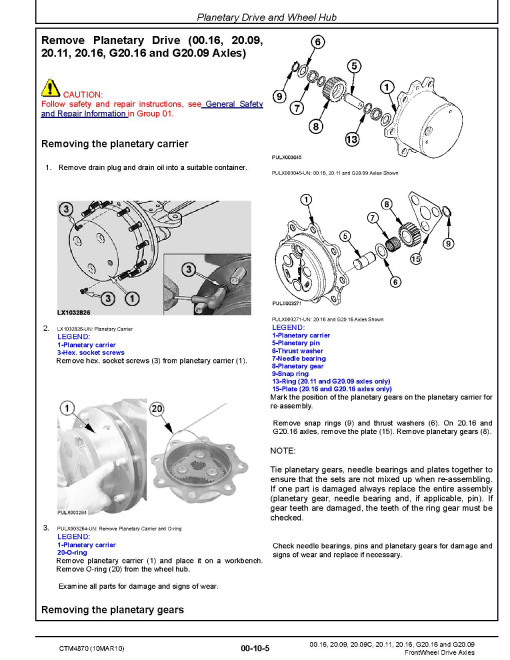

      Planetary Drive and Wheel Hub
      Knuckle Housing and Drive Shafts

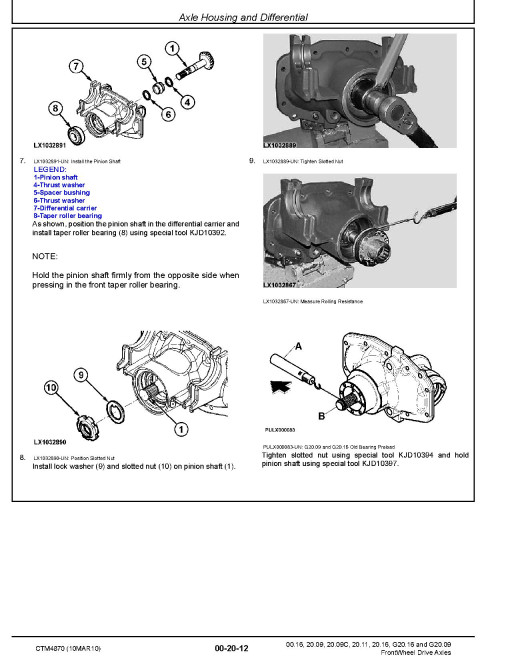

      Axle Housing and Differential

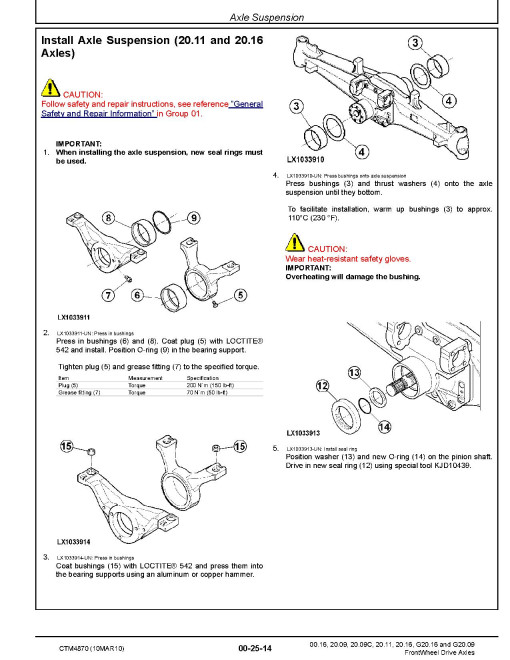

      Axle Suspension
      Description and Theory of Operation
      Observable Symptoms
