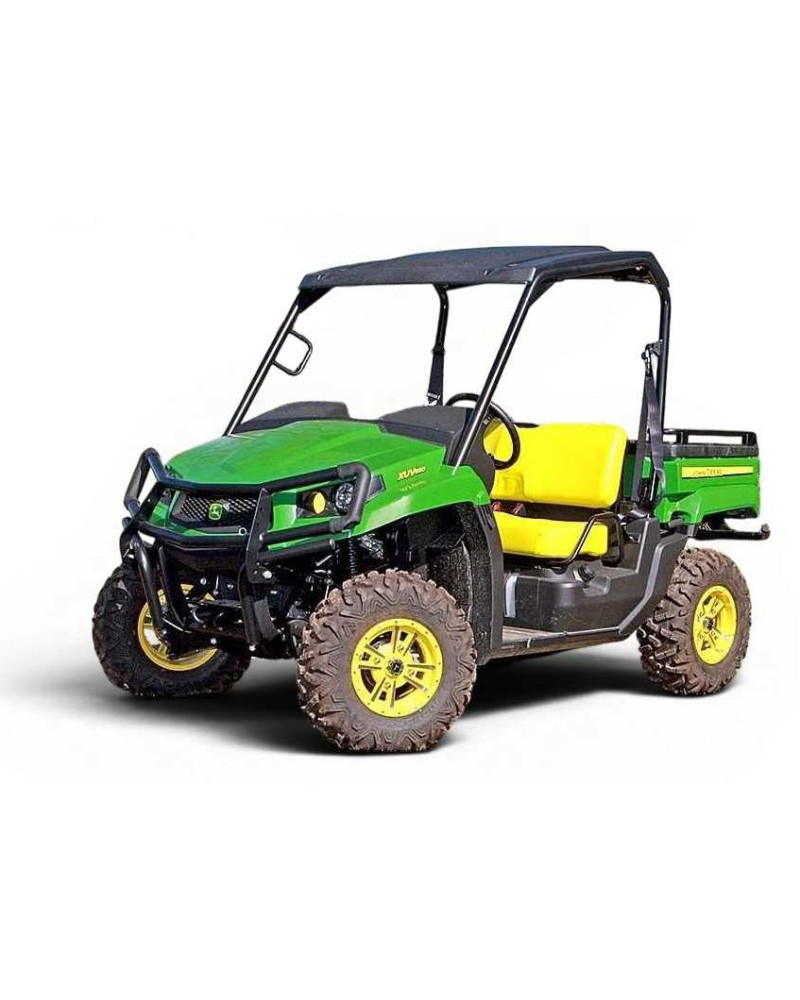

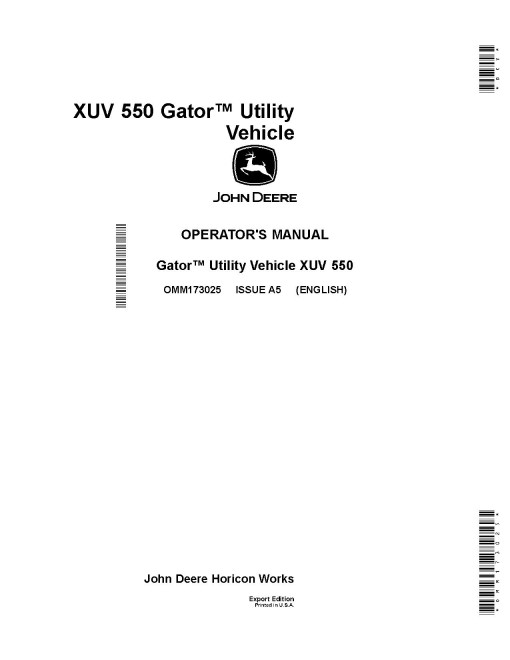

John Deere XUV550 Gator Utility Vehicles (SN: 040001 - 050000) (Export Edition) Operators Manual (OMM173025)

Illustrated factory Operators Manual for John Deere Gator Utility Vehicles Models XUV550.

This manual will assist you in operating, and maintaining for your gator utility vehicle or gator utility vehicle.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (Export Edition):
   XUV550 (SN: 040001-050000)

Format: PDF, 84 pages
Language: English
Publication Date: 01 Jan 2015
Table of Contents:
   Introduction
   Product Identification
   Safety Labels
   Safety
   Assembly
      Parking Safely
      Charge and Connect Battery
      Testing Start and Brake Safety Systems
      Check Tire Pressure
      Check Engine Oil Level
      Check Transaxle Oil Level
      Check All Lights
      Check Wheel Bolt Torque
      Burnish Brakes

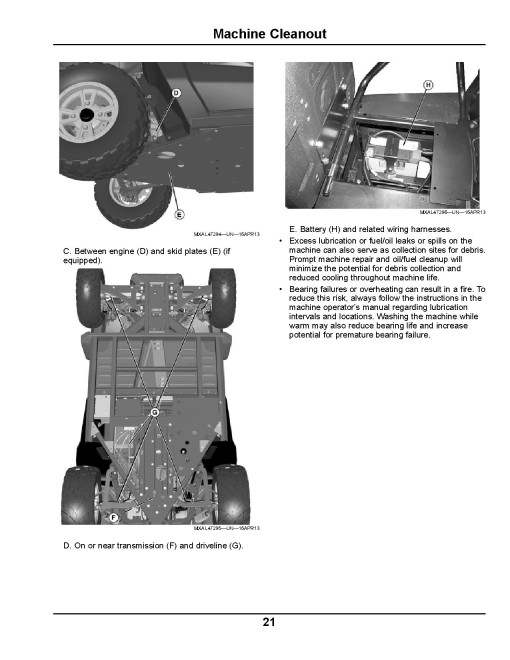

   Machine Cleanout
      Prevent Fires
   Operating Controls
      Operator Station Controls
   Operating
      Daily Operating Checklist
      Avoid Damage to Plastic and Painted Surfaces
      Using Nets
      Using Hand Holds
      Adjusting Bucket Seat
      Using Bench Seat
      Using Seat Belt
      Testing Safety Systems
      Testing the Safety Start System
      Using Park Brake
      Using Travel Controls
      Using Ignition Key Switch
      Using Headlights
      Using Instrument Panel
      Using Accessory Outlet
      Using Turn Signal Switch (If Equipped)
      Using Hazard Lights (If Equipped)
      Using Storage Tray
      Starting the Engine
      Stopping Engine
      Emergency Stopping
      Using Rear Lock
      Using Four Wheel Drive
      Using the Cargo Box
      Determining Vehicle Load Capacity
      Loading the Cargo Box
      Emptying Cargo Box
      Towing Loads
      Using Correct Tires and Inflation
      Tire Chains
      Transporting Machine
   Optional Attachments and Kits
      Attachments and Kits
      Using Quick Clamps
      Light Kits
      Backup Alarm
      Horn
      Occupant Protective Structure (OPS) Rear Screen
      Front Receiver Hitch
      Tire Rack
   Replacement Parts
      Service Literature
      Parts
      Part Numbers
   Service Intervals
      Servicing Your Machine
      Break In
      Every 50 Hours or Annually
      Every 100 Hours or Annually (whichever comes first)
      Every 200 Hours or Annually (whichever comes first)
      Every 400 Hours or 24 Months (whichever comes first)
      Every 800 Hours or 24 Months (whichever comes first)
      Every 1000 Hours or 24 Months (whichever comes first)

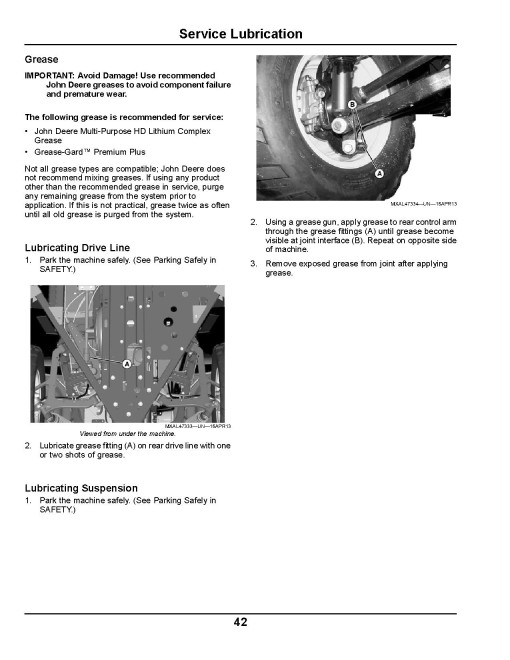

   Service Lubrication
      Grease
      Lubricating Drive Line
      Lubricating Suspension
   Service Engine
      Avoid Fumes
      Engine Oil
      Checking Engine Oil Level
      Changing Engine Oil and Filter
      Servicing Air Intake
      Cleaning the Engine
      Checking Spark Plug
      Replacing Fuel Filter
      Checking Spark Arrestor
   Service Transmission
      Transaxle Oil
      4WD Front Differential Oil
      Checking 4WD Front Differential Oil Level
      Changing 4WD Front Differential Oil
      Checking Transaxle Oil Level
      Changing Transaxle Oil
      Inspecting Driveline CV Boots
      Inspecting Steering Tie Rod Boots
      Servicing Drive Belt
      Checking Rear Lock Engagement
      Checking Shift Cable Adjustment
   Service Steering and Brakes
      Brake Fluid
      Checking Brake Fluid Level
      Checking Brake Pads
      Adjusting Park Brake
   Service Electrical
      Service the Battery Safely
      Checking the Battery (Sealed Batteries)
      Removing and Installing Battery
      Cleaning Battery and Terminals
      Using Booster Battery
      Replacing Headlight Bulb
      Checking and Replacing Fuses
   Service Miscellaneous
      Using Proper Fuel and Stabilizer
      Filling Fuel Tank

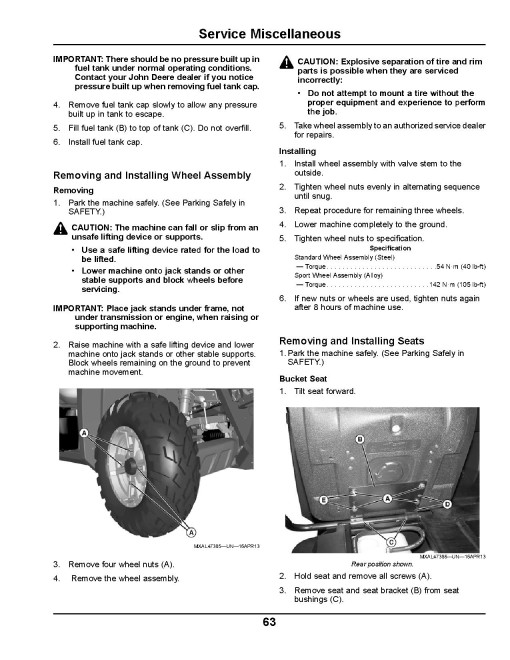

      Removing and Installing Wheel Assembly
      Removing and Installing Seats
      Opening and Closing Hood
      Inspecting Seat Belt
      Inspecting Nets or Doors
      Servicing Nets
      Cleaning and Repairing Cargo Box
      Removing and Installing Cargo Box
      Checking and Adjusting Toe-In
      Adjusting Suspension (Standard Shocks)
      Cleaning Vehicle Surfaces
      Cleaning and Repairing Metal Surfaces
      Cleaning Plastic Hood and Body Panel Surfaces
      Checking Windshield or Windscreen Regularly
   Troubleshooting
      Using Troubleshooting Chart
      Engine
      Electrical
      Brakes
      Cargo Box
   Storage
      Storing Safety
      Preparing Machine for Storage
      Preparing Fuel and Engine For Storage
      Removing Machine From Storage
   Specifications
      Engine Specifications
      Drive Train
      Electrical System
      Fuel System
      Fluid Capacities
      Steering and Brakes
      Tires
      Dimensions
      Weights and Capacities
      Recommended Lubricants
      Fast Idle Engine Speed
      Sound Measurements
      Vibration Measurements - Declared vibration emission value in accordance with EN 12096
   Declaration of Conformity
      EC Declaration of Conformity
   Service Record
      Record Service Dates
   Index
