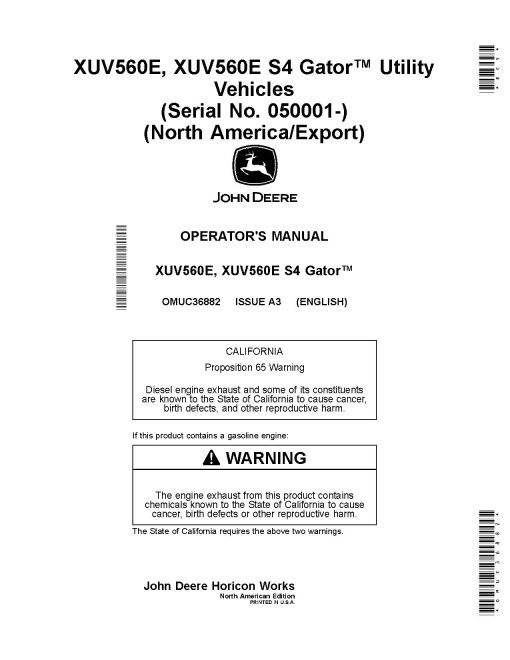

John Deere XUV560E and XUV560E S4 Gator Utility Vehicles (SN:050001-080000) (North America,Export) Operators Manual (OMUC36882)

Illustrated factory Operators Manual for John Deere Gator Utility Vehicles Models XUV560E and XUV560E S4.

This manual will assist you in operating, and maintaining for your gator utility vehicle or gator utility vehicle.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (North America, Export):
   XUV560E (SN: 050001-080000)
   XUV560E S4 (SN: 050001-080000)

Format: PDF, 96 pages
Language: English
Publication Date: 30 Jan 2023
Table of Contents:
   Introduction
   Product Identification
   Safety Labels with Text
   Safety Labels without Text
   Safety
   Machine Cleanout
      General Cleaning Guidelines
      Cleanout Areas
   Operating Controls

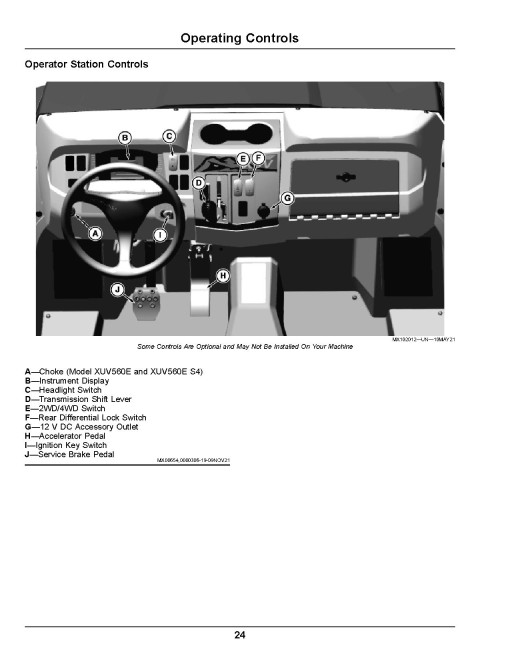

      Operator Station Controls
   Operating
      Daily Operating Checklist
      Avoid Damage to Plastic and Painted Surfaces
      Checking Fuel Level
      Using Nets
      Using Hand Holds
      Using Seat Belt
      Using Ignition Key Switch
      Starting the Engine
      Stopping Engine
      Using Instrument Display
      Testing Safety Systems
      Testing the Safety Start System
      Testing the Park Interlock System
      Using Travel Controls
      Emergency Stopping
      Using Rear Differential Lock
      Using Four Wheel Drive
      Using Headlights and Taillights
      Opening and Closing Hood
      Using Storage Areas
      Using Accessory Outlet
      Using Correct Tires and Inflation
      Determining Vehicle Load Capacity
      Using Rear Fold Down Cargo Rack (S4 Models)
      Using the Cargo Box
      Loading the Cargo Box
      Emptying Cargo Box
      Using a Trailer
      Towing Loads
      Tire Chains
      Using Park Lock Override
      Using Front Receiver Hitch (If Equipped)
      Transporting Machine
   Service Intervals
      Servicing Your Machine
      Severe Duty Service
      Service Intervals
   Service Lubrication
      Grease
      Lubricating Drive Line
      Lubricating Suspension
      Lubricating Cargo Box Strikers
   Service Engine
      Emissions Service Information
      Avoid Fumes
      Gasoline Engine Oil
      Checking Engine Oil Level
      Changing Engine Oil and Filter
      Servicing Air Intake
      Checking Spark Plug
      Replacing Fuel Filter

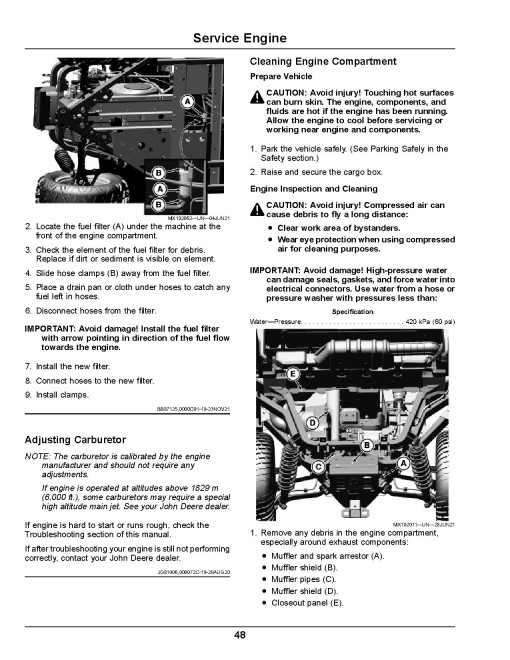

      Adjusting Carburetor
      Cleaning Engine Compartment
      Servicing Spark Arrestor
   Service Transmission
      Transmission and 4WD Front Differential Oil
      Checking 4WD Front Differential Oil Level
      Changing 4WD Front Differential Oil
      Checking Transmission Oil Level
      Changing Transmission Oil
      Inspecting Driveline CV Boots
      Servicing Clutch and Drive Belt
   Service Steering & Brakes
      Checking and Adjusting Toe-In
      Adjusting Suspension (Standard Shocks)
      Inspecting Steering Tie Rod Boots
      Brake Fluid
      Prepare Vehicle
      Checking Brake Fluid Level
      Checking Brake Lines
      Bleeding Brake System
      Checking Brake Pads
   Service Electrical
      Electrical
      Service the Battery Safely
      Checking the Battery (Sealed Batteries)
      Removing and Installing Battery
      Cleaning Battery and Terminals
      Using Booster Battery
      Replacing Headlight
      Replacing Tail Light Bulb (If Equipped)
      Checking and Replacing Fuses
   Service Miscellaneous
      Gasoline Fuel for 4-Cycle Engines
      Filling Fuel Tank
      Lifting Machine
      Removing and Installing Wheel Assembly
      Removing and Installing Seats
      Removing and Installing Side Panels
      Removing and Installing Storage Bin
      Removing the Tailgate
      Removing and Installing Cargo Box
      Adjusting Cargo Box Latch Brackets
      Inspecting and Cleaning Seat Belts
      Inspecting and Cleaning Nets or Doors
      Cleaning Back-Up Alarm (If Equipped)
      Cleaning Vehicle Surfaces

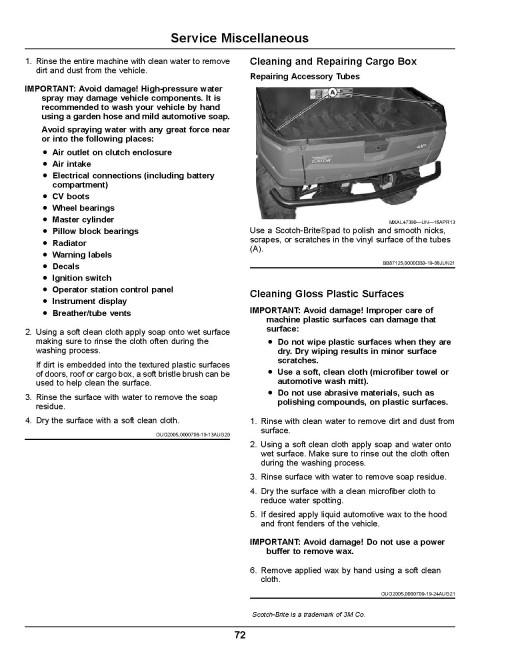

      Cleaning and Repairing Cargo Box
      Cleaning Gloss Plastic Surfaces
      Cleaning and Repairing Metal Surfaces
      Using Quick Clamps
   Troubleshooting
      Using Troubleshooting Chart
      Engine
      Electrical
      Brakes
      Cargo Box
   Storage
      Storing Safety
      Preparing Machine for Storage
      Preparing Fuel and Engine For Storage
      Removing Machine From Storage
   Specifications
      Engine
      Drivetrain
      Electrical System
      Fuel System
      Steering and Brakes
      Tires
      Capacities
      Dimensions (XUV560)
      Dimensions (XUV560 S4)
      Weights (XUV560)
      Weights (XUV560 S4)
      Recommended Lubricants
      Sound Measurements
   Warranty
      Product Warranty
      EMISSION-RELATED WARRANTY STATEMENT OFF-ROAD UTILITY VEHICLE OVER 25 MPH
      EMISSION-RELATED WARRANTY STATEMENT OFF-ROAD UTILITY VEHICLE OVER 25 MPH
      Tire Warranty
      Limited Battery Warranty For Factory Installed Batteries
   John Deere Quality Statement
      John Deere Quality
      Transport Canada
   Service Record
      Record Service Dates
   Index
