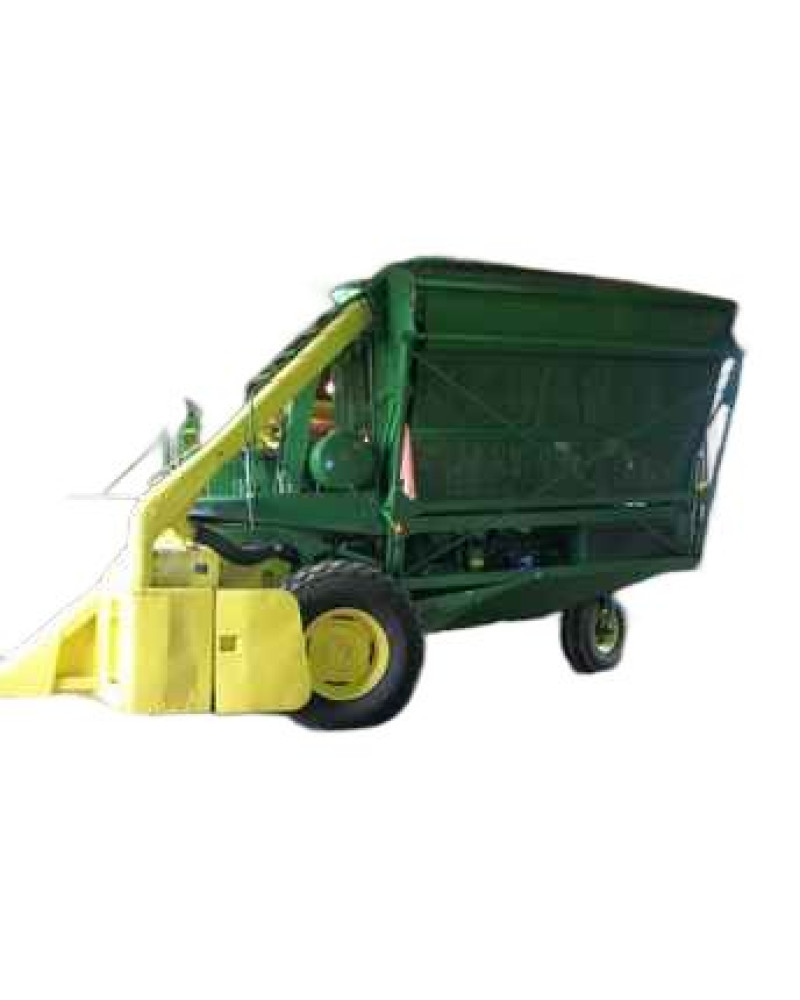

John Deere 699 Cotton Pickers Technical Manual (TM1054)

Illustrated factory Technical Manual for John Deere Cotton Pickers Models 699.

This manual will assist you in diagnosing, and repairing for your cotton picker.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   699

Format: PDF, 410 pages
Language: English
Publication Date: 01 Dec 1973
Table of Contents:
   GENERAL
      Specifications
      Tune-Up and Adjustment
      Lubrication
   ENGINE
      General Information, Diagnosis and Removal

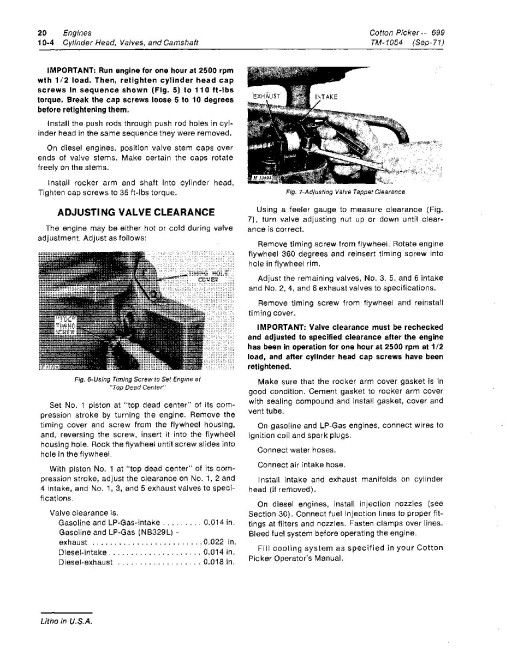

      Cylinder Head, Valves, and Camshaft
      Cylinder Block, Liners , Pistons, and Rods
      Crankshaft, Main Bearings, and Flywheel
      Lubrication System
      Cooling System
      Governor and Speed Control
      Specifications, Special Tools , and Torques
   FUEL SYSTEMS
      Diagnosing Malfunctions
      Diesel Fuel System
      Gasoline and LP-Gas Fuel Systems
      Specifications, Special Tools, and Torques
   ELECTRICAL SYSTEM
      General Information and Wiring Diagrams
      Charging Circuit
      Starting Circuit
      Ignition Circuit
      Specifications, Special Tools, and Torques
   POWER TRAIN
      Clutch and Main Drive Shaft (Std.Trans.)
      Standard and Hydrostatic Transmissions
      Differential
      Auxiliary Gear Housing
      Final Drives

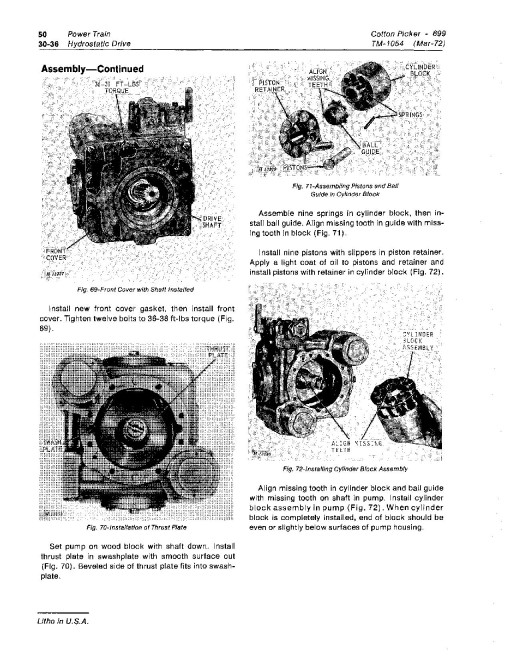

      Hydrostatic Drive
      Specifications, Special Tools, and Torques
   STEERING AND BRAKES
      Steering
      Brakes
      Specifications and Torques
   HYDRAULIC SYSTEM
      General Information, Diagnosis, and Tests
      Hydraulic Pump
      Hydraulic Valve
      Hydraulic Cylinders
      Steering
      Automatic Height Control
      Specifications, Special Tools, and Torques
   PICKING UNITS, WATER SYSTEM, AND AIR SYSTEM
      Picking Units
      Air System

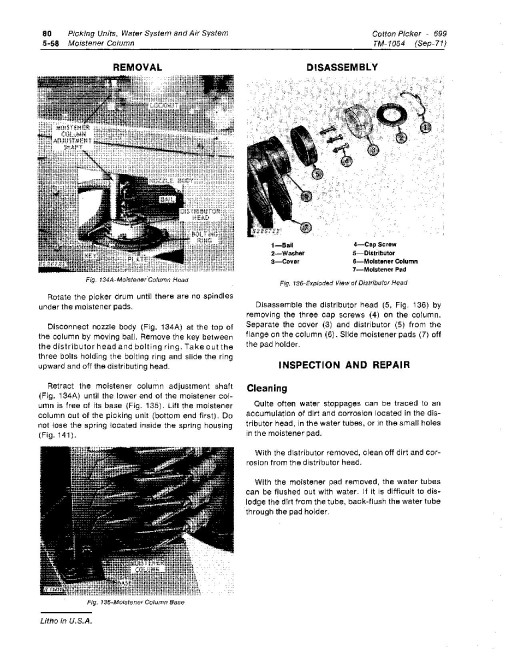

      Water System
      Specifications, Special Tools, and Torques
   OPERATOR’ S CAB
      Pressurizer System
      Air Conditioning System
      Heating System
      Specifications, Torque and Special Tools
