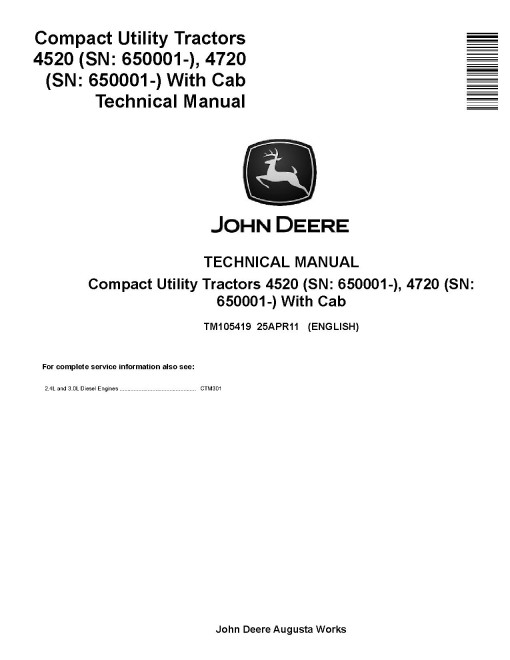

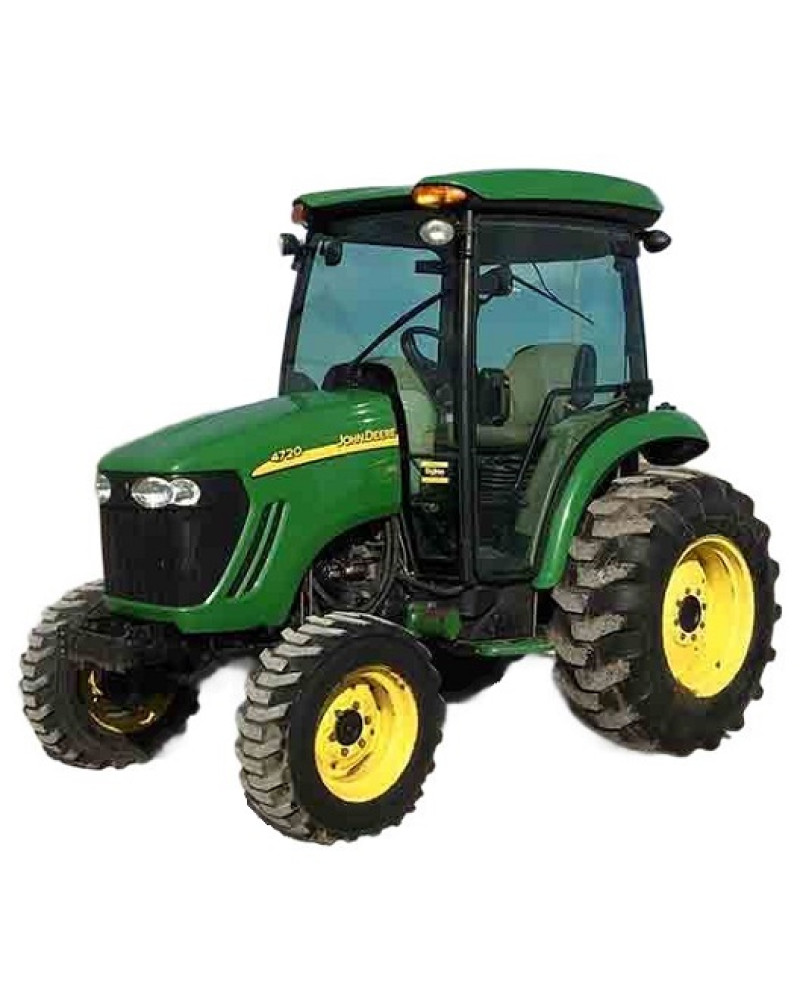

John Deere 4520 and 4720 Compact Utility Tractors with Cab (SN. from 650001) Technical Manual (TM105419)

Illustrated factory Technical Manual for John Deere Compact Utility Tractors Models 4520 and 4720.

This manual will assist you in diagnosing, and repairing for your compact utility tractor.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   4520 (SN: 650001-)
   4720 (SN: 650001-)

Format: PDF, 845 pages
Language: English
Publication Date: 25 Apr 2011
Table of Contents:
   Introduction
      Foreword
   Safety
      Safety
   Specifications and Information
      General Specifications
      Fuel and Lubricants
      Serial Number Locations
   Engine
      Specifications

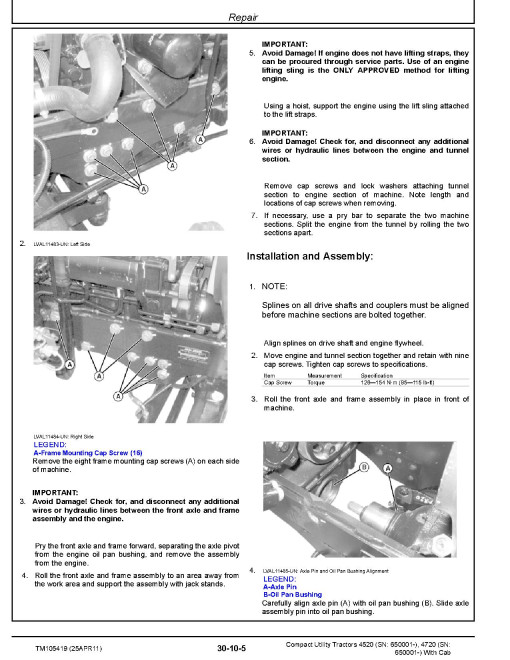

      Repair
   Electrical - NA
      General Information
      Specifications
      Component Location
      Schematics and Harnesses
      Operation and Diagnostics
      Tests and Adjustments
      Service Codes
      Electronic Controllers
      Operation and Diagnostics - DTCs (TCU)
      Operation and Diagnostics - DTCs (ICC)
   Electrical - EEC
      European Electrical Section
      Specifications
      Component Location
      EEC Schematics and Harnesses
      Operation and Diagnostics
      Service Codes
      Electronic Controllers
   Power Train - Hydrostatic
      Specifications
      Component Location
      Schematics

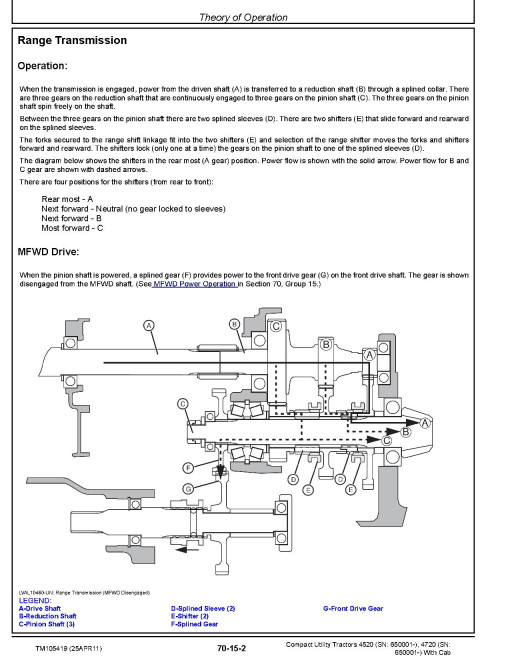

      Theory of Operation
      Diagnostics
      Tests and Adjustments
      Repair
   Power Train - Final Drive
      Specifications
      Component Location
      Theory of Operation
      Diagnostics
      Tests and Adjustments
      Repair
      PTO Theory of Operation

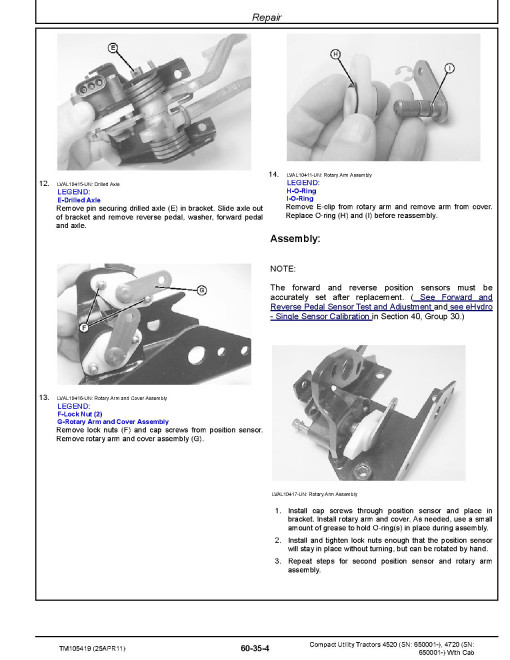

      PTO Repair
   Hydraulics
      Specifications
      Component Location
      Schematics & Harnesses
      Theory of Operation
      Diagnostics
      Tests and Adjustments
      Repair
   Steering
      Specifications
      Component Location
      Theory of Operation
      Diagnostics
      Tests and Adjustments
      Repair
   Brakes
      Specifications
      Component Location
      Theory of Operation
      Diagnostics
      Tests and Adjustments
      Repair
   HVAC
      Specifications
      Tools and Materials
      General Information
      Tests and Adjustments
   Miscellaneous
      Specifications
      Tools and Materials
      Tests and Adjustments
      Repair
