John Deere 100K Synchronous Thinners Technical Manual (TM1074)

Illustrated factory Technical Manual for John Deere Synchronous Thinners Models 100K.

This manual will assist you in diagnosing, and repairing for your synchronous thinner.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   100K

Format: PDF, 94 pages
Language: English
Publication Date: 01 Aug 1972
Table of Contents:
   INTRODUCTION
   GENERAL

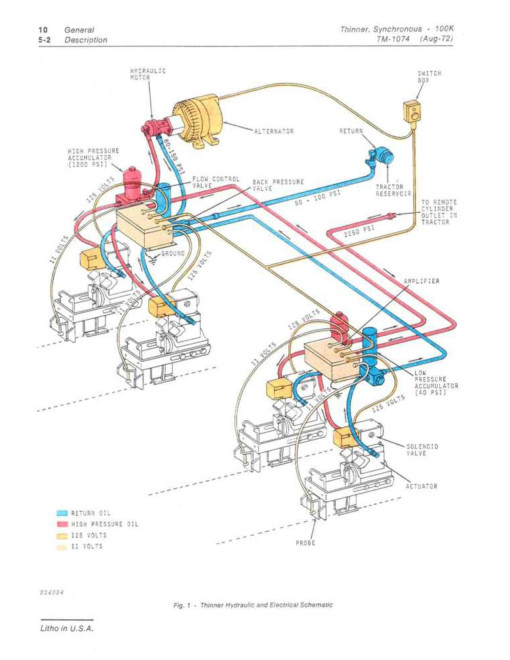

      Description
      Specifications
      Lubrication
      Diagnosing Malfunctions
   ACTUATOR AND SOLENOID VALVE

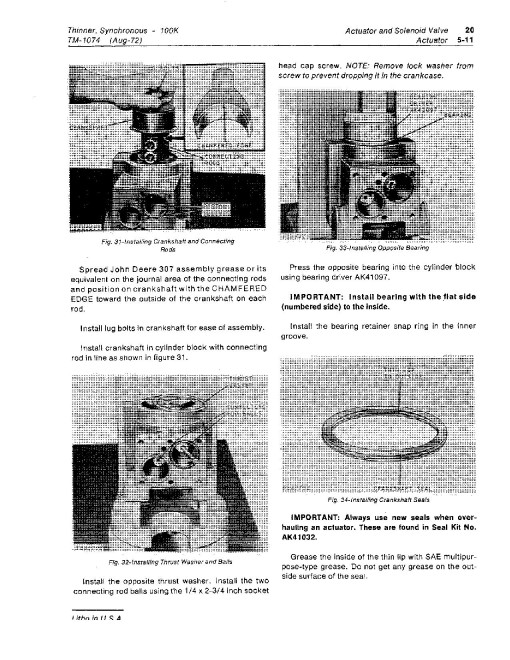

      Actuator
      Solenoid Valve
      Specifications, Torque Values, and Special Tools
   HYDRAULIC SYSTEM
      General Information, Diagnosis, and Tests
      Hydraulic Motor
      Accumulators
      Hydraulic Hoses, Connections, and Valves
      Specifications and Special Tools
   ELECTRICAL SYSTEM
      General Information, Diagnosis, and Tests

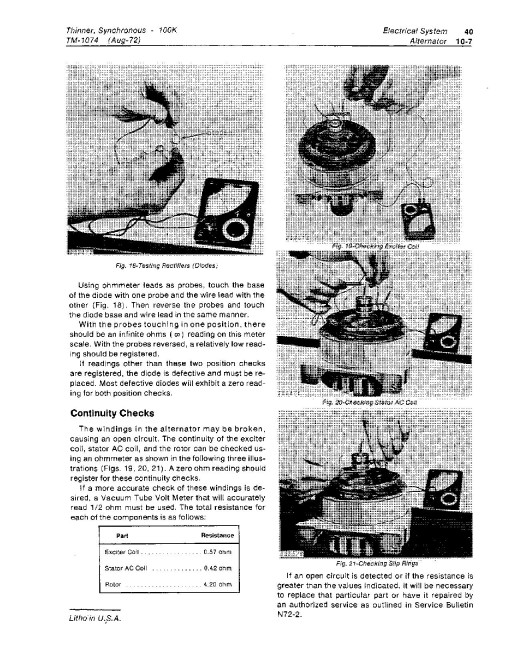

      Alternator
      Amplifier and Probe Wires
      Switch
      Specifications and Special Tools
   GAUGING SYSTEM
      General Information and Diagnosing Malfunctions
      Rig Hangers, Cone Guide Wheel, Rolling Coulter, Gauge Wheel and Adjustments
