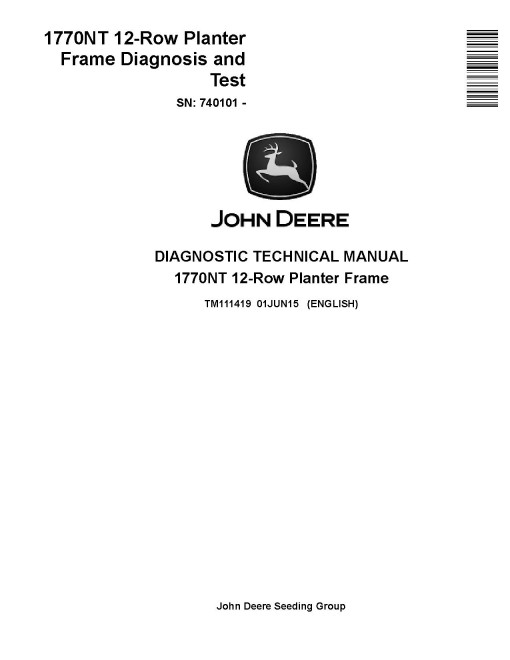

John Deere 12 Row 1770NT (SN. from 740101) Planters Diagnostic Manual (TM111419)

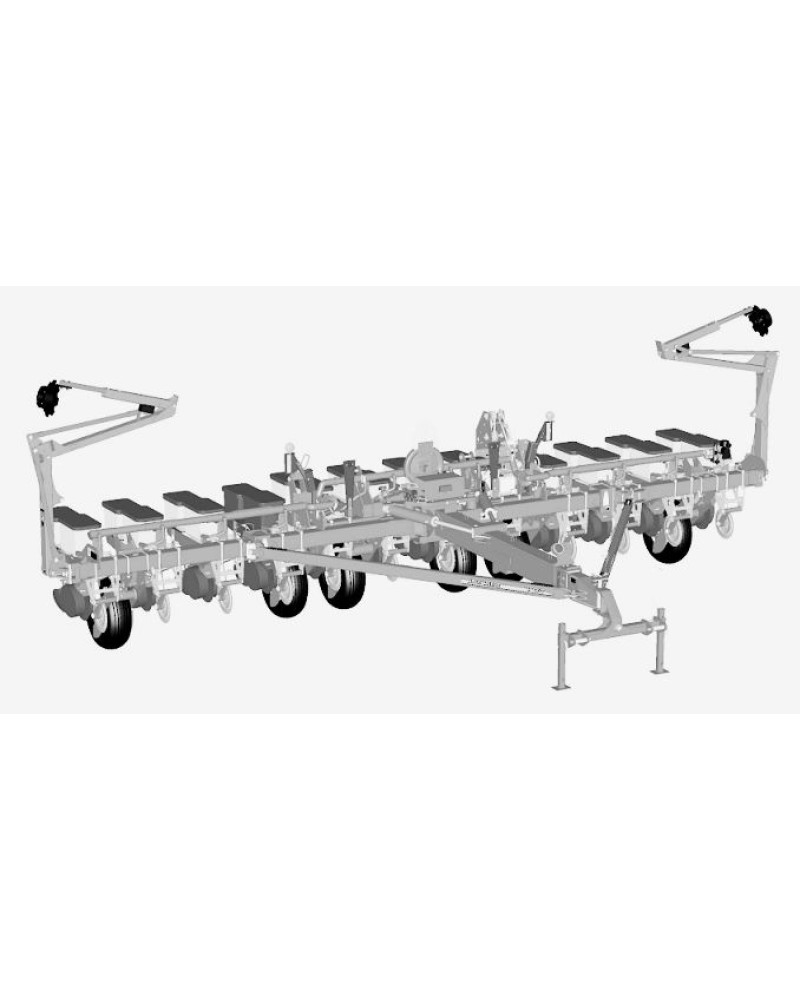

Illustrated factory Diagnostic Manual for John Deere 12 Row Planters Models 1770NT.

This manual will assist you in diagnosing for your planter.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   12 Row 1770NT (SN: 740101-)

Format: PDF, 239 pages
Language: English
Publication Date: 01 Jun 2015
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
   Observable Symptoms
      Electrical
      Hydraulics
   Electrical System
      How To Use This Diagnostic Information
      Solenoid Sequence Table
      Auxiliary Hydraulics Diagnostics
      Auxiliary Power Diagnostics
      CCS System - Agitator Diagnostics
      CCS System - Blower Diagnostics
      CCS System - Low Tank Warning Diagnostics
      Convenience Outlet Diagnostics
      Drawbar Hitch Diagnostics
      Field Raise/Lower Diagnostics
      Fold Diagnostics
      Frame Control Console Diagnostics
      Half Width Disconnect Diagnostics
      Lighting - CCS Fill Lights Diagnostics
      Lighting - Transport Lighting (E.U.) Diagnostics
      Lighting - Transport Lighting (N.A.) Diagnostics
      Markers - Auto Mode Diagnostics
      Markers - Manual Mode Diagnostics
      Transport Raise/Lower Diagnostics

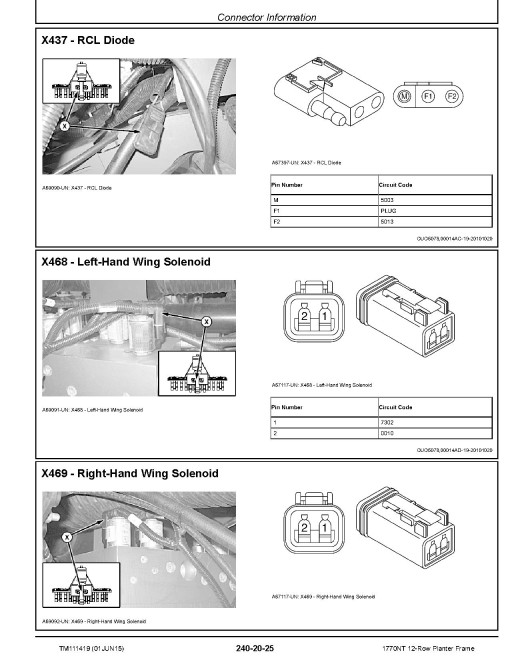

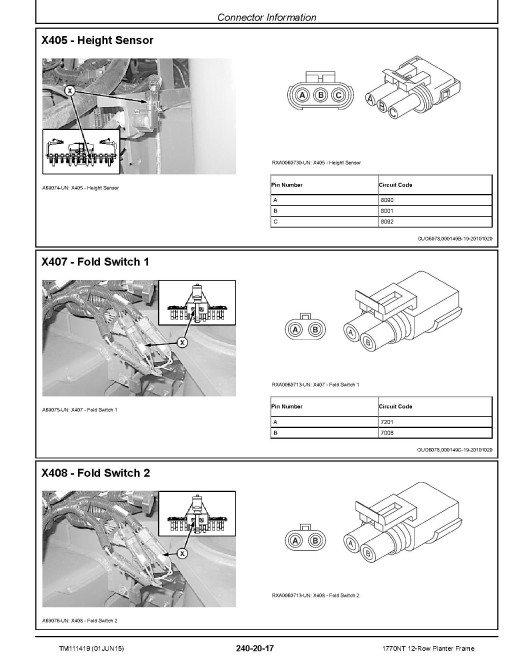

      Connector Information
   Hydraulic System
      General Information
      Auxiliary Hydraulics Diagnostics
      CCS Blower Diagnostics
      Drawbar Hitch Diagnostics
      Field Raise/Lower Diagnostics
      Fold Diagnostics
      Hydraulic Compressor Diagnostics
      Independent Marker Diagnostics
      Integrated Marker Diagnostics
      Transport Raise/Lower Diagnostics
      Vacuum Diagnostics
      Variable Rate Drive Diagnostics

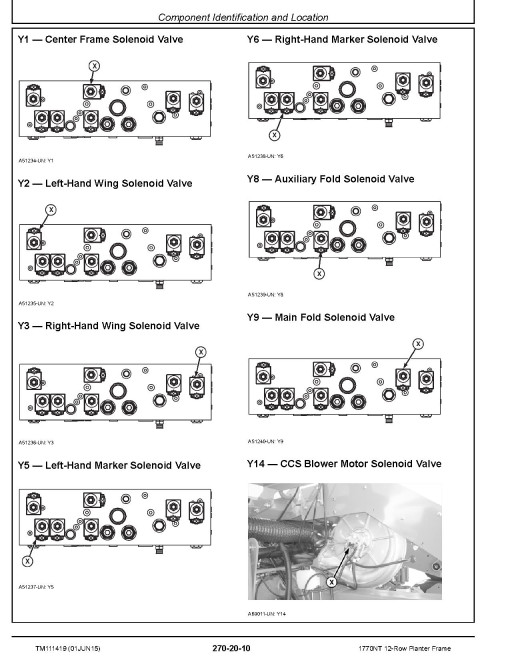

      Component Identification and Location
