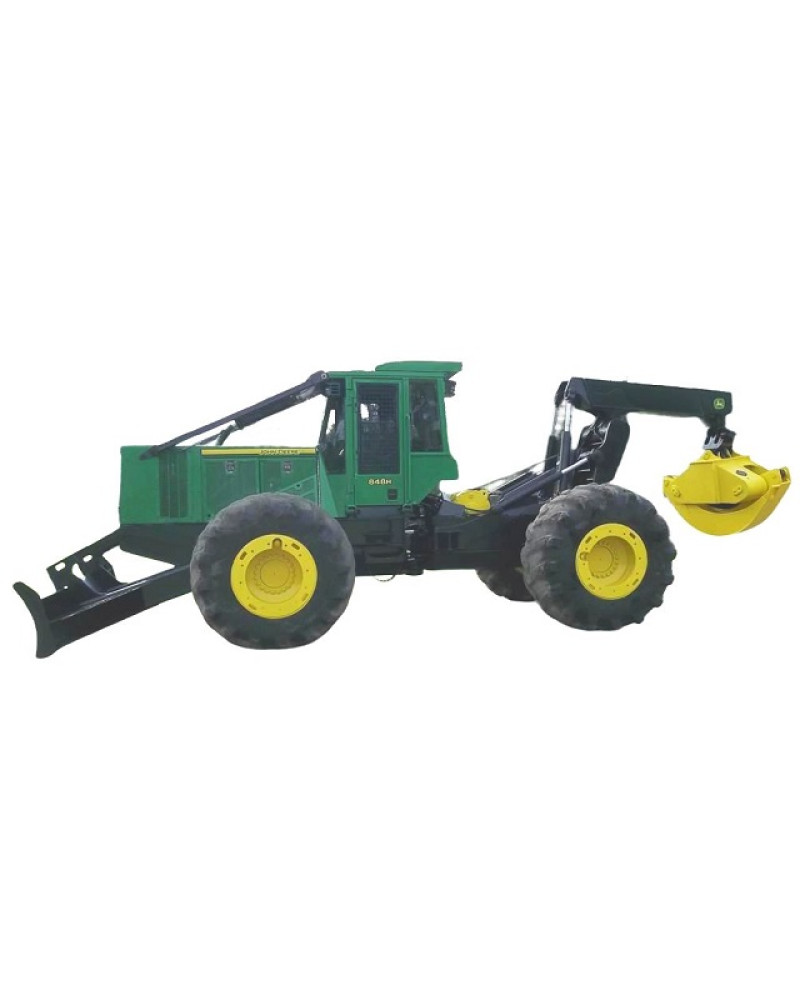

John Deere 848H (SN: 630436-) Grapple Skidders Repair Manual (TM11814)

Illustrated factory Repair Manual for John Deere Grapple Skidders Models 848H.

This manual will assist you in assembling, disassembling, and repairing for your grapple skidder.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   848H (SN: 630436-)

Format: PDF, 354 pages
Language: English
Publication Date: 14 Sep 2020
Table of Contents:
   Introduction
      Foreword
      Technical Information Feedback Form
   General Information
      Safety
      Torque Values
   Wheels
      Powered Wheels and Fastenings
   Axle
      Removal and Installation
      Input Drive Shafts and U-Joints
      Hydraulic System
   Transmission
      Removal and Installation
      Controls
      Input Drive Shafts and U-Joints
      Gears, Shafts and Power Shift Clutches
      Hydraulic System
   Engine
      Removal and Installation
   Engine Auxiliary Systems
      Cold Weather Starting Aids
      Cooling Systems
      Intake System
      Exhaust System

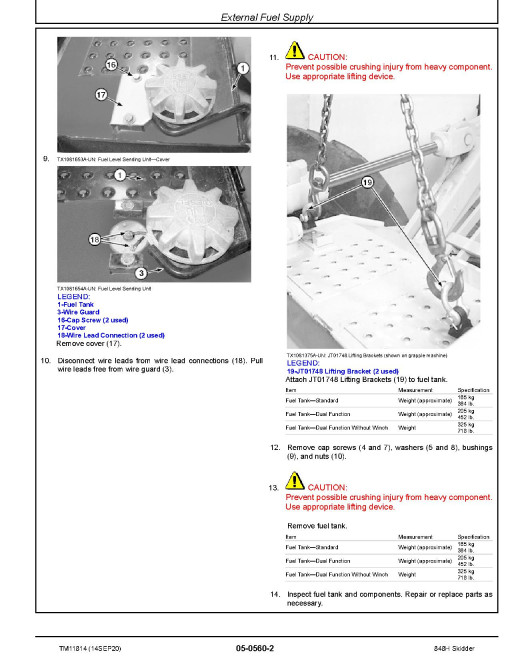

      External Fuel Supply
   Torque Converter
      Remove and Install
      Torque Converter Housing
   Steering System
      Secondary Steering
      Hydraulic System
      Dual Mode Steering
   Service Brakes
      Controls Linkage
      Hydraulic System
   Park Brake
      Active Elements
      Hydraulic System
   Frame, Chassis, or Supporting Structures

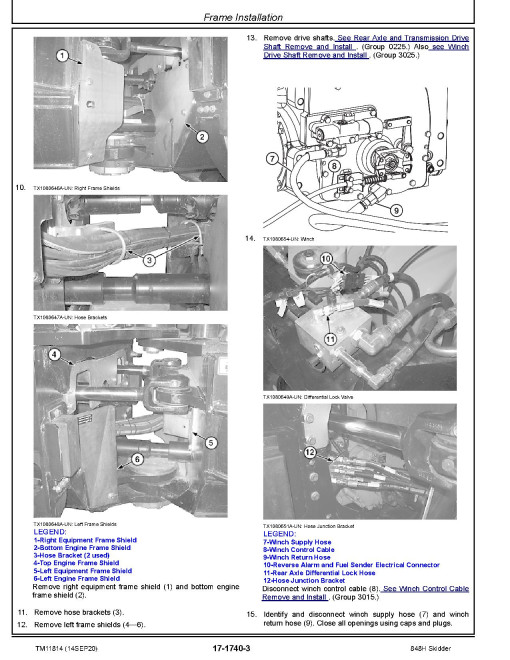

      Frame Installation
      Frame Bottom Guards
   Operator`s Station
      Removal and Installation
      Operator Enclosure
      Seat and Seat Belt
      Heating and Air Conditioning
   Sheet Metal and Styling
      Hood or Engine Enclosure
   Safety, Convenience, and Miscellaneous
      Pressurized Water System
      Horn and Warning Devices
   Main Hydraulic System
      Hydraulic System
   Winch
      Removal and Installation
      Control Linkage
      Input Drive Shafts and U-Joints
      Drive and Clutch
   Stacking Blades
      Blades
      Controls Linkage
      Hydraulic System
   Grapple

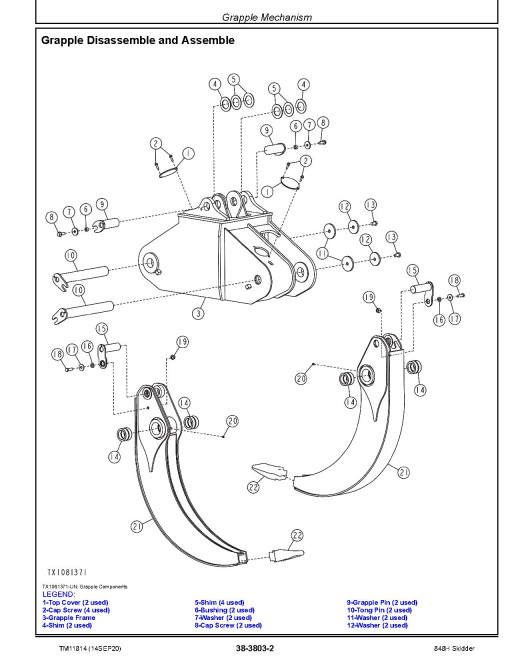

      Grapple Mechanism
      Frames
      Hydraulic System
   Dealer Fabricated Tools
      Dealer Fabricated Tools
