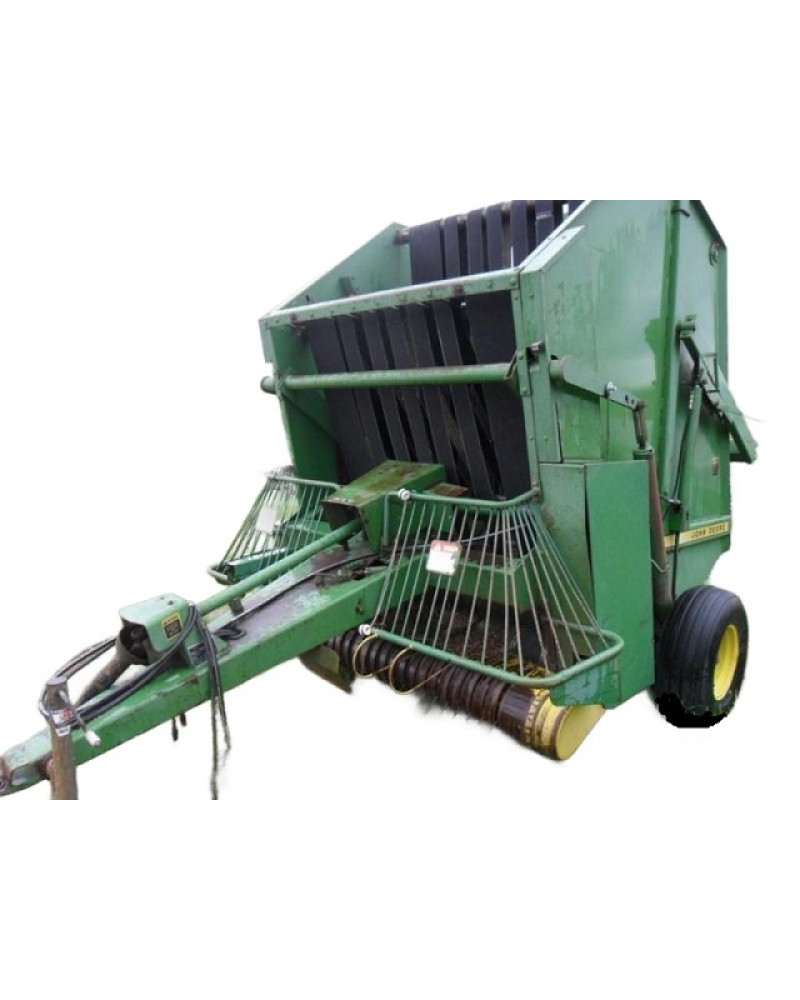

John Deere 410 and 510 Round Balers Technical Manual (TM1194)

Illustrated factory Technical Manual for John Deere Round Balers Models 410 and 510.

This manual will assist you in diagnosing, and repairing for your round baler.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   410
   510

Format: PDF, 136 pages
Language: English
Publication Date: 01 Jul 1977
Table of Contents:
   SAFETY
   GENERAL
      Specifications
      Diagnosing Malfunctions
      Description
      Lubrication
   DRIVE TRAIN
      General Information
      PTO Hookup

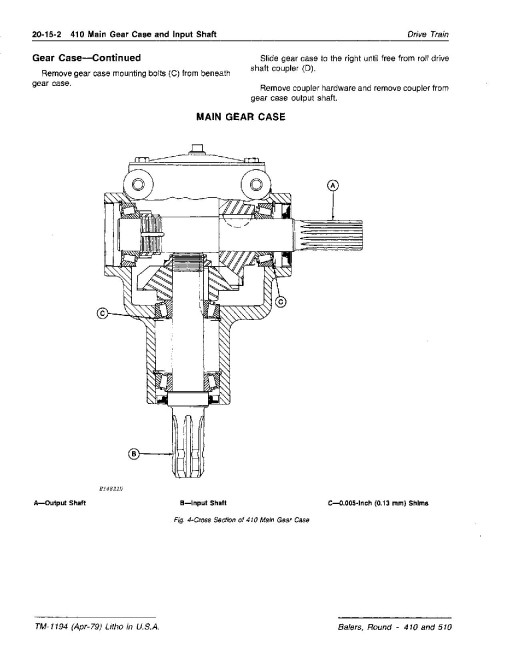

      Main Gear Case and Input Shaft (410)

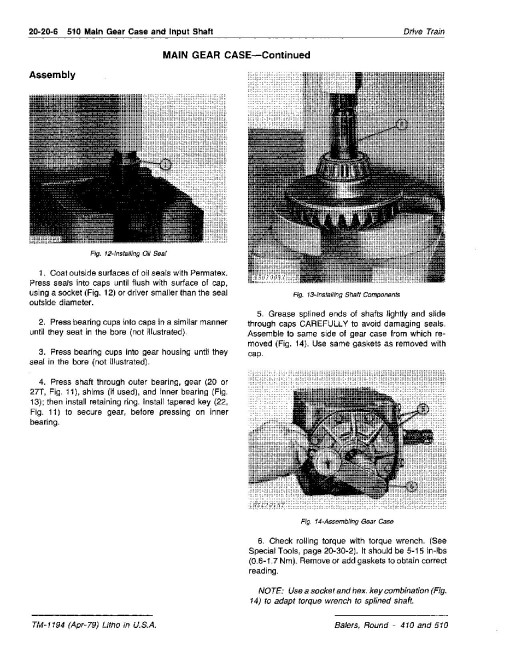

      Main Gear Case and Input Shaft (510}
      Rolls and Roll Drives
      Specifications, Torques and Special Tools
   HYDRAULIC SYSTEM
      General information

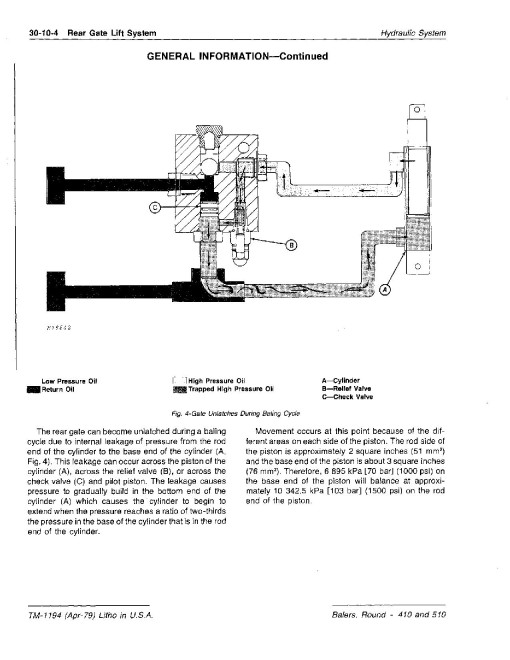

      Rear Gate Lift System
      Wrapping System
      Selector Control Valve
      Specifications
   BELTS
      General Information
      Upper Belts
      Lower Belts
      Specifications
   MISCELLANEOUS
      Rear Gate
      Pickup
      Tongue
   ALPHABETICAL INDEX
