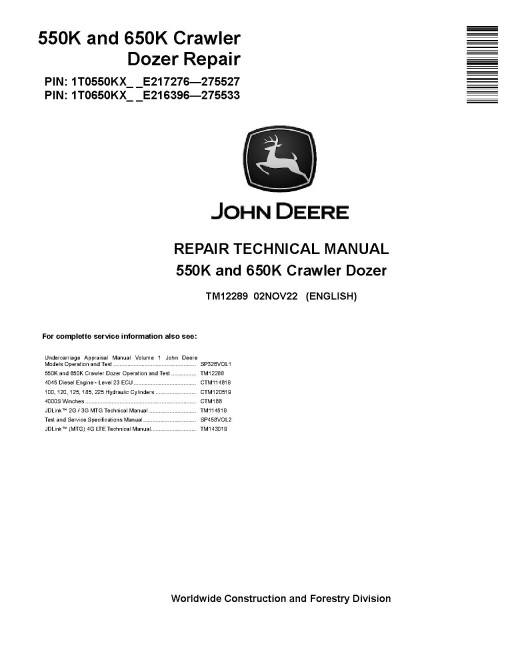

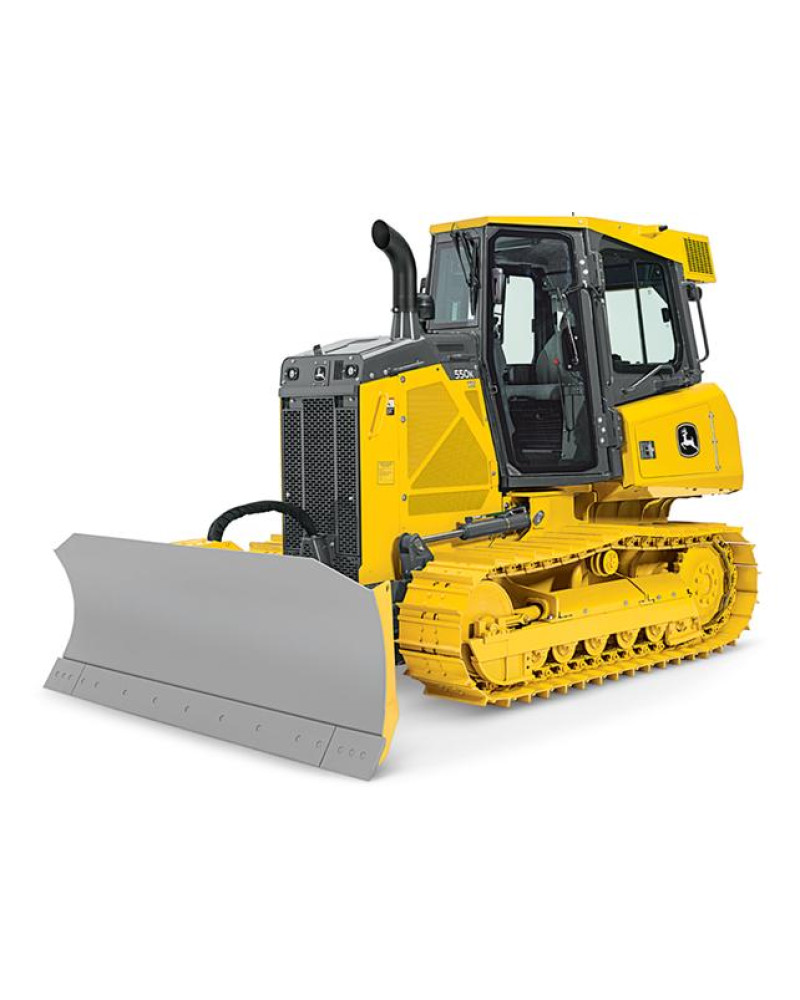

John Deere 550K and 650K Crawler Dozers (SN: E216396-275533) Repair Manual (TM12289)

Illustrated factory Repair Manual for John Deere Crawler Dozers Models 550K and 650K.

This manual will assist you in assembling, disassembling, and repairing for your crawler dozer.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   550K (PIN: 1T0550KX_ _ E217276-275527)
   650K (PIN: 1T0650KX_ _ E216396-275533)

Format: PDF, 399 pages
Language: English
Publication Date: 18 Aug 2015
Table of Contents:
   Introduction
      Foreword
      Technical Information Feedback Form
   General Information
      Safety
      Torque Values
   Tracks
      Track System
   Axles and Suspension Systems
      Drive Axle Housing and Support
      Axle Shaft, Bearings, and Reduction Gears
   Transmission
      Removal and Installation
      Controls Linkage
      Input Drive Shafts and U-Joints
      Hydrostatic System
   Engine
      Removal and Installation
   Engine Auxiliary System
      Cold Weather Starting Aids
      Cooling Systems
      Intake System
      External Exhaust Systems
      External Fuel Supply Systems
   Park Brake
      Removal and Installation
      Controls Linkage
      Hydraulic System
   Equipment Attaching
      Drawbar
   Frame, Chassis, or Supporting Structure
      Frame Installation
      Frame Bottom Guards
      Chassis Weights
   Operator`s Station
      Removal and Installation
      Operator Enclosure
      Seat and Seat Belt
      Heating and Air Conditioning
   Sheet Metal and Styling
      Hood or Engine Enclosure
      Grille and Grille Housing
   Safety, Convenience and Miscellaneous
      Horn and Warning Devices
   Main Hydraulic System
      Hydraulic System
   Bulldozer
      Blades
      Control Linkage
      Frames
      Hydraulic System
   Ground Conditioning Tool
      Ripper
      Blades, Teeth, and Shanks
      Hydraulic System
   Dealer Fabricated Tools
      Dealer Fabricated Tools
