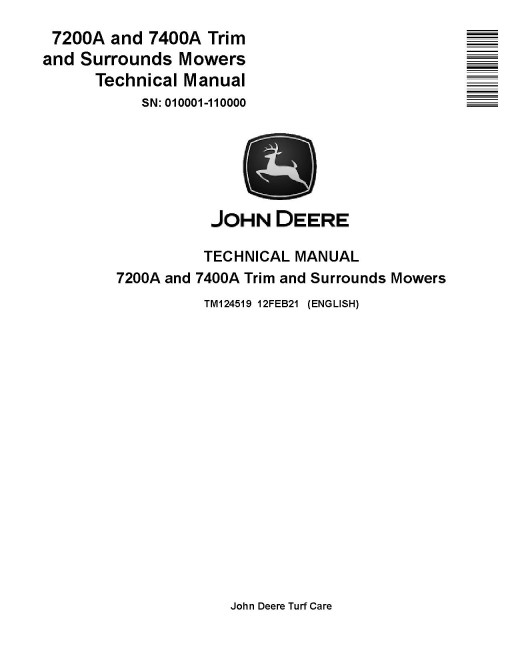

John Deere 7200A and 7400A Trim and Surrounds Mowers (SN: 010001-110000) Technical Manual (TM124519)

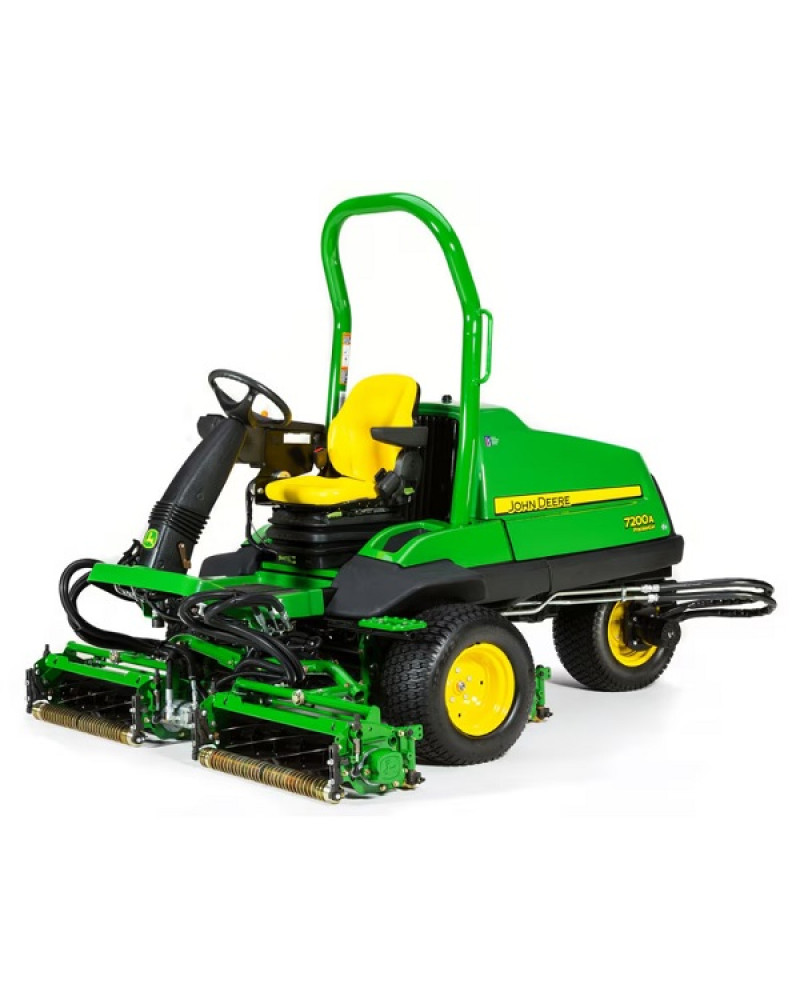

Illustrated factory Technical Manual for John Deere Trim and Surrounds Mowers Models 7200A and 7400A.

This manual will assist you in diagnosing, and repairing for your trim and surrounds mower.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   7200A (SN: 010001-110000)
   7400A (SN: 010001-110000)

Format: PDF, 1159 pages
Language: English
Publication Date: 12 Feb 2021
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      General Specifications
      Fuel, Lubricants, and Coolant
      Machine Specifications
   Engine Repair
      Engine-3TNV80F
      Engine-3TNV84T
      Engine-3TNV86CT
      Cooling
      Fuel and Air-3TNV80F
      Fuel and Air-3TNV84T
   Electrical Repair
      Alternator, Battery and Starting Motor
      Wiring Harnesses
   Power Train Repair
      Power Train
   Steering Repair
      Steering
   Hydraulics Repair
      Hydraulics
      Hydraulic Pump
      Hydraulic Motors
   Attachments Repair
      QA7 Cutting Unit
      QA7 Attachments
      Rotary Cutting Unit
   Miscellaneous Repair
      Miscellaneous
      Operator`s Station
      Fuel System
   Engine Operation, Tests, and Adjustments
      Theory of Operation
      Diagnosis-3TNV80F
      Engine Tests, and Adjustments
      Fuel and Air Operation, Tests, and Adjustments
      Turbocharger Operation, Tests, and Adjustments
   Electrical Operation, Tests, and Adjustments
      Component Location
      Theory of Operation
      Connectors
      Schematics
      Tests and Adjustments
   Controller Operation, Tests, and Adjustments
      Set Up, PDU
      Theory of Operation
      DPF Theory and Functions
      Diagnose-DTCs, PDU
      Diagnose-DTCs, VCU
      Diagnose-DTCs, MCU
      Diagnose-DTCs, ECU 000001 - 000199
      Diagnose-DTCs, ECU 000200 - 000699
      Diagnose-DTCs, ECU 000700 - 001999
      Diagnose-DTCs, ECU 002000 - 002999
      Diagnose-DTCs, ECU 003000 - 003999
      Diagnose-DTCs, ECU 004000 - 529999
      Tests and Adjustments
   Power Train Operation, Tests, and Adjustments
      Component Location
      Theory of Operation
      Diagnosis
      Tests and Adjustments
   Steering and Brake Operation, Tests, and Adjustments
      Component Location
      Theory of Operation
      Diagnosis
      Tests and Adjustments
   Hydraulics Operation, Tests, and Adjustments
      Component Location
      Theory of Operation
      Diagnosis
      Tests and Adjustments
      Hydraulic Schematics
   Attachments Operation, Tests, and Adjustments
      Component Location
      Theory of Operation
      Diagnosis-Reel Mowers
      Diagnosis-Rotary Mowers
      Tests and Adjustments
   Tools and Kits
      Tools
