John Deere W50 v2 Combines (India, Asia) Technical Manual (TM125419)

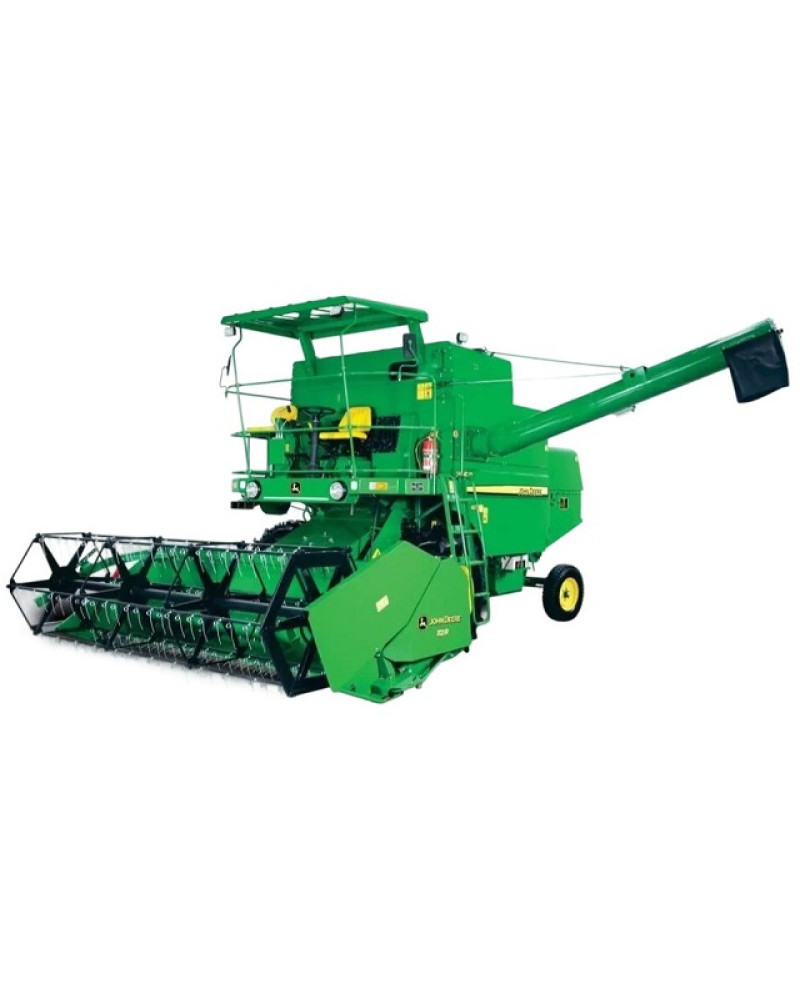

Illustrated factory Technical Manual for John Deere Combines Models W50 V2.

This manual will assist you in diagnosing, and repairing for your combine.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (India, Asia):
   W50 (v2)

Format: PDF, 689 pages
Language: English
Publication Date: 13 Feb 2020
Table of Contents:
   Introduction
      Foreword
   General
      Safety
      Identification Views and Serial Numbers
      Specifications
      Fuels, Lubricants, and Coolants
      Delivery and Storage Instructions
   Engine

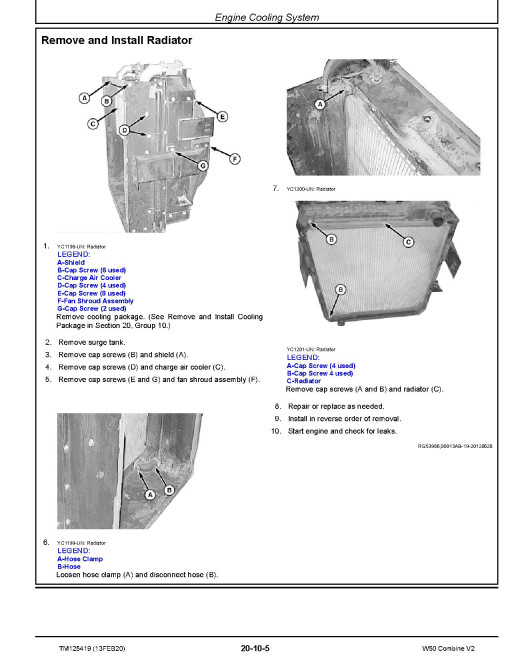

      Engine Cooling System
      Engine
   Fuel and Air
      Intake and Exhaust System
      Diesel Fuel System
   Electrical
      Battery
      Harness and Connector Repair
      Wire Harness Routing
      Power Distribution
      Lighting
      Instruments and Sensors
      Alternator
      Starting Motor
   Power Train
      Variable Speed
      Clutch

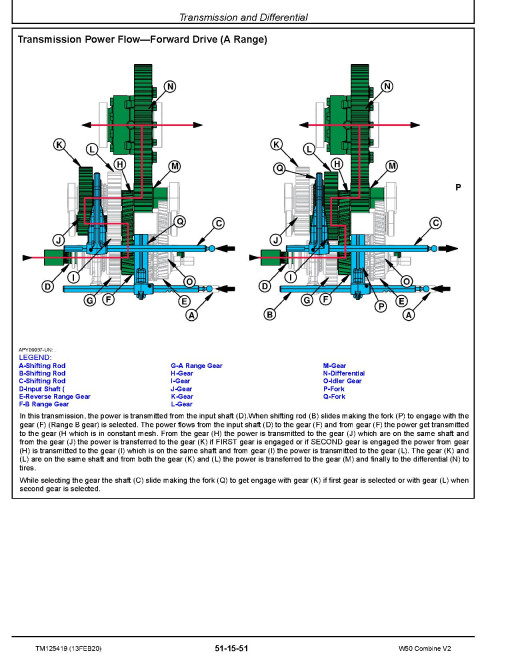

      Transmission and Differential
      Final Drive
      Tires and Wheels
   Power Train (SynchroSmart Transmission)
      Variable Speed
      Clutch
      Transmission and Differential
      Final Drive
      Tires and Wheels
   Brakes and Rear Axle
      Brakes
      Brake Valve and Brake Fluid Reservoir
      Hydraulic Steering
      Rear Axle
   Brakes and Rear Axle (SynchroSmart Transmission)
      Brakes
      Brake Valve and Brake Fluid Reservoir
      Hydraulic Steering
      Rear Axle
   Hydraulics
      Hydraulic System and Reservoir
      Hydraulic Pump
      Hydraulic Valves
      Cylinders
   Miscellaneous
      Shafts and Bearings
      Belts
      Chain
   Operator Station
      Operator Station
      Control Levers
   AC Cab
      Operator Station
      Control Levers
   Feeder House
      Feeder House
   Separator
      Separator Drives
      Threshing Cylinder and Concave
      Beater Cylinder
      Straw Walkers and Crankshafts
      Cleaning

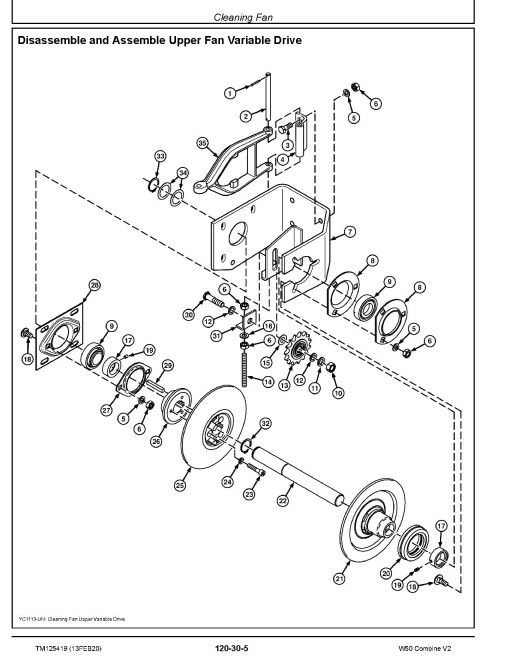

      Cleaning Fan
      Tailings Elevator and Augers
      Straw Chopper
   Grain Tank and Unloading System
      Unloading Auger and System Drives
      Grain Tank and Covers
      Clean Grain Elevator and Augers
   General Diagnostics
      Electrical
      Hydraulic
   Electrical Diagnostics
      Electrical Diagnostics
      Electrical Diagnostics (SynchroSmart Transmission)
      Connector Information X001 - X099
      Connector Information X100 - X199
      Connector Information X200 - X299
      Connector Information X300 - X399
      Connector Information X400 - X499
      Connector Information X500 - X599
      Connector Information X600 - X699
      Connector Information X700 - X799
      Connector Information X800 - X899
      Connector Information X900 - X999
      Connector Information J01-J04 (SynchroSmart Transmission)
      Connector Information H001-H099 (SynchroSmart Transmission)
   Hydraulic Diagnostics
      Hydraulic Schematic
   Dealer Fabricated Tools
      Dealer Fabricated Tools
