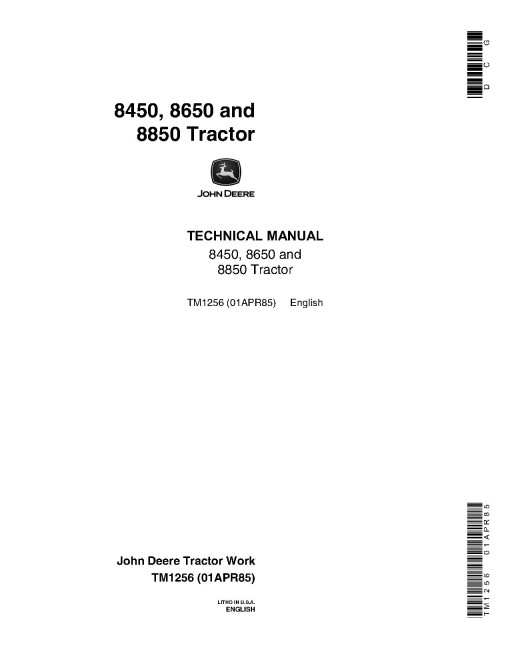

John Deere 8450, 8650 and 8850 4WD Articulated Tractors Operation and Test Manual (tm1256)

Illustrated factory Operation and Test Manual for John Deere 4WD Articulated Tractors Models 8450, 8650 and 8850.

This manual will assist you in diagnosing, and troubleshooting for your 4wd articulated tractor.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   8450
   8650
   8850

Format: PDF, 724 pages
Language: English
Publication Date: 01 Apr 1985
Table of Contents:
   GENERAL
   Introduction and Safety Information
   8450/8650 ENGINE OPERATION AND TESTS
      Specification and Special Tools

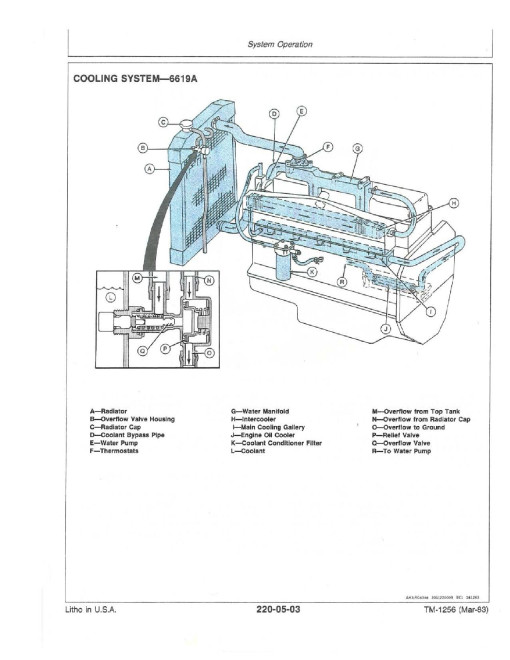

      System Operation
      System Tests and Diagnosis
   8955A ENGINE OPERATION AND TESTS
      Specifications and Special Tools
      System Operation
      System Tests and Diagnosis
   FUEL/AIR OPERATION AND TESTS
      Specifications and Special Tools
      Air Intake System
      Diesel Fuel System
      Control Linkage
   ELECTRICAL OPERATION AND TESTS
      Specifications and Special Tools
      Electrical System Information
      Phase I Wiring Diagrams
      Phase II Wiring Diagrams
      Phase III Wiring Diagrams

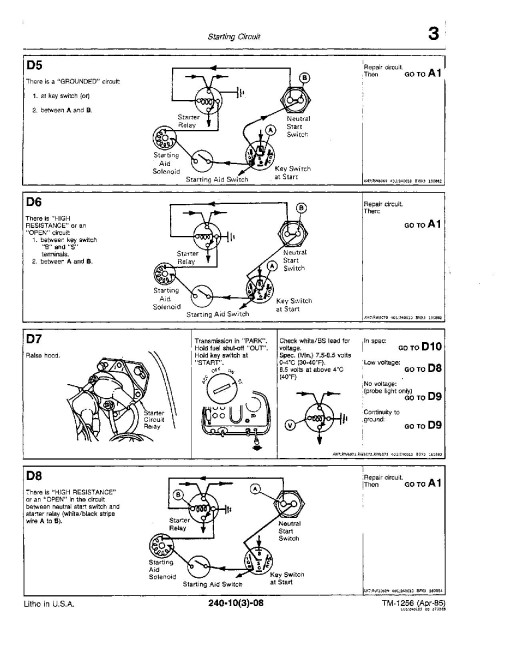

      Electrical System Diagnosis
      Niehoff Alternator Operation
      John Deere Starting Circuit
      Delco-Remy Starting Circuit
      Lighting Circuit
      INVESTIGATOR II Warning System
      Accessory Circuits
      Remote Electrical Circuits
   POWER TRAIN OPERATION AND TESTS
      Specifications and Special Tools
      PERMA-CLUTCH Operation and Lubrication
      QUAD-RANGE Planetary Operation
      QUAD-RANGE Eight-Speed Operation
      Transmission Operation and Lubrication Circuits
      Independent PTO Operation
      Torque Divider and Drive Shafts
      Differential and Final Drive Operation
      Power Train Tests
   STEERING/BRAKES OPERATION AND TESTS
      Specifications and Special Tools
      Power Steering System Operation
      Steering Metering Pump Operation
      Steering Valve Operation
      Steering and Feedback Cylinders Operation
      Steering System Tests and Diagnosis
      Power Brake System Operation
      Brake Valve and Brake Accumulator Operation
      Brake Pistons, Plates and Disks Operation
      Brake System Tests and Diagnosis
   HYDRAULIC OPERATION AND TESTS
      Specifications and Special Tools
      Hydraulic System Operation
      Triple Pump Assembly Operation and Tests
      Charge Circuit Valves Operation and Tests

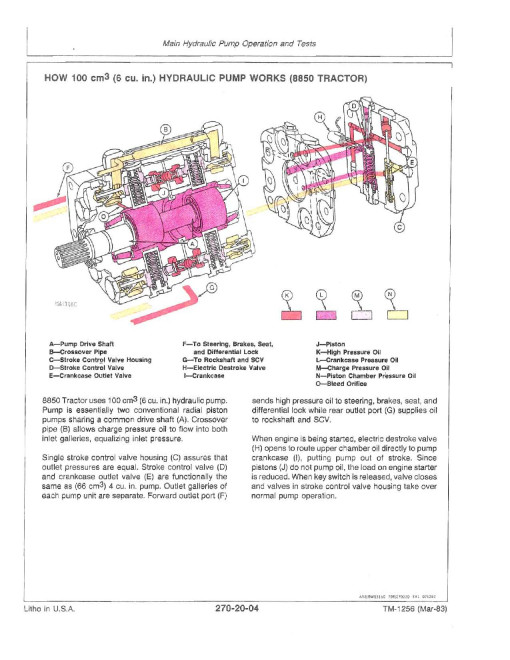

      Main Hydraulic Pump Operation and Tests
      HYDRACUSHIONED Seat Valve Operation and Tests
      Pressure Control Valve Operation and Tests
      Rockshaft System Operation and Tests
      Selective Control Valve Operation and Tests
      Remote Cylnider Operation and Tests
      Hydraulic System Tests
   OPERATOR STATION OPERATIONS AND TESTS
      Specifications and Special Tools
      Air Conditioning System Operation
      Air Conditioning System Tests
      Heating System Operation and Tests
      HYDRACUSHIONED Seat
