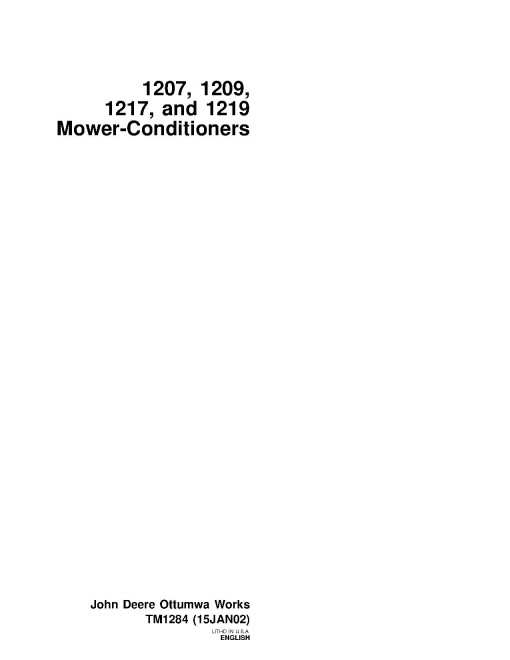

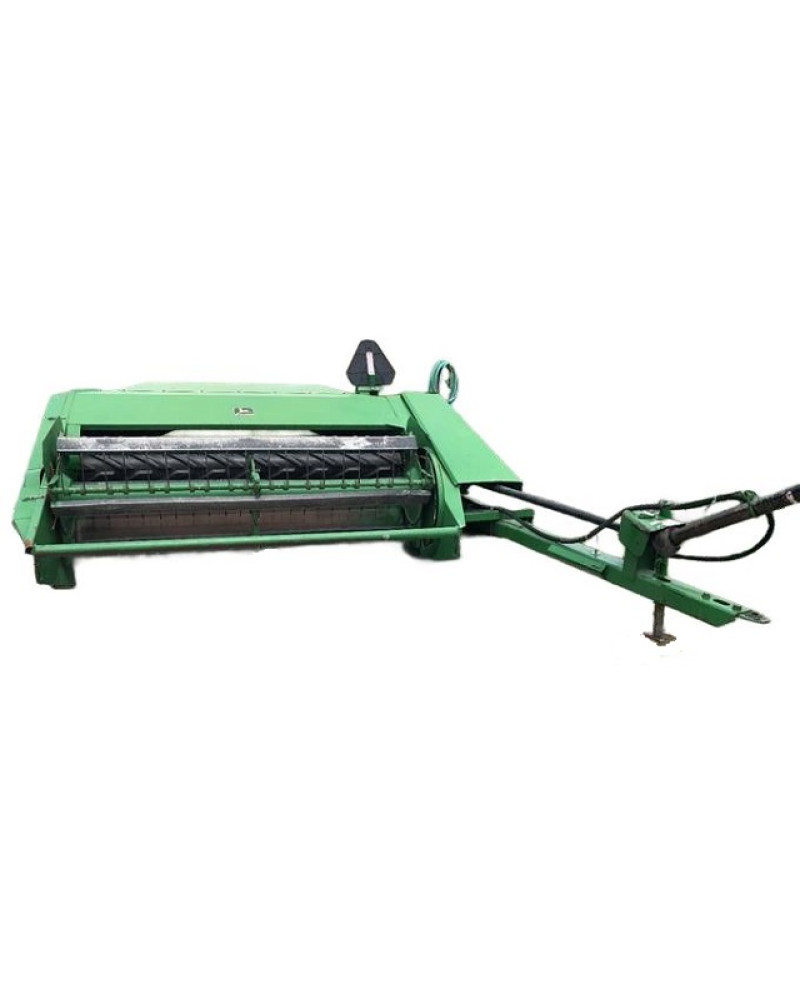

John Deere 1207, 1209, 1217 and 1219 Mower-Conditioners (North America) Technical Manual (TM1284)

Illustrated factory Technical Manual for John Deere Mower-Conditioners Models 1207, 1209, 1217 and 1219.

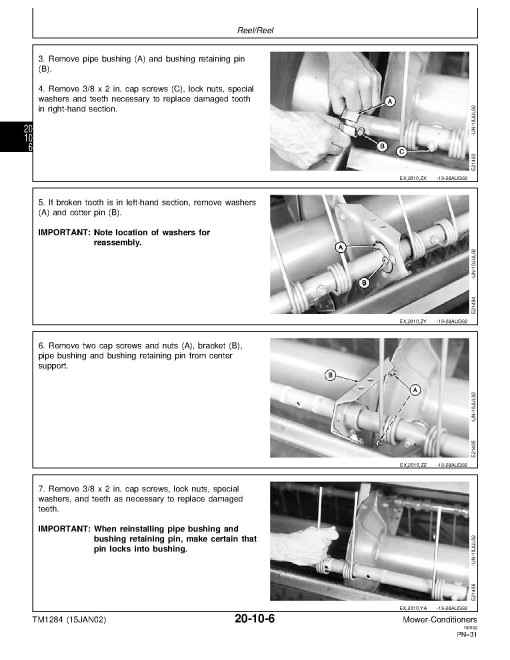

This manual will assist you in diagnosing, and repairing for your mower-conditioner.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (North America):
   1207
   1209
   1217
   1219

Format: PDF, 232 pages
Language: English
Publication Date: 15 Jan 2002
Table of Contents:
   GENERAL
      Safety
      Specifications and Torques
      General Information and Tractor Hookup
      Lubrication
   Power Train
      Diagnosing Malfunctions
      Reel
      PTO Hookup
      Slip Clutch
      Main Drive and Roll Drive Gear Case
      Roll and Roll Drives
   HYDRAULIC SYSTEM
      Diagnosing Malfunctions

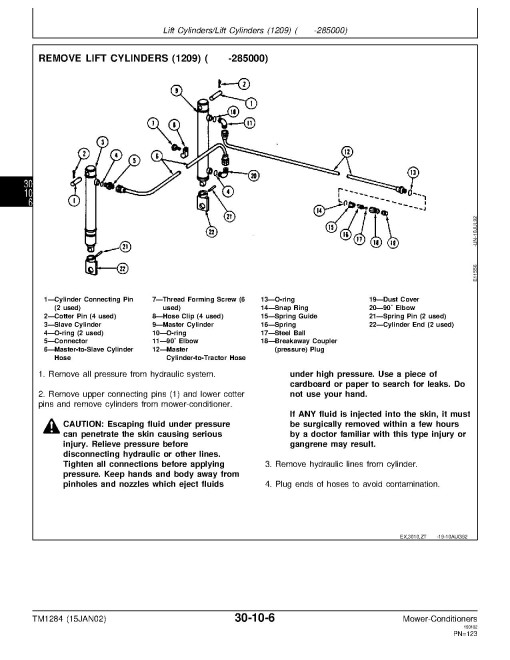

      Lift Cylinders
      Tongue Positioning Cylinder (1209—1219) (425001- )
   CUTTING COMPONENTS
      Diagnosing Malfunctions
      Knife Drive Case

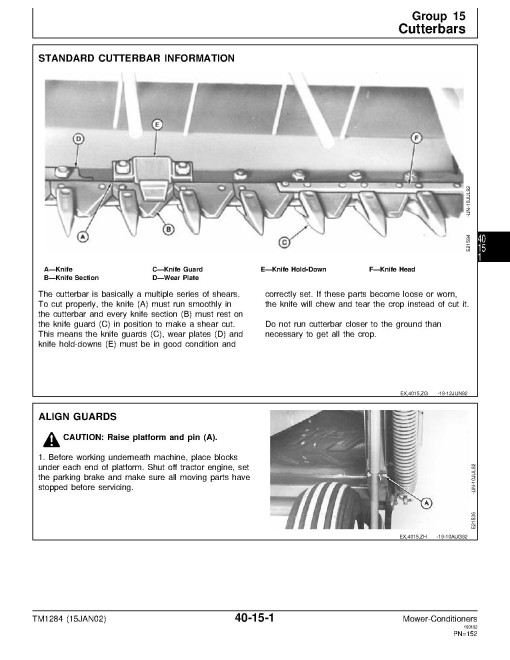

      Cutterbars
      Knives
   SPECIAL TOOLS
      Purchased Tools
      Fabricated Tools
   DOUBLE WINDROW ATTACHMENT
      Electrical System
      Hydraulic Motor
      Electrohydraulic Valves
      Table Shift Cylinder
      Rolls
      Troubleshooting
   Index
