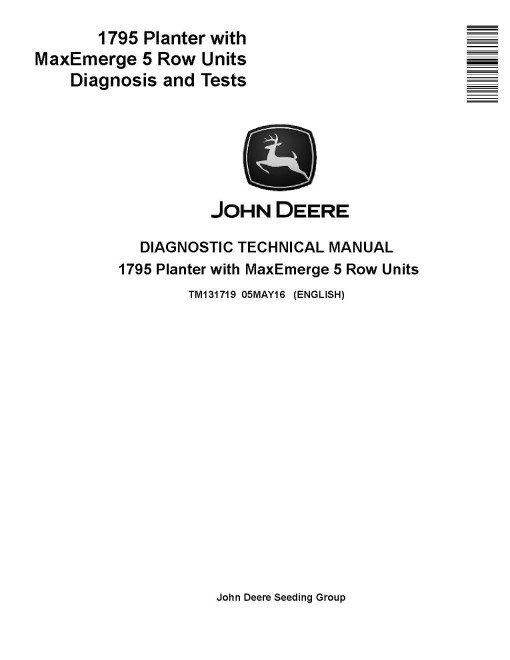

John Deere 1795 Planters with MaxEmerge 5 Row Units (SN. from 760101) Diagnostic Manual (TM131719)

Illustrated factory Diagnostic Manual for John Deere Planters with MaxEmerge 5 Row Units Models 1795.

This manual will assist you in diagnosing for your planter.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   1795 (SN: 760101-)

Format: PDF, 788 pages
Language: English
Publication Date: 05 May 2016
Table of Contents:
   Introduction
      Foreword
   General Information
      Acronym Table
      How to Use This Manual
      Safety
      Lubricants
      Recommended Tools for Diagnostics
      Basic Diagnostics
      Diagnostic Information for Electrical Components
      Diagnostic Information for Hydraulic Components
      Maintaining Hydraulic Systems and Components
      Standard Torque Chart Procedures
   Diagnostic Trouble Codes
      Accessing Diagnostic Trouble Codes
      Closing Wheel Controller (CWC) Codes
      Planter Main 1 (PM1) Codes
      Planter Main 2 (PM2) Codes
      Planter Auxiliary 1 (PA1) Codes
   Observable Symptoms and System Diagnostics
      Observable Symptoms
   Electrical
      General Information
      Theory of Operation
      Schematics - Frame
      Schematics - CAN Bus
      Schematics - Enhanced Monitoring
      Schematics - Pneumatic Downforce
      Schematics - Row Command
      Schematics - Seed Monitoring
      Diagnostics
   Electronic Control Units
      Accessing Diagnostic Addresses
      Diagnostic Addresses by Control Unit
      Diagnostics
   Electrical Component Information

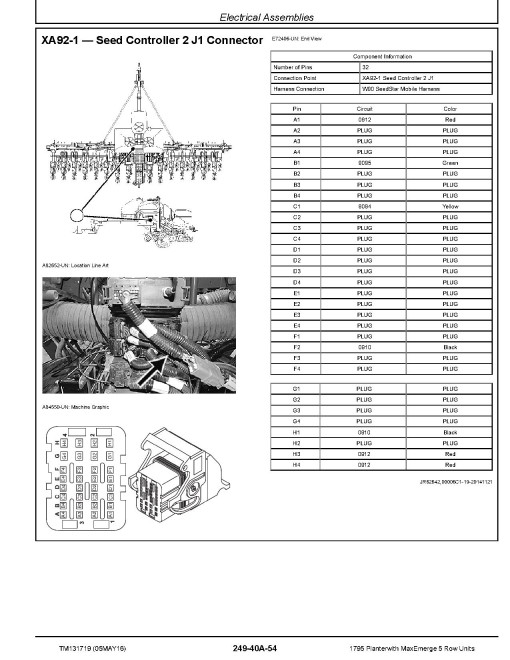

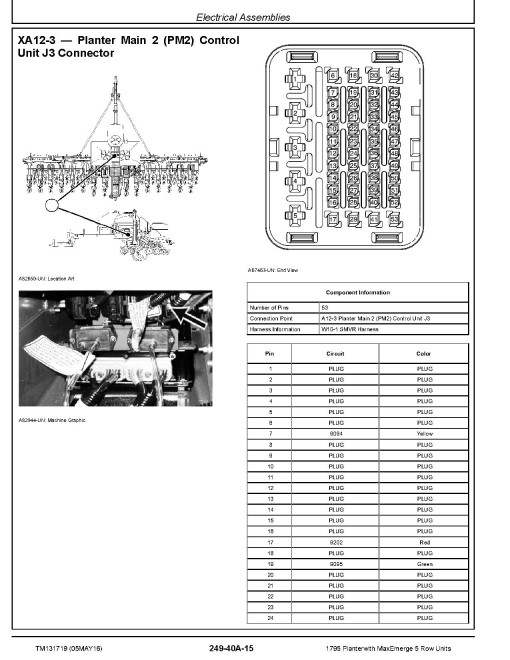

      Electrical Assemblies
      Sensors
      Lights
      Fuses
      Charging
      Relays
      Motors
      Switches
      Diodes
      Interconnects and Ground Points

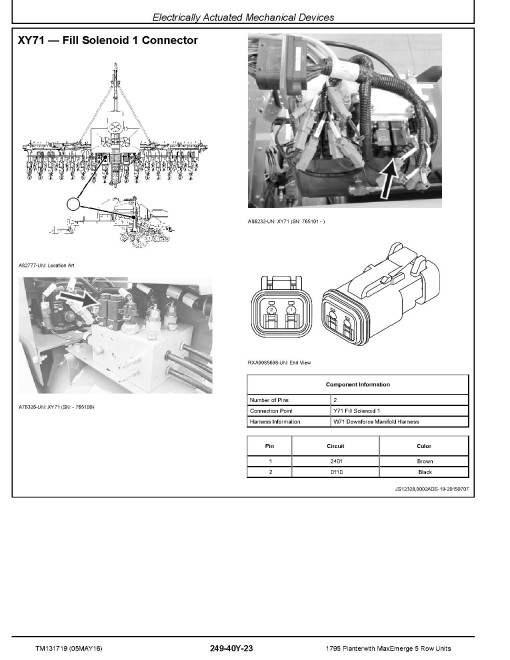

      Electrically Actuated Mechanical Devices
   Hydraulics
      Theory of Operation
      Schematics
      Diagnostics
   Hydraulic Component Information
      Cylinder, Actuator, or Piston
      Check Valve
      Filter
      Valve Block, Assembly, or Gearcase
      Cooler
      Motor
      Orifice
      Reservoir Tank
      Valve
      Diagnostic Receptacle or Coupler
      Solenoid Valve
   Pneumatics
      Theory of Operation
      Schematics
      Diagnostics
   Pneumatic Components
      Accumulators
      Sensors
      Check Valves
      Filters
      Assembly Groups
      Pumps
      Reservoirs
      Switches
      Valves
      Couplers or Diagnostic Receptacles
      Solenoid Valves
