John Deere iGrade (PIN: PCXL01A100000-149999; PCXL01B100000-149999) Technical Manual (TM133019)

Illustrated factory Technical Manual for John Deere Systems Models iGrade.

This manual will assist you in diagnosing, and repairing for your system.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   iGrade (PIN: PCXL01A100000-149999; PCXL01B100000-149999)

Format: PDF, 192 pages
Language: English
Publication Date: 03 Feb 2021
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      General References
      References for Technical Information
      Theory of Operation
      Factory Support Information
   Observable Symptom and System Diagnostics
      Electronic Control Units
      Hydraulic
   Electrical
      General Information

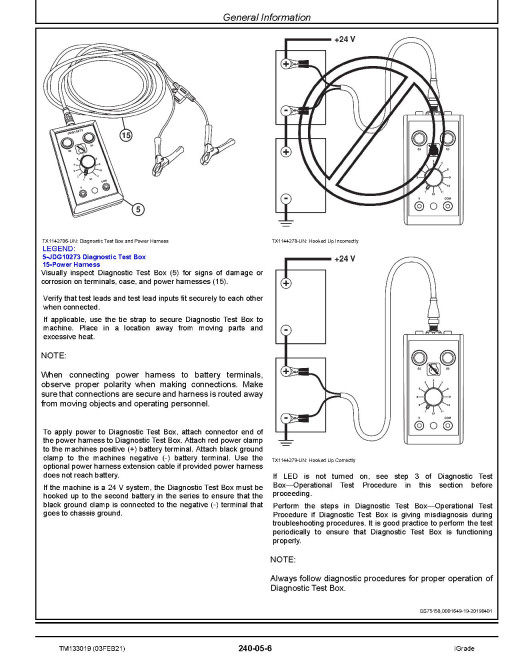

      Operational and Preliminary Procedures
      Diagnostic Tests and Adjustments
   Electronic Control Units
      General Information

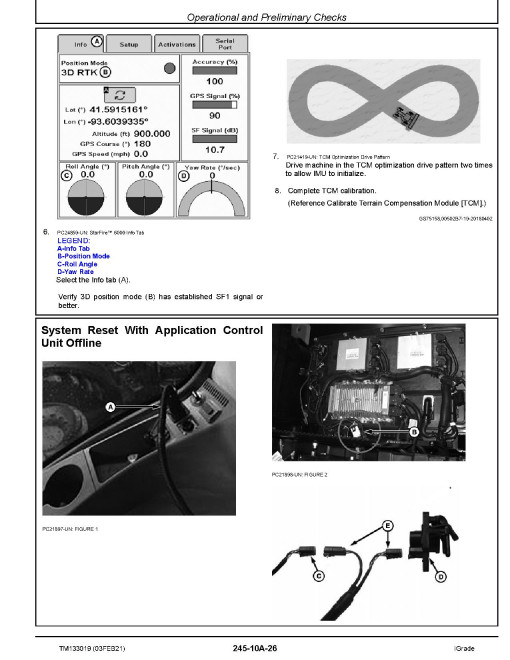

      Operational and Preliminary Checks
      Interactive Tests and Calibrations
      Programming Electronic Control Units
      Schematic
      Diagnostic Tests and Adjustments
   Electrical Component Information
      General Information

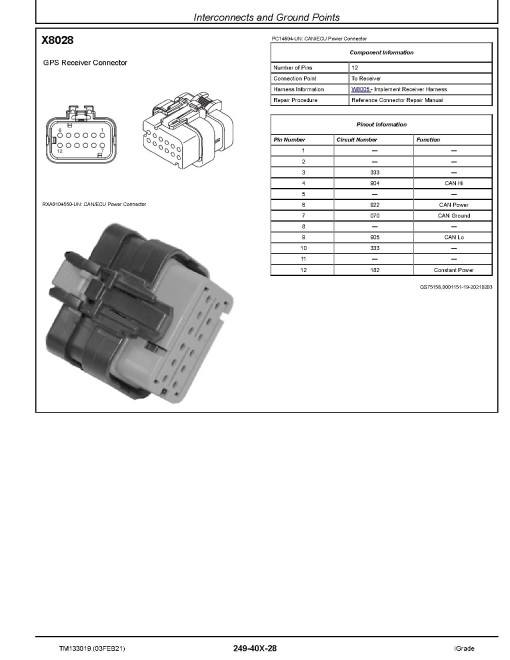

      Wiring Harnesses
      Interconnects and Ground Points
   Hydraulics
      General Information
      Schematic
      Diagnostic Tests and Adjustments
   Hydraulics Component Information
      Valve
   Tools
      Summary of References
      Dealer Fabricated Tools
