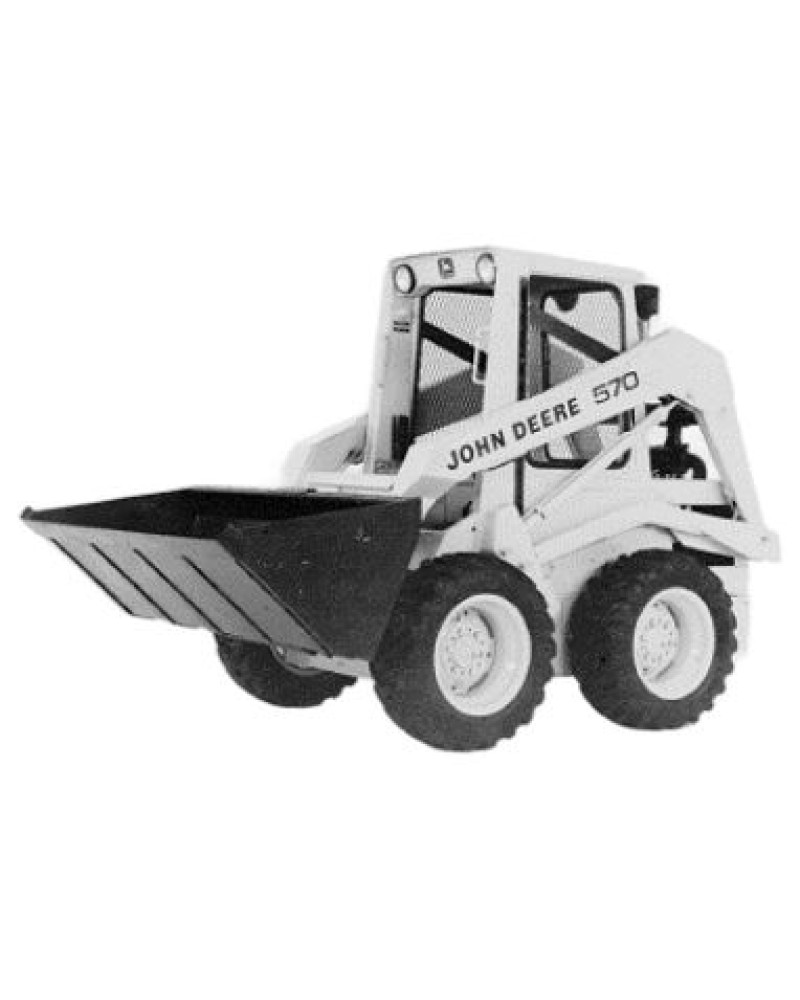

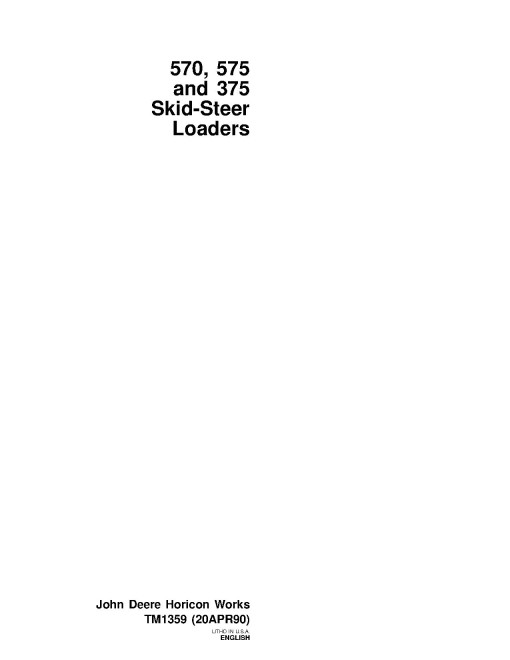

John Deere 375, 570 and 575 Skid Steer Loaders Technical Manual (TM1359)

Illustrated factory Technical Manual for John Deere Skid Steer Loaders Models 375, 570 and 575.

This manual will assist you in diagnosing, and repairing for your skid steer loader.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   375
   570
   575

Format: PDF, 540 pages
Language: English
Publication Date: 20 Apr 1990
Table of Contents:
   GENERAL INFORMATION
      Introduction and Safety
      General Specifications
      Cap Screw Torque
      Tune-Up
      Fuel and Lubrication-570
      Fuel and Lubrication-575 and 375
      Serial Numbers
   DIESEL ENGINE

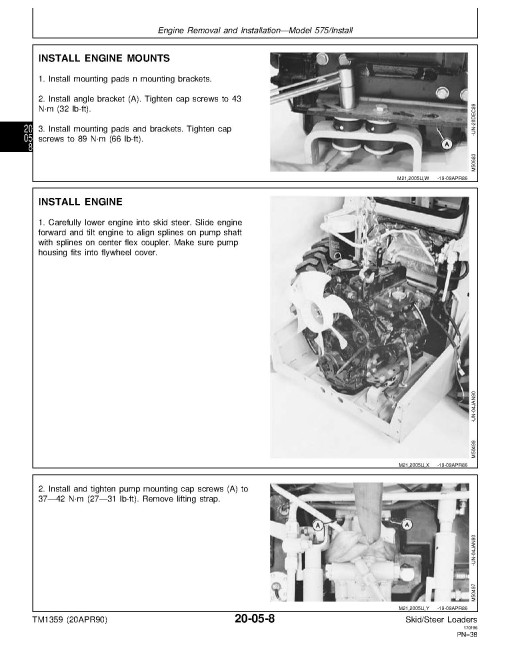

      Engine Removal and Installation -Model 575
      Engine Removal and Installation Model 375
      Cooling System
   GASOLINE ENGINE
      Gasoline Engine Removal and Installation
      Valve Actuating Means and Camshaft
      Manifold, Cylinder Heads and Valves
      Flywheel and Housing
      Connecting Rods and Pistons
      Crankshaft and Main Bearings
      Gear Housing
      Lubrication System
      Cooling System
   FUEL AND AIR SYSTEM-DIESEL
      Throttle Control Linkage
      External Fuel Supply
   FUEL AND AIR SYSTEM (GASOLINE)
      Carburetor
      Carburetor and Governor Linkages
      External Fuel Supply
   ELECTRICAL
      Alternator-Model 570
      Starter-Model 570
      Seat Lockout Switch
   POWER TRAIN

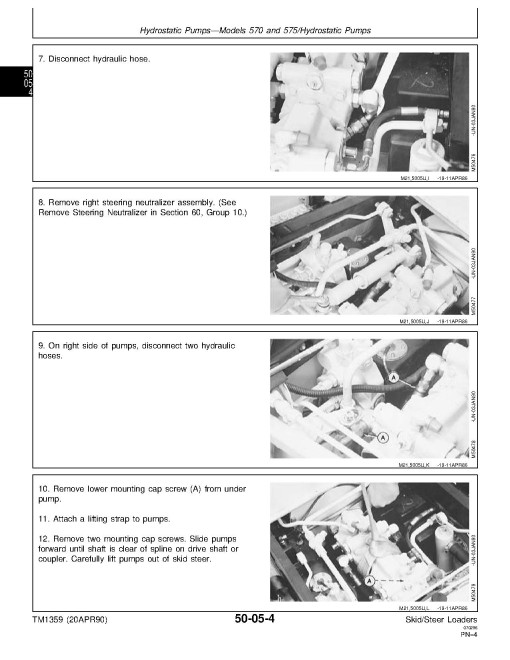

      Hydrostatic Pumps-Models 570 and 575
      Hydrostatic Pump -Model 375
      Hydrostatic Motors-Models 570 and 575
      Hydrostatic Motors-Model 375
      Drive Chains and Axles-Models 570 and 575
      Drive Chains and Axles-Model 375
      Drive Shaft
   STEERING AND BRAKES
      Park Brake
      Steering Neutralizer
   HYDRAULICS
      Hydraulic Pump-Models 570 and 575
      Hydraulic Pump -Model 375
      Main Control Valve
      Hydraulic Cylinders
      Miscellaneous Hydraulics
      Lift Arms, Linkage and Stops
   SPECIFICATIONS/OPERATIONAL CHECKOUT
      Test and Adjustment Specifications
      Machine Operational Checkout
   ENGINE OPERATION AND TESTS

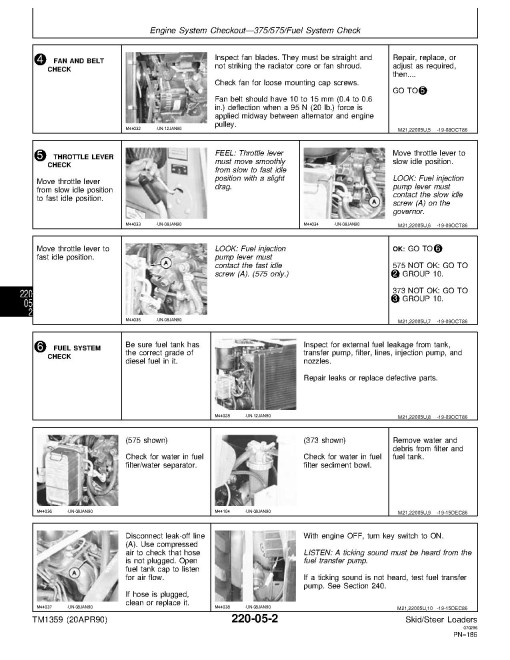

      Engine System Checkout-375/575
      Engine System Checkout-570
      Engine System Diagnosis-375/575
      Engine System Diagnosis -570
   ELECTRICAL OPERATION AND TESTS
      Electrical System Checkout
      Electrical System Diagnosis
      Component Locations and Diagrams
   POWER TRAIN OPERATION AND TESTS
      Power Train System Checkout
      Power Train Tests and Adjustments
   HYDRAULIC OPERATION AND TEST
      Hydraulic System Checkout
      Hydraulic System Tests
      Schematic Diagrams
