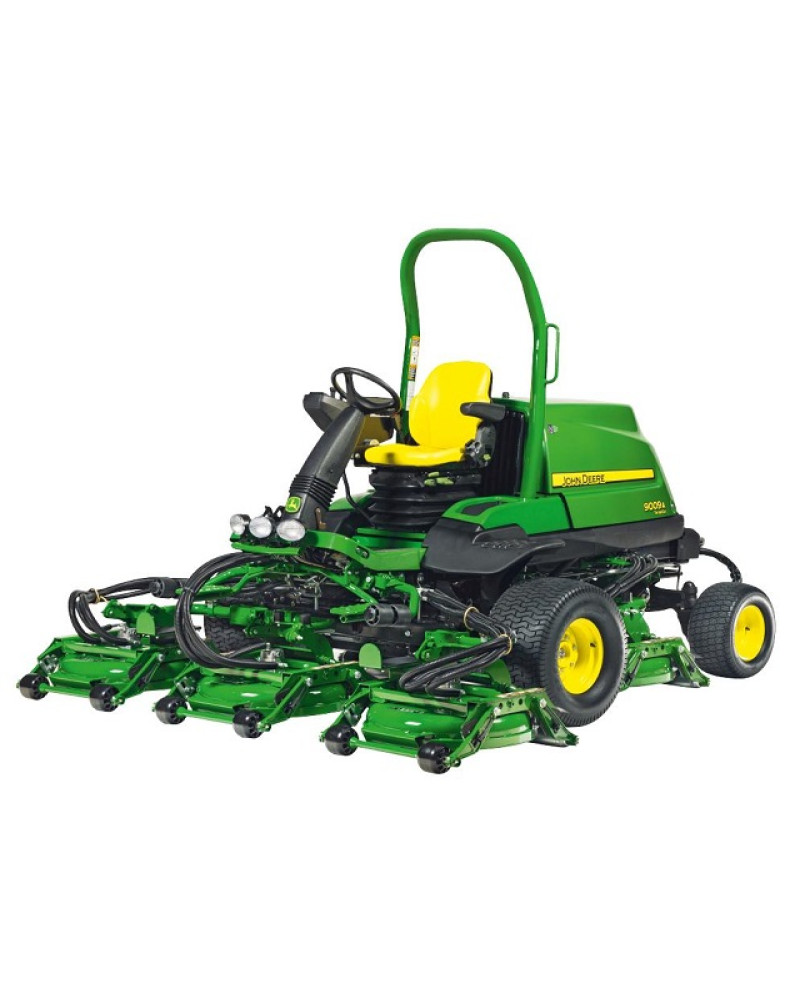

John Deere TerrainCut 9009A Rough Mowers (SN. from 010001) Technical Manual (TM137719)

Illustrated factory Technical Manual for John Deere TerrainCut Rough Mowers Models 9009A.

This manual will assist you in diagnosing, and repairing for your rough mower.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   TerrainCut 9009A (SN: 010001-)

Format: PDF, 775 pages
Language: English
Publication Date: 02 Feb 2021
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      General Specifications
      Fuels and Lubricants
      Machine Specifications
   Engine Repair
      Engine
      Cooling
   Electrical Repair

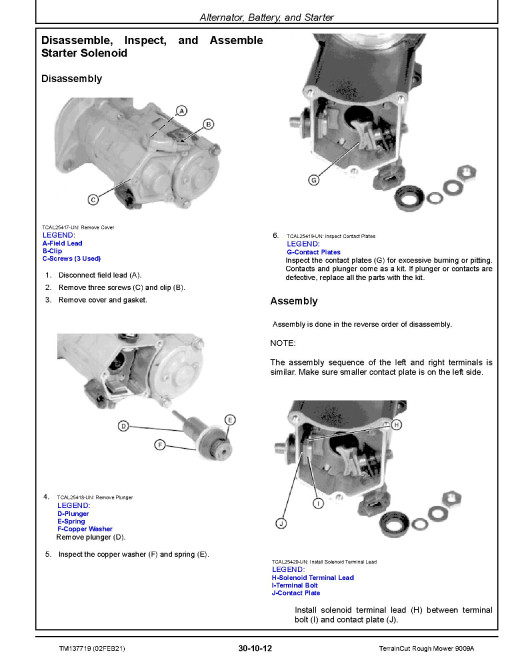

      Alternator, Battery, and Starter
      Wiring Harnesses
   Power Train Repair
      Power Train
   Hydraulic Repair
      Hydraulic Valves and Cylinders
      Hydraulic Pump
      Hydraulic Motors
   Steering Repair
      Steering
   Attachments Repair
      Rotary Cutting Unit
   Miscellaneous Repair
      Miscellaneous
      Operator`s Station
   Engine Operation, Tests, and Adjustments
      Theory of Operation
      Diagnosis
      Fuel and Air Operation, Tests, and Adjustments
      Turbocharger Operation, Tests, and Adjustments
      Tests and Adjustments
   Electrical Operation, Tests, and Adjustments
      Component Location
      Theory of Operation
      Diagnosis
      Connectors
      Schematics
      Tests and Adjustments
   Controllers Operation, Tests, and Adjustments
      Set Up, PDU
      Theory of Operation
      DPF Theory and Functions
      Diagnose-DTCs, PDU
      Diagnose-DTCs, VCU
      Diagnose-DTCs, ECU 000001 - 000199
      Diagnose-DTCs, ECU 000200 - 000699

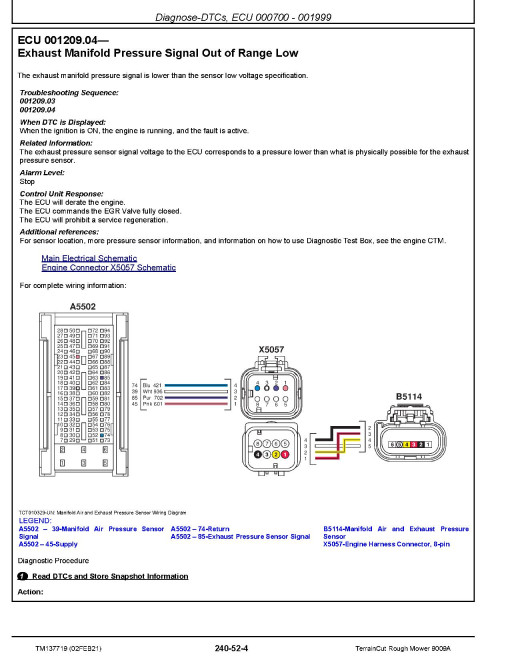

      Diagnose-DTCs, ECU 000700 - 001999
      Diagnose-DTCs, ECU 002000 - 002999
      Diagnose-DTCs, ECU 003000 - 003999
      Diagnose-DTCs, ECU 004000 - 529999
      Tests and Adjustments
   Power Train Operation, Tests, and Adjustments
      Component Location
      Theory of Operation
      Diagnosis
      Tests and Adjustments
   Hydraulics Operation, Tests, and Adjustments
      Component Location
      Theory of Operation
      Schematics
      Diagnosis

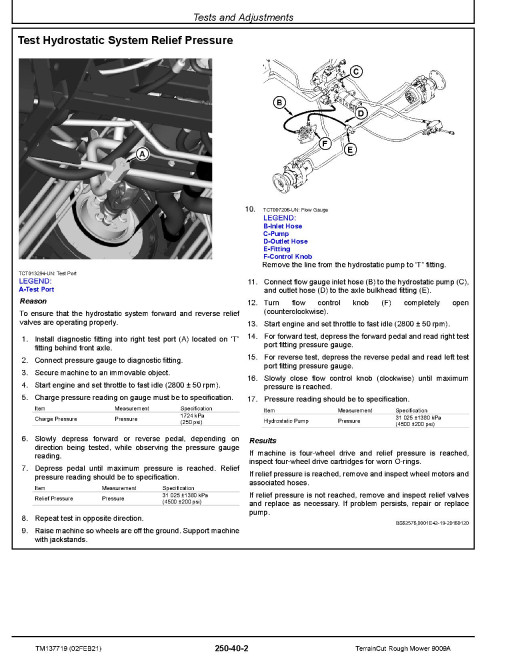

      Tests and Adjustments
   Steering and Brake Operation, Tests, and Adjustments
      Component Location
      Theory of Operation
      Diagnosis
      Tests and Adjustments
   Attachments Operation, Tests, and Adjustments
      Component Location
      Theory of Operation
      Diagnosis
      Tests and Adjustments
   Service Tools
      Tools and Kits
