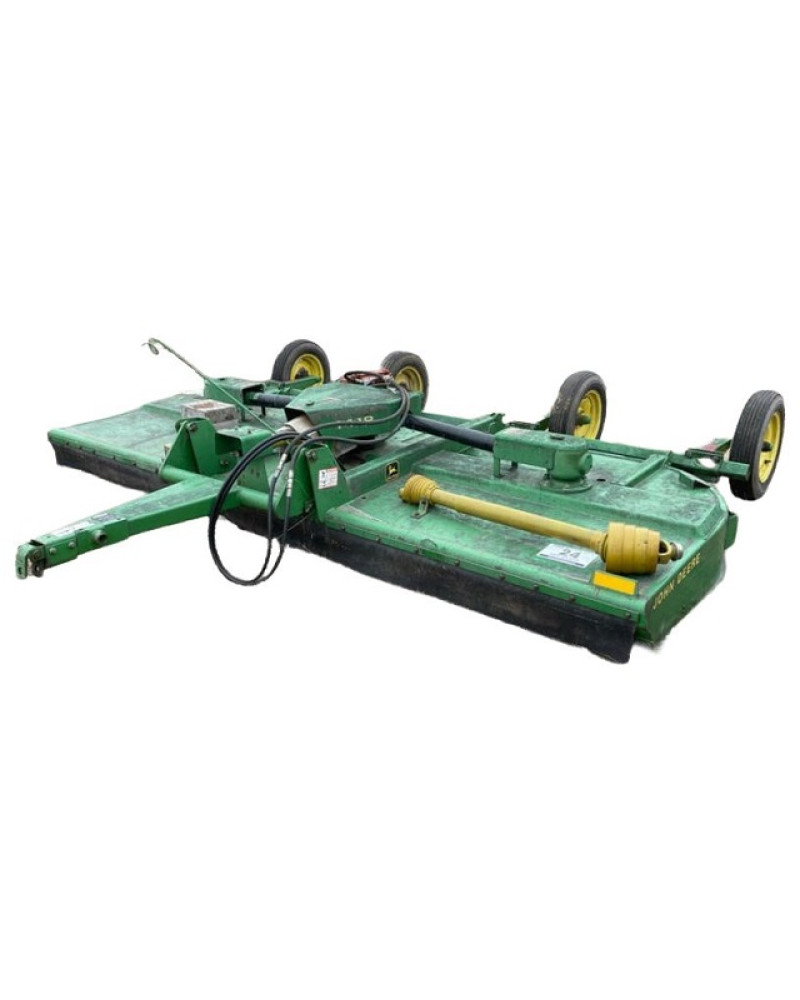

John Deere 1008, 1408, 1418, 1508, 403, 503, 506, 509, 603, 606, 609 and 709 Rotary Cutters Technical Manual (TM1394)

Illustrated factory Technical Manual for John Deere Rotary Cutters Models 1008, 1408, 1418, 1508, 403, 503, 506, 509, 603, 606, 609 and 709.

This manual will assist you in diagnosing, and repairing for your rotary cutter.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   1008
   1408
   1418
   1508
   403
   503
   506
   509
   603
   606
   609
   709

Format: PDF, 272 pages
Language: English
Publication Date: 01 May 1987
Table of Contents:
   SAFETY AND SPECIFICATIONS
      Introduction and Safety Information
      General Specifications
      Hardware Torque
      Lubrication
      Serial Numbers
   DRIVELINE REPAIR
      Specifications

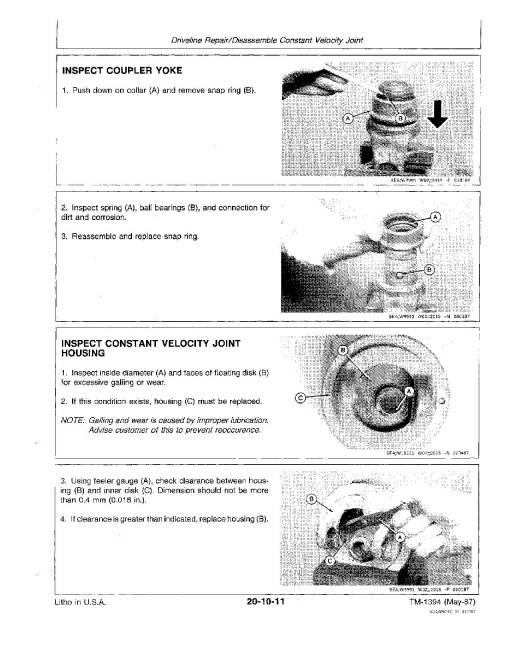

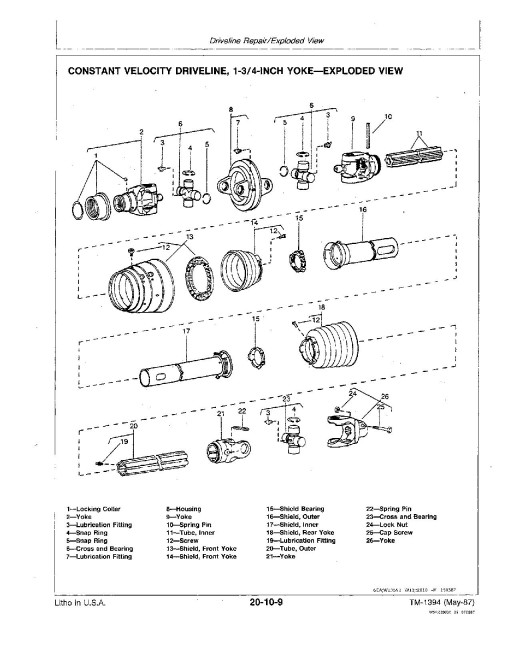

      Driveline Repair
      Driveline Shield Repair
   CLUTCH AND SHEAR DEVICE REPAIR
      Shear Device Repair
      Slip Clutch Repair
   GEAR CASE REPAIR
      General Information
      3 Series Gear Case Repair
      6 Series Gear Case Repair
      8 Series Outer and 9 Series Gear Case Repair
      1008 Integral or Center Pull-Type Center Gear Case Repair
      1008 Offset Pull- Type, Left-Hand Gear Case Repair

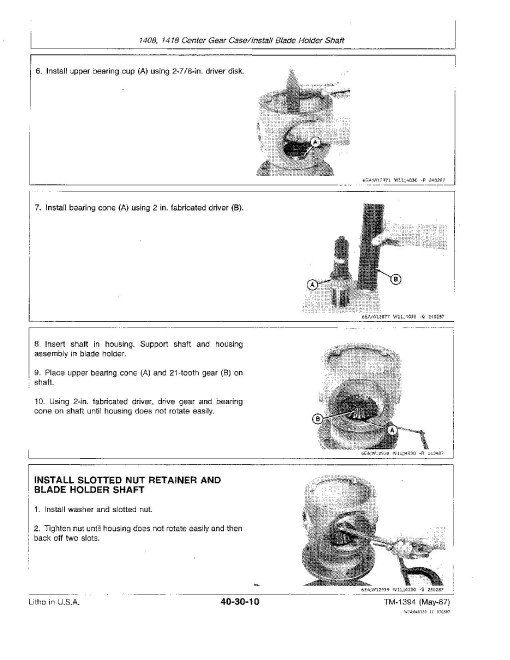

      1408, 1418 Center Gear Case Repair
      1508 Center Gear Case Repair
   MISCELLANEOUS REPAIR
      Blades
      Blade Holders
      1408 Frame Replacement
