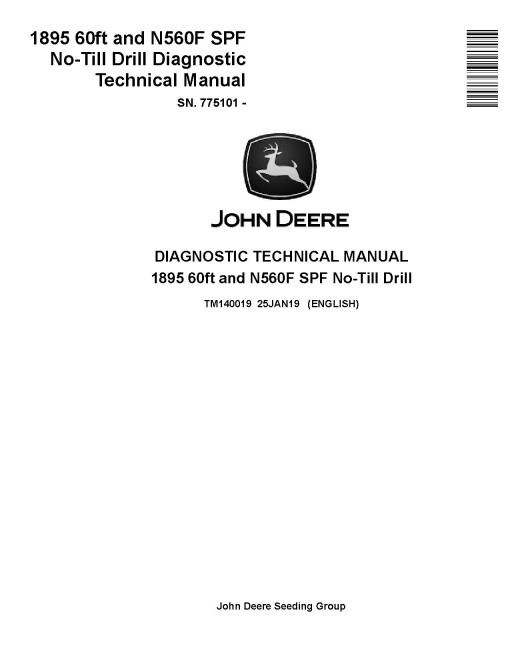

John Deere 1895 60ft and N560F SPF No-Till Drills (SN. from 775101) Diagnostic Manual (TM140019)

Illustrated factory Diagnostic Manual for John Deere No-Till Drills Models 1895 60ft and N560F SPF.

This manual will assist you in diagnosing for your no-till drill.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   1895 60ft (SN: 775101-)
   N560F SPF (SN: 775101-)

Format: PDF, 560 pages
Language: English
Publication Date: 25 Jan 2019
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      General References
      References for Technical Information
   Diagnostic Trouble Codes (DTC)
      Blockage Monitoring Unit (BMU)
      Independent Depth Control (IDC)
      Tower Blockage Module (TBM)
   Observable Symptom and System Diagnostics
      All-Run Blockage Observable Symptoms
      CAN Bus Observable Symptoms
      Primary Blockage Observable Symptoms
      Height Sensors Observable Symptoms
      Lighting - Transport Lights (NA) Observable Symptoms
      TruSet Depth Control Observable Symptoms
      Wing Fold Observable Symptoms
      Fold/Unfold Control Observable Symptoms
   Electrical
      General Information
      Calibration Procedures
      Theory of Operation
      Schematic
      Diagnostic Tests and Adjustments
   Electronic Control Units
      General Information
      Reprogramming Air Seeder Controllers
      Programming Electronic Control Units
      Blockage Monitoring Control Unit (BMU) Diagnostic Addresses
      Independent Depth Control (IDC) Unit Diagnostic Addresses
      Tower Blockage Monitor (TBM) Diagnostic Addresses
   Electrical Component Information
      General Information

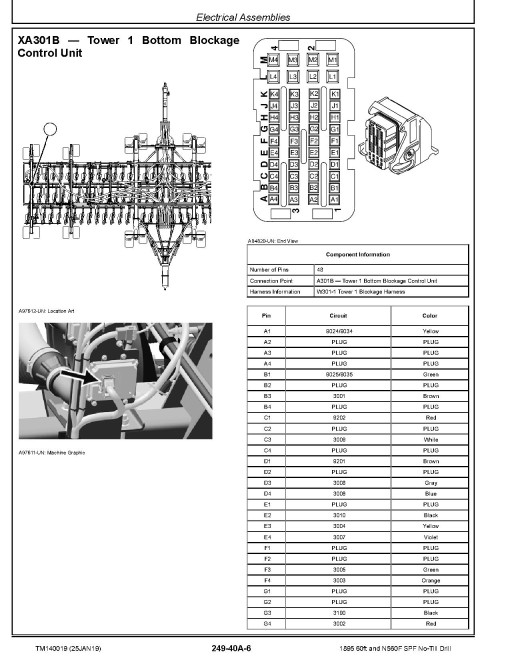

      Electrical Assemblies

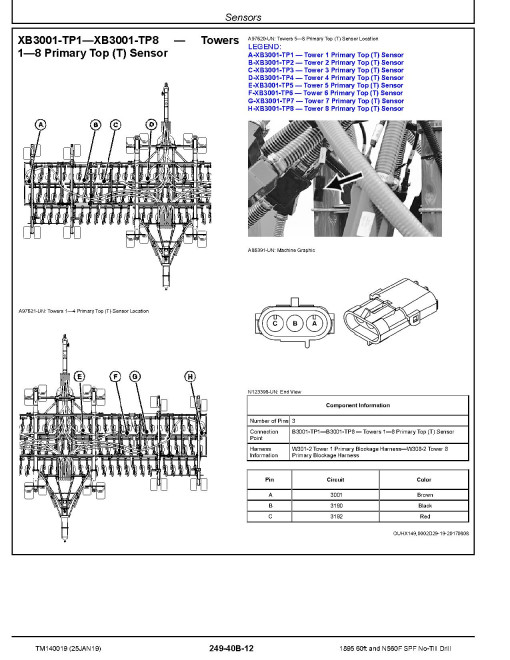

      Sensors
      Lights
      Fuses
      Switches
      Interconnects and Ground Points
      Electronically Actuated Mechanical Devices
   Hydraulics
      General Information
      Theory of Operation
      Schematic
      Diagnostic Tests and Adjustments
   Hydraulics Component Information
      General Information
      Sensor or Gauge
      Cylinder, Actuator, or Piston
      Check Valve
      Valve Block, Assembly, or Gearcase
      Orifice
      Valve

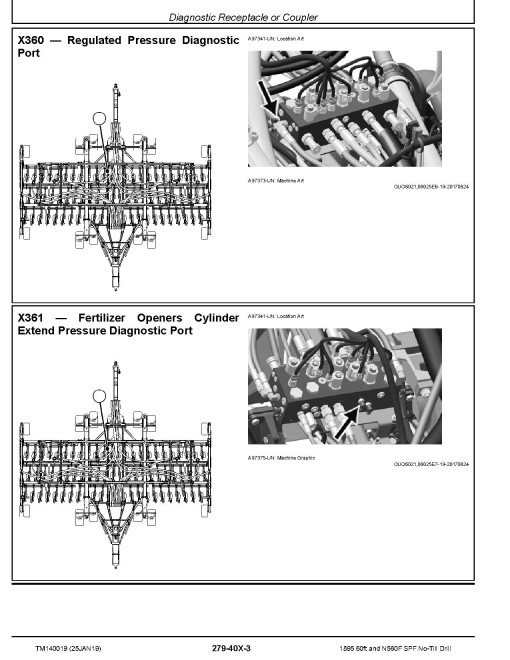

      Diagnostic Receptacle or Coupler
      Solenoid Valve
   Fertilizer
      Theory of Operation
      Schematic
      Diagnostic Tests and Adjustments
   Fertilizer Component Information
      Sensors
      Solenoid Valve
   Tools
      General Information
