Hitachi Zaxis 350LC-5A (PIN from 1F9DDKG1_ _D070001) Crawler Excavators Repair Manual (TM14380X19)

Illustrated factory Repair Manual for Hitachi Zaxis Crawler Excavators Models 350LC-5A.

This manual will assist you in assembling, disassembling, and repairing for your crawler excavator.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   Zaxis 350LC-5A (PIN: 1F9DDKG1_ _D070001-)

Format: PDF, 364 pages
Publication Date: 21 Jan 2021
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      Torque Values
   Tracks

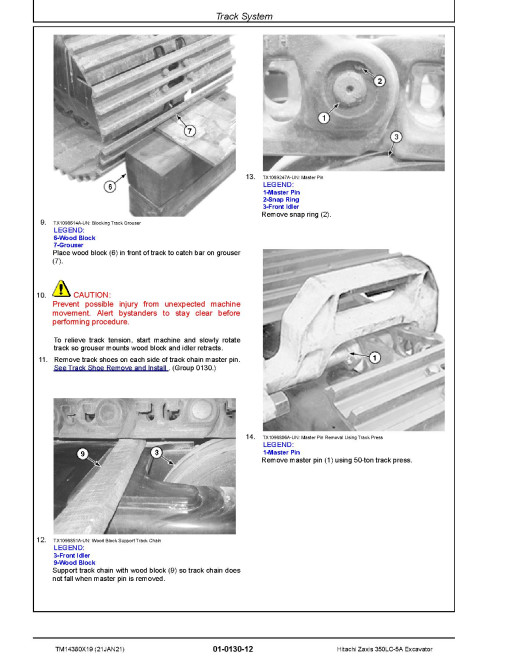

      Track System
   Axles, Differentials, and Suspension Systems
      Axle Shaft, Bearings, and Reduction Gears
      Hydraulic System
   Engine

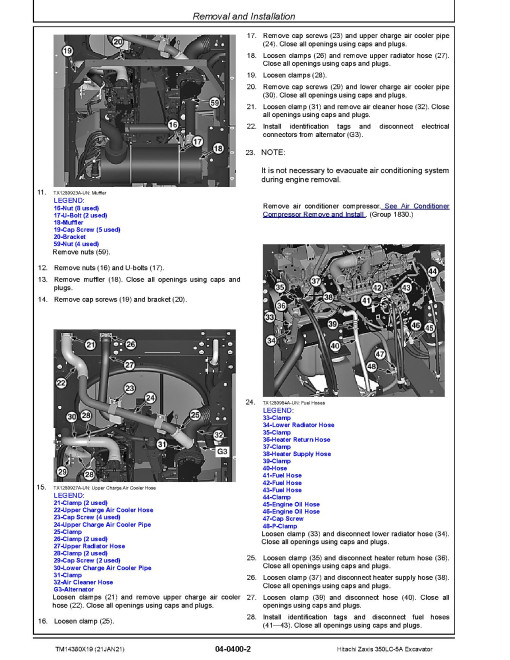

      Removal and Installation
   Engine Auxiliary System
      Cooling Systems
      External Fuel Supply Systems
   Damper Drive (Flex Coupling)
      Elements
   Frame or Supporting Structure
      Frame Installation
      Chassis Weights
   Operator`s Station
      Removal and Installation
      Operator Enclosure
      Seat and Seat Belt
      Heating and Air Conditioning
   Sheet Metal and Styling
      Hood and Engine Side Shields
   Excavator
      Buckets
      Frames
      Hydraulic System

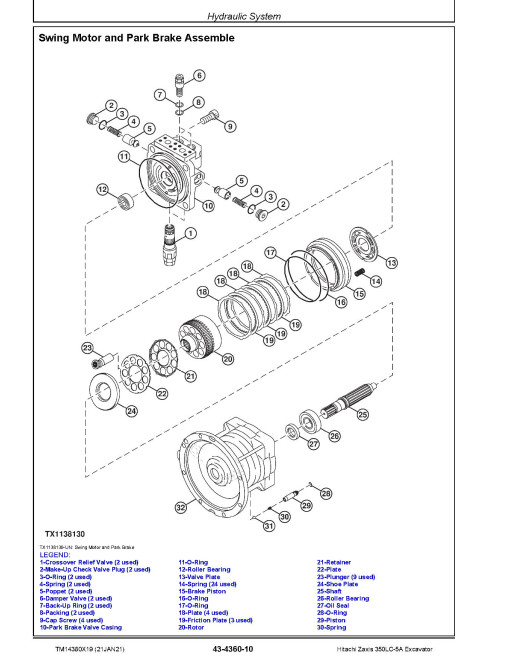

   Swing or Pivoting System
      Mechanical Drive Elements
      Hydraulic System
   Dealer Fabricated Tools
      Dealer Fabricated Tools
