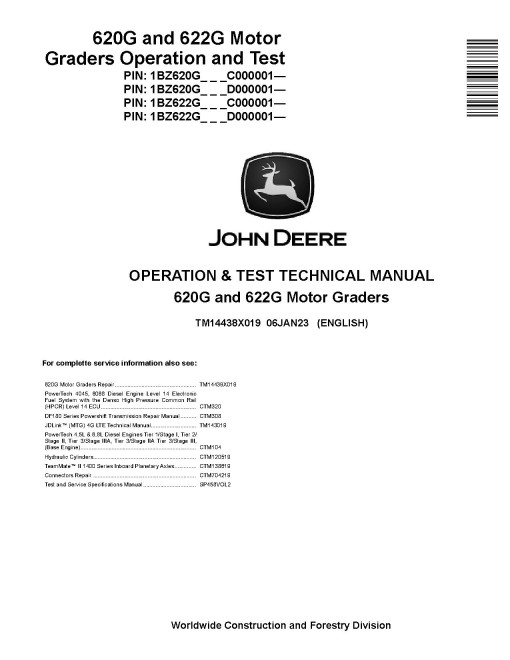

John Deere 620G and 622G Motor Graders (SN. from C000001, D000001) Operation and Test Manual (TM14438X019)

Illustrated factory Operation and Test Manual for John Deere Motor Graders Models 620G and 622G.

This manual will assist you in diagnosing, and troubleshooting for your motor grader.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   620G (PIN: 1BZ620G_ _ _ C000001-; 1BZ620G_ _ _ D000001-)
   622G (PIN: 1BZ622G_ _ _ C000001-; 1BZ622G_ _ _ D000001-)

Format: PDF, 1050 pages
Language: English
Publication Date: 06 Jan 2023
Table of Contents:
   Introduction
      Foreword
      Manual Identification - READ THIS FIRST!
      Serial Number Listing Information
   General Information
      Safety
   Diagnostics
      General Information
      Transmission Control Unit (TCU) Diagnostic Trouble Codes
      Engine Control Unit (ECU) Diagnostic Trouble Codes
      Primary Display Unit (PDU) Diagnostic Trouble Codes
      Vehicle Control Unit (VCU) Diagnostic Trouble Codes
      Switch Module 1 (SM1) Diagnostic Trouble Codes
      Six-Wheel Drive (6WD) Diagnostic Trouble Codes
      Cab Video Display (VC1) Diagnostic Trouble Codes
      Gear Selector Module (GSM) Diagnostic Trouble Codes
   Operational Checkout Procedure
      Operational Checkout Procedure
   Engine
      Theory of Operation

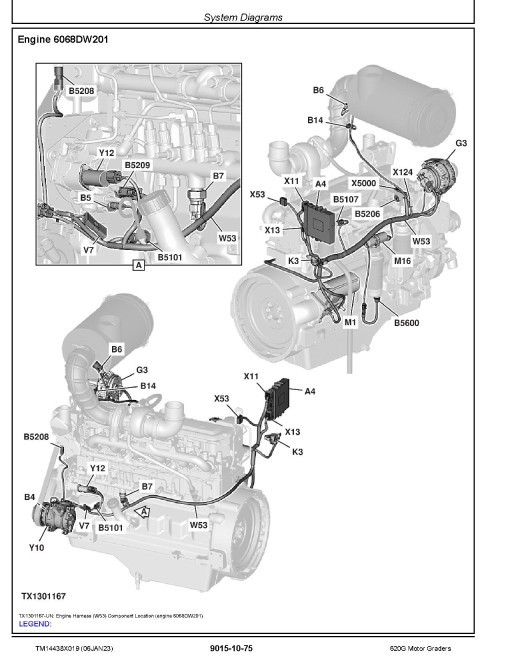

      System Diagrams
      Diagnostic Information
      Tests
   Electrical System
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Monitor Operation
      Diagnostic Test Box
      Adjustments
      Tests
   Six-Wheel Drive (6WD)
      Theory of Operation

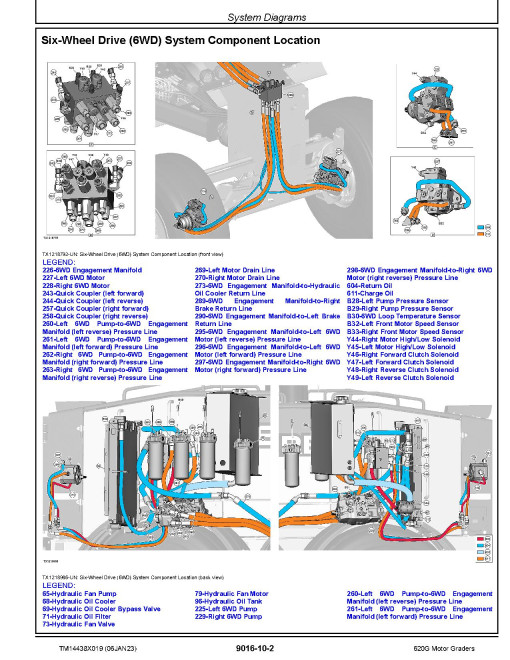

      System Diagrams
      Diagnostic Information
      Adjustments
      Tests
   Power Train
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests
   Hydraulic System

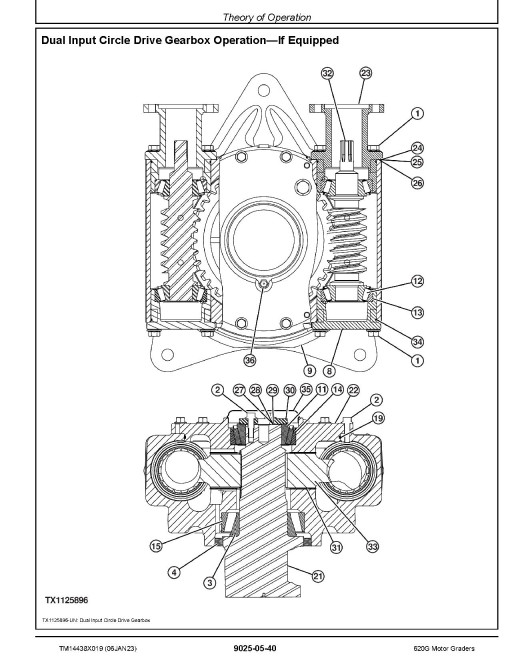

      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests
   Heating and Air Conditioning
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests
   APPENDIX
      Section 9000
      Section 9001
      Section 9005
      Section 9010
      Section 9015
      Section 9016
      Section 9020
      Section 9025
      Section 9031
