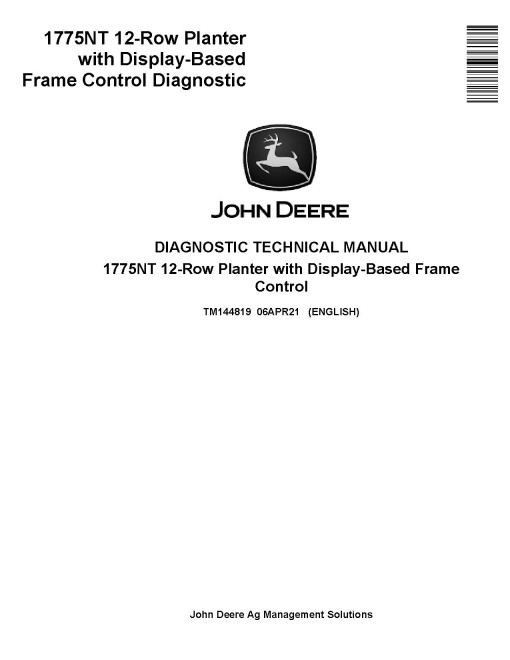

John Deere 1775NT 12 Row Planters with Display-Based Frame Control Diagnostic Manual (TM144819)

Illustrated factory Diagnostic Manual for John Deere Planters with Display-Based Frame Control Models 1775NT 12 Row.

This manual will assist you in diagnosing for your planter.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   1775NT 12 Row

Format: PDF, 956 pages
Language: English
Publication Date: 06 Apr 2021
Table of Contents:
   Introduction
      Foreword
   General Information
      Acronym Table
      How to Use This Manual
      Safety
      Lubricants
      Recommended Tools for Diagnostics
      Diagnostic Philosophy
      Diagnostic Information for Electrical Components
      Diagnostic Information for Hydraulic Components
      Maintaining Hydraulic Systems and Components
      Standard Torque Chart Procedures
   Diagnostic Trouble Codes
      Accessing Diagnostic Trouble Codes
      Closing Wheel Controller (CWC) Codes
      Electric Power Generation (EPG) Codes
      Inertial Measurement Unit (IMU) Codes
      JDLink (JDL) Codes
      Blockage Controller (LBC) Codes
      Master Nozzle Controller (MB1) Codes
      Meter Master Controller (MMC) Codes
      Master Nozzle Controller (MNA) Codes
      Planter Assist Controller (PAC) Codes
      Row Cleaner Control (RCC) Codes
      Row Unit Controller (RUC) Codes
      Spray Rate Controller (SRC) Codes
   Observable Symptoms and System Diagnostics
      Observable Symptoms
   Electrical
      General Information
      Theory of Operation
      Schematics
      Diagnostics
   Electronic Control Units
      Accessing Diagnostic Addresses
      Diagnostic Addresses by Control Unit
      Diagnostic Tests and Adjustments
   Electrical Connectors

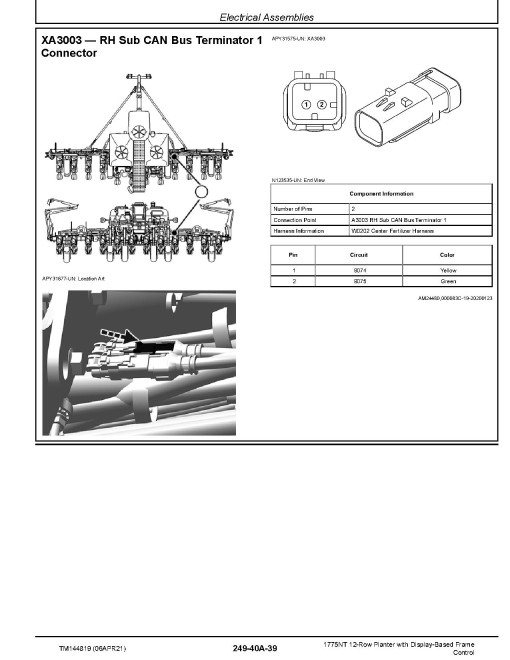

      Electrical Assemblies

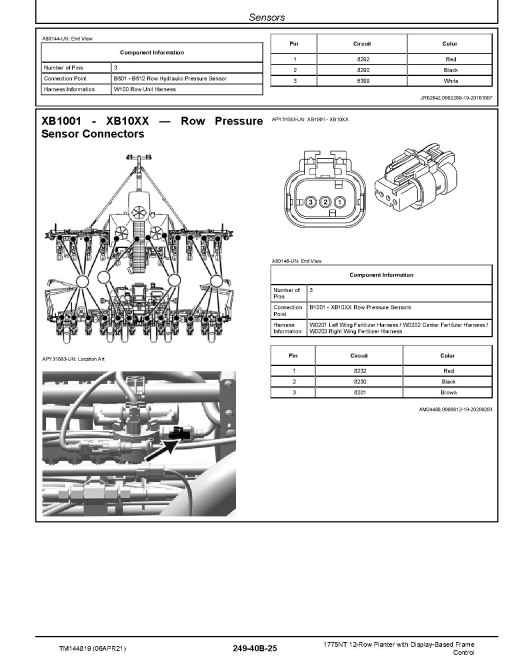

      Sensors
      Lights
      Fuses
      Charging
      Relays
      Motors
      Resistor
      Switches
      Wiring Harnesses
      Interconnects
      Electronically Actuated Mechanical Devices
   Hydraulics
      Hydraulic Specifications
      Theory of Operation
      Schematics
      Diagnostics
   Hydraulic Component Information
      Accumulator
      Sensor or Gauge

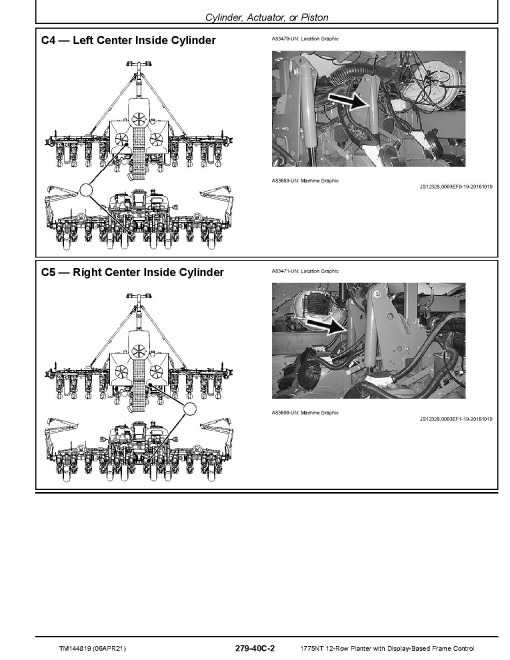

      Cylinder, Actuator, or Piston
      Check Valve
      Filter
      Valve Block, Assembly, or Gearcase
      Cooler
      Motor
      Orifice
      Valve
      Diagnostic Receptacle or Coupler
      Solenoid Valve
   Pneumatics
      Theory of Operation
      Schematics
      Diagnostics
   Pneumatic Components
      Accumulators
      Sensors
      Check Valves
      Filters
      Assembly Groups
      Pumps
      Reservoirs
      Valves
      Solenoid Valves
   Tools
      Service Tools and Kits
