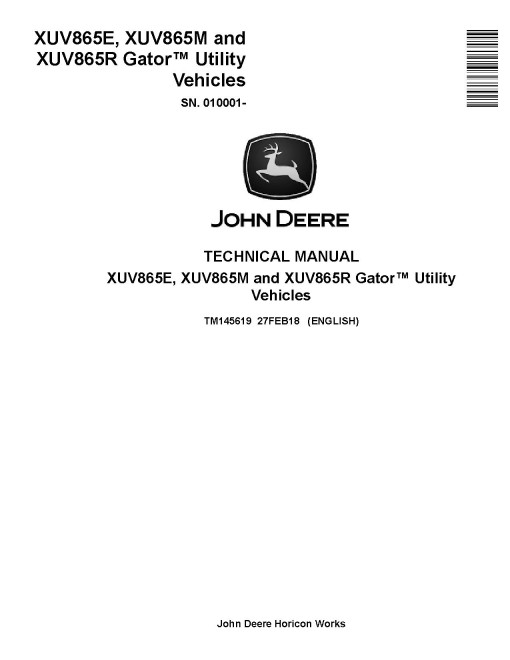

John Deere XUV865E, XUV865M and XUV865R Gator Utility Vehicles Technical Manual (TM145619) - REPLACED BY TM168719

REPLACED BY TM168719

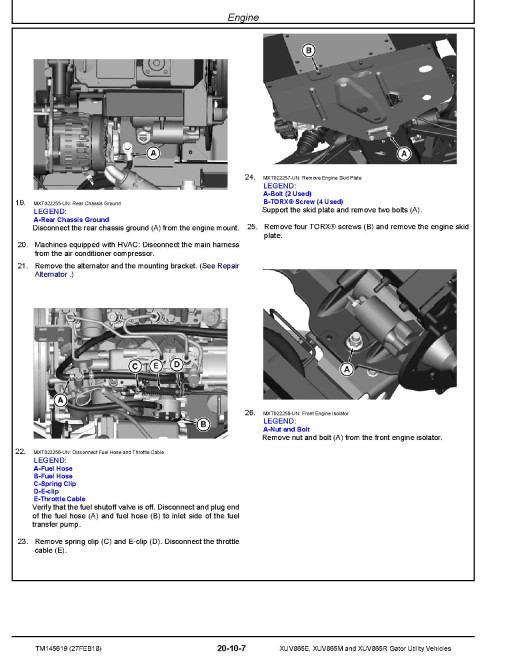

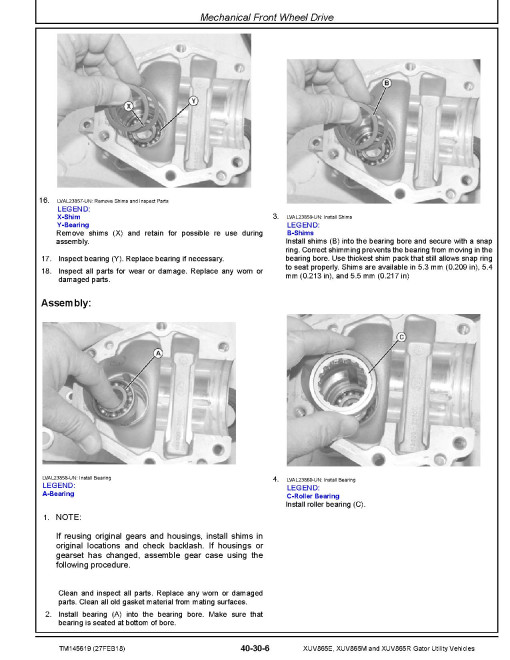

Illustrated factory Technical Manual for John Deere Gator Utility Vehicles Models XUV865E, XUV865M and XUV865R.

This manual will assist you in diagnosing, and repairing for your gator utility vehicle.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   XUV865E (SN: 010001-040000)
   XUV865M (SN: 010001-040000)
   XUV865R (SN: 010001-040000)

Format: PDF, 615 pages
Language: English
Publication Date: 27 Feb 2018
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      General Specifications
      Fuel and Lubricants
      Machine Specifications
   Engine Repair
      Engine
   Electrical Repair
      Wiring Harnesses
   Power Train Repair
      Transmission
      Axles and Driveshaft
      Mechanical Front Wheel Drive
   Steering and Brake Repair
      Steering
      Brakes
   Operator`s Station Repair
      Operator`s Station
   Miscellaneous Repair
      Wheels
      Hood, Cargo Box, and Bumper
      Miscellaneous Repair
   Engine Operation, Tests, and Adjustments
      Component Location
      Theory of Operation
      Diagnosis
      Tests and Adjustments
   Electrical Operation, Tests, and Adjustments
      General Information
      Component Location
      Theory of Operation

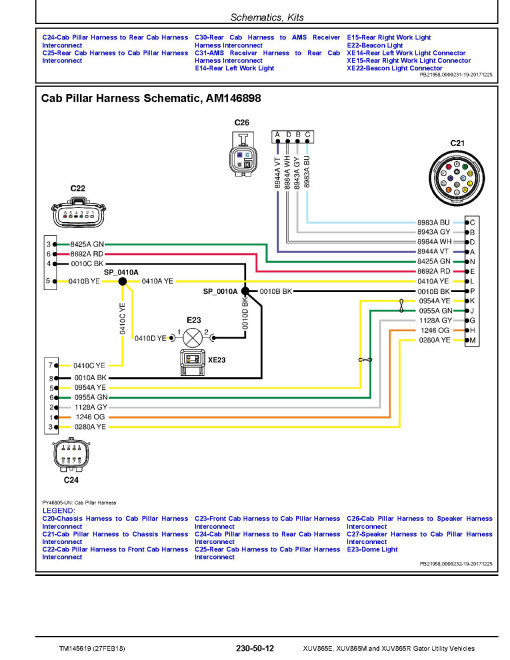

      Schematics
      Schematics, Kits
      Connector Information
      Tests and Adjustments
   Control Unit Operation, Tests and Adjustments
      Theory of Operation
      Diagnostic Trouble Codes, ICC
      Diagnostic Trouble Codes, SCU
      Service ADVISOR Readings
   Power Train Operation, Tests, and Adjustments
      Component Location
      Theory of Operation
      Diagnosis
      Tests and Adjustments
   Steering and Brake Operation, Tests, and Adjustments
      Component Location
      Theory of Operation
      Diagnosis
      Tests and Adjustments
   Service Tools
      Service Tools and Kits
