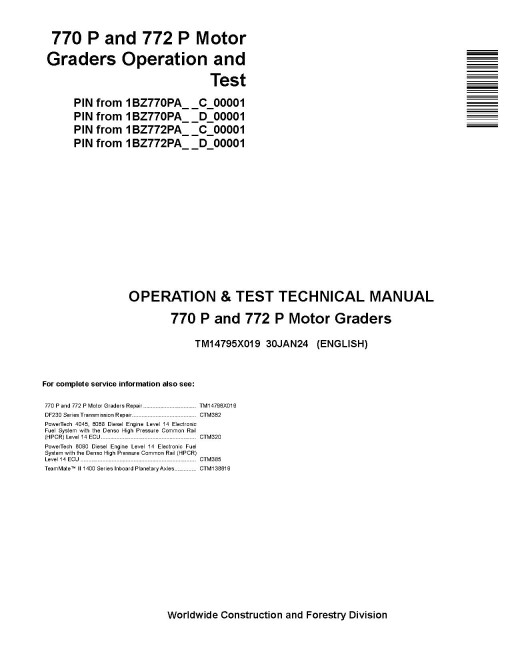

John Deere 770 P, 772 P Motor Graders (SN. from C_ 00001,D_ 00001) WITHOUT ELECTRICAL DIAGRAMS Operation and Test Manual (TM14795X019)

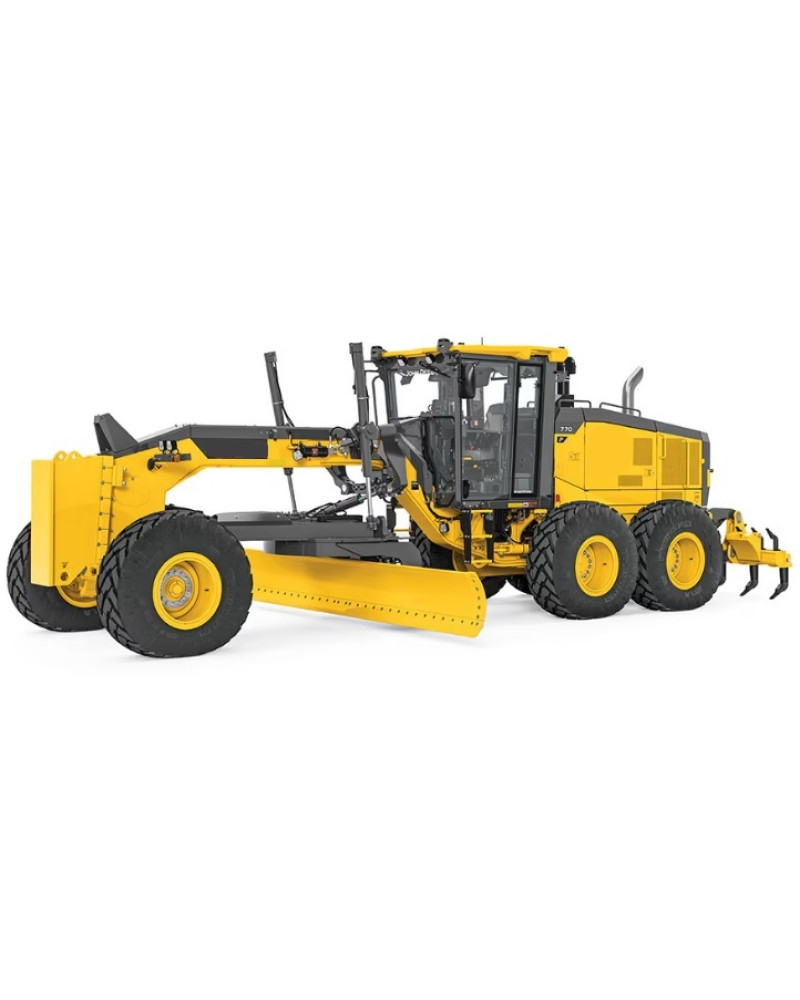

Illustrated factory Operation and Test Manual for John Deere Motor Graders Models 770P and 772P.

ELECTRICAL DIAGRAMS IS NOT AVAILABLE!

This manual will assist you in diagnosing, and troubleshooting for your motor grader.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   770P (PIN: 1BZ770PA_ _C_ 00001-; 1BZ770PA_ _D_ 00001-)
   772P (PIN: 1BZ772PA_ _C_ 00001-; 1BZ772PA_ _D_ 00001-)

Format: PDF, 1493 pages
Language: English
Publication Date: 30 Jan 2024
Table of Contents:
   Introduction
      Foreword
      Manual Identification - READ THIS FIRST!
      Serial Number Listing Information
   General Information
      Safety
      General Specifications
   Diagnostics
      General Information
      Transmission Control Unit (TCU) Diagnostic Trouble Codes
      Engine Control Unit (ECU) Diagnostic Trouble Codes
      Primary Display Unit (PDU) Diagnostic Trouble Codes
      Vehicle Control Unit (VCU) Diagnostic Trouble Codes
      Hydraulic Valve Controller (HVC) Diagnostic Trouble Codes
      Auxiliary Valve Controller (AVC) Diagnostic Trouble Codes
      Switch Module 1 (SM1) Diagnostic Trouble Codes
      Six-Wheel Drive (6WD) Diagnostic Trouble Codes
      Cab Video Display (VC1) Diagnostic Trouble Codes
      Gear Selector Module (GSM) Diagnostic Trouble Codes
      Right Electrohydraulic (EH) Dual Joystick Control (JR1) Diagnostic Trouble Codes
      Left Electrohydraulic (EH) Dual Joystick Control (JL1) Diagnostic Trouble Codes
   Operational Checkout Procedure
      Operational Checkout Procedure
   Engine
      Theory of Operation

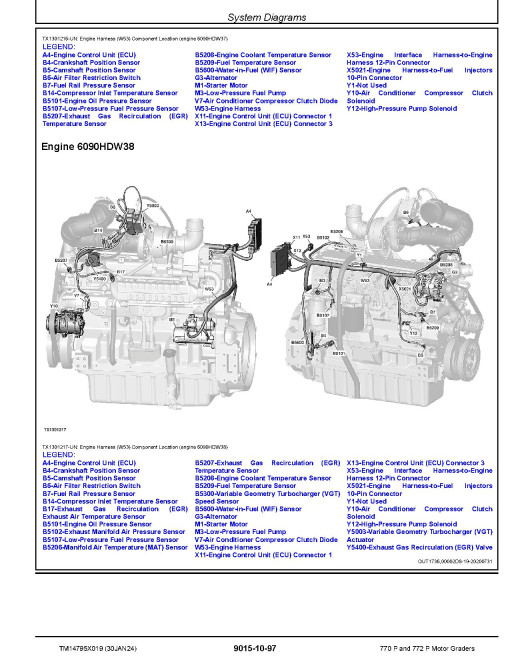

      System Diagrams
      Diagnostic Information
      Tests
   Electrical System
      Theory of Operation
      System Diagrams - NOT AVAILABLE!
      Electrical Component Diagnostic Information
      Diagnostic Information
      Display Operation
      Diagnostic Test Box

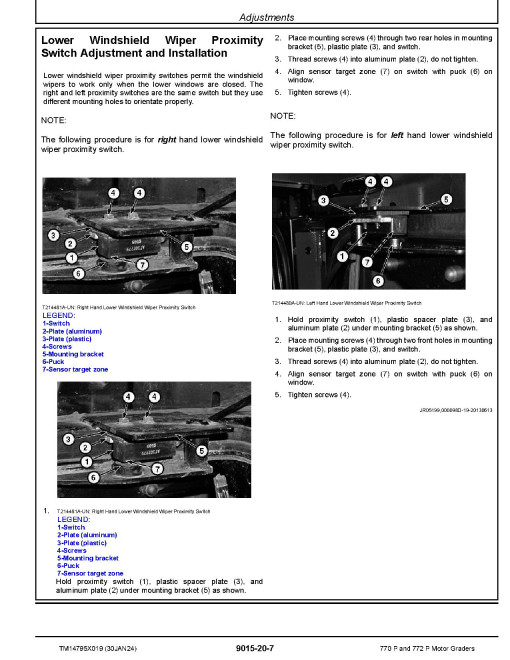

      Adjustments
      Tests
   Six-Wheel Drive (6WD)
      Theory of Operation

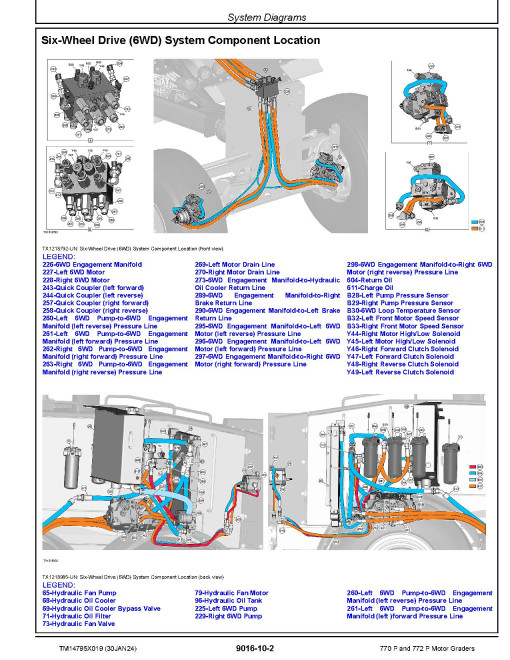

      System Diagrams
      Diagnostic Information
      Adjustments
      Tests
   Power Train
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests
   Hydraulic System
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Adjustments
      Tests
   Heating and Air Conditioning
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests
