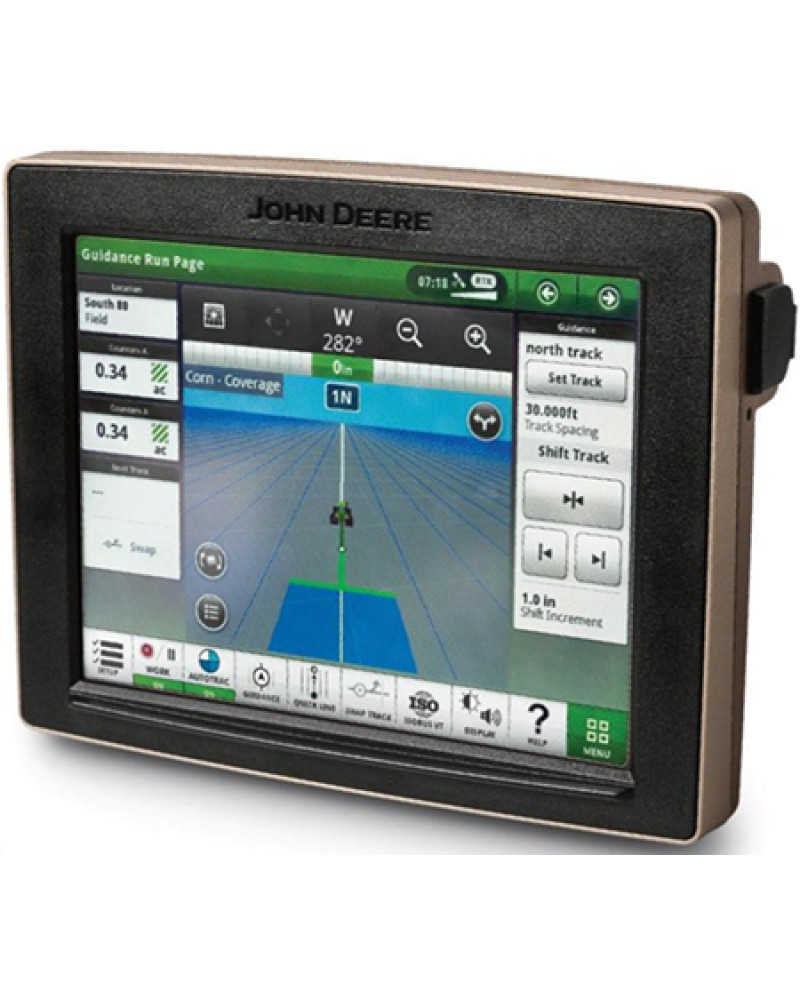

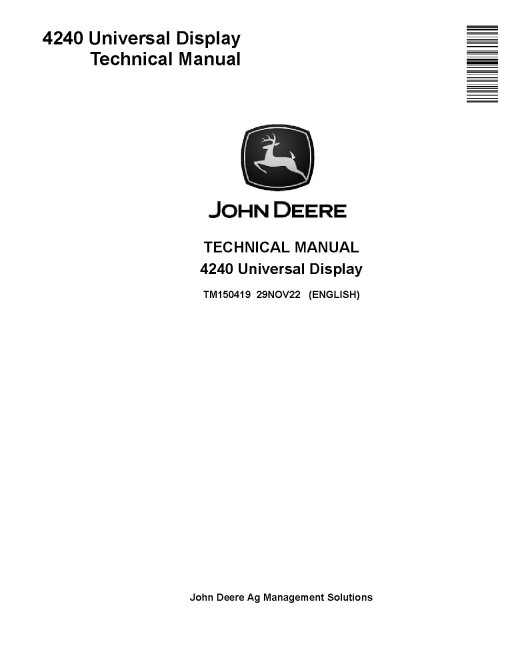

John Deere 4240 Universal Display Technical Manual (TM150419)

Illustrated factory Technical Manual for John Deere Displays Models 4240.

This manual will assist you in diagnosing, and repairing for your display.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   4240

Format: PDF, 327 pages
Language: English
Publication Date: 29 Nov 2022
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      General References
      References for Technical Information
      4240 Universal Display Theory of Operation
      AutoTrac Guidance Theory of Operation
      Equipment Manager Theory of Operation
      Fields and Boundaries Theory of Operation
      File Manager Theory of Operation
      Flags Theory of Operation
      ISOBUS Tractor Implement Management
      ISOBUS Virtual Terminal and Virtual Implement Theory of Operations
      Mapping Theory of Operation
      Radar Control Unit
      Overlap Control Theory of Operation
      Section Control Theory of Operation
      Software Manager Theory of Operation
      System Tab Applications Theory of Operation
      Work Monitor Theory of Operation
      Work Setup Theory of Operation
      Work Totals Theory of Operation
      Factory Support Information
   Diagnostic Trouble Codes
      Virtual Terminal Implement Software DTCs (VTi)
      Virtual Terminal Vehicle Software DTCs (VTV)
   Observable Symptom and System Diagnostics
      Electronic Control Units- Display Symptoms
      Electronic Control Units- AutoTrac Symptoms
      Electronic Control Units- File Manager
      Electronic Control Units- ISOBUS Virtual Terminal and Virtual Implement
      Electronic Control Units- Section Control
      Electronic Control Units- Software Manager
      Electronic Control Units- Work Monitor
   Electrical
      General Information
      Diagnostic Tests and Adjustments
   Electronic Control Units
      General Information
      Operational and Preliminary Checks
      Interactive Tests and Calibrations
      Programming Electronic Control Units
      Schematic
      Display Schematic
      ISOBUS Tractor Implement Management Schematic
      Diagnostic Test and Adjustments
      AutoTrac Guidance Diagnostic Test and Adjustments
      Radar Control Unit Software Addresses (RDR)
      Virtual Terminal Implement Software Addresses (VTi)
      Virtual Terminal Vehicle Software Addresses (VTV)
   Electrical Component Information
      General Information
      Electrical Assemblies
      Fuses
      Wiring Harnesses
      Interconnects and Ground Points
   Steering
      Operational and Preliminary Checks
      Diagnostic Tests and Adjustments
