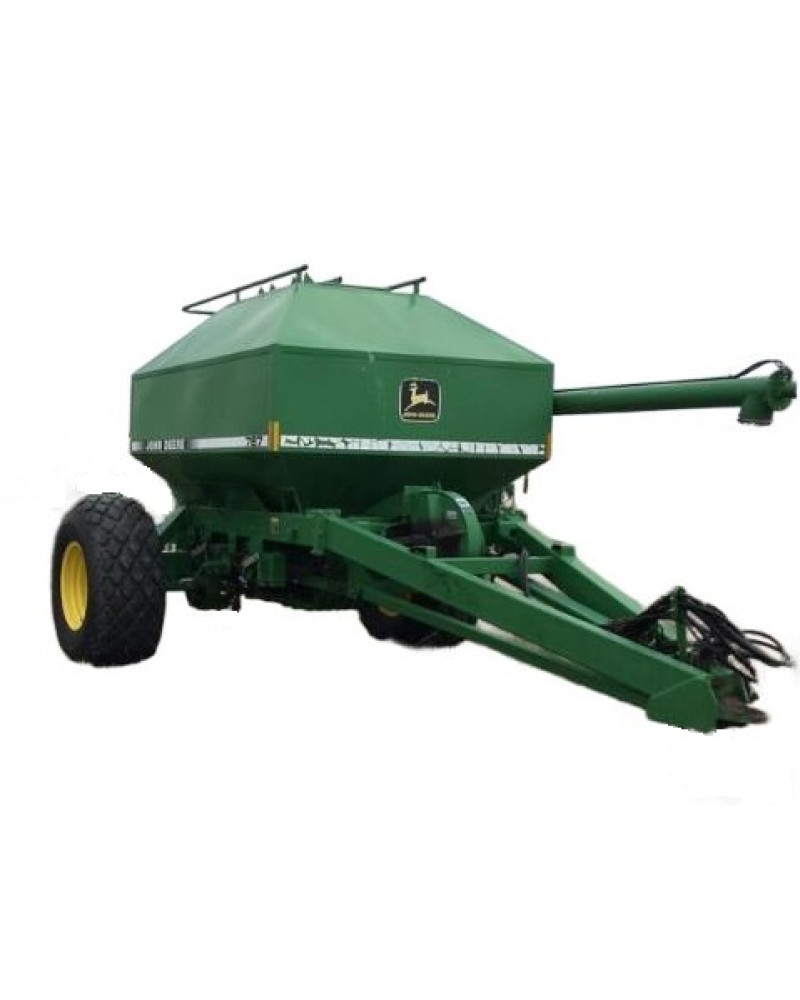

John Deere 787 Air Seeding Systems Technical Manual (TM1577)

Illustrated factory Technical Manual for John Deere Air Seeding Systems Models 787.

This manual will assist you in diagnosing, and repairing for your air seeding system.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   787

Format: PDF, 250 pages
Language: English
Publication Date: 19 Jun 2002
Table of Contents:
   SAFETY AND GENERAL INFORMATION
      Safety
      Lubricants

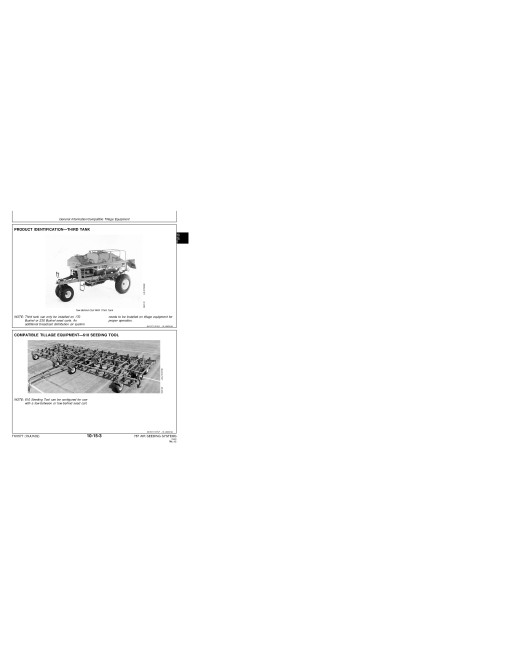

      General Information
      Repair Specifications
   WELDING
      Repair and Welding
   AIR SYSTEM
      System and Component Repair
   ELECTRICAL AND MONITOR SYSTEMS
      Component Replacement
      Connector Repair
   METER DRIVE SYSTEM
      Meter Drive Repair
   CASTER AND WHEEL BEARINGS
      Caster and Wheel Bearings
   HYDRAULIC SYSTEM COMPONENTS
      Component Repair
   MISCELLANEOUS
      Auger Repair
   AIR SYSTEM THEORY OF OPERATION, TESTS AND TROUBLESHOOTING
      Air System Theory of Operation
      Tests
      Troubleshooting
   ELECTRICAL AND MONITOR DIAGNOSIS AND TESTS
      Electrical and Monitor Systems Component Identification
      Wiring Diagrams—170/230 Bushel and Third Tank
      Wiring Diagrams—130 Bushel
      170/230 Bushel and Third Tank Monitor System Troubleshooting
      130 Bushel Monitor System Troubleshooting

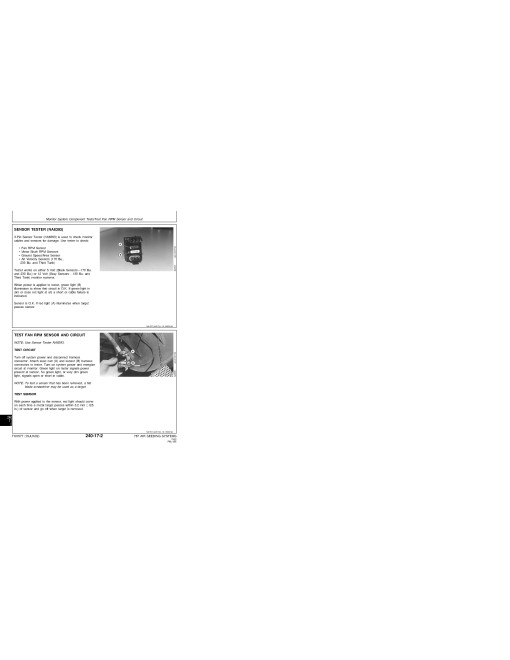

      Monitor System Component Tests
      Electrical System Component Tests and Troubleshooting
   METER DRIVE THEORY OF OPERATION, TESTS AND TROUBLESHOOTING
      Meter Drive Theory of Operation
      Tests and Adjustments
      Troubleshooting
   CASTER WHEEL ADJUSTMENTS
      Brake Pad Adjustment
   HYDRAULIC SYSTEM

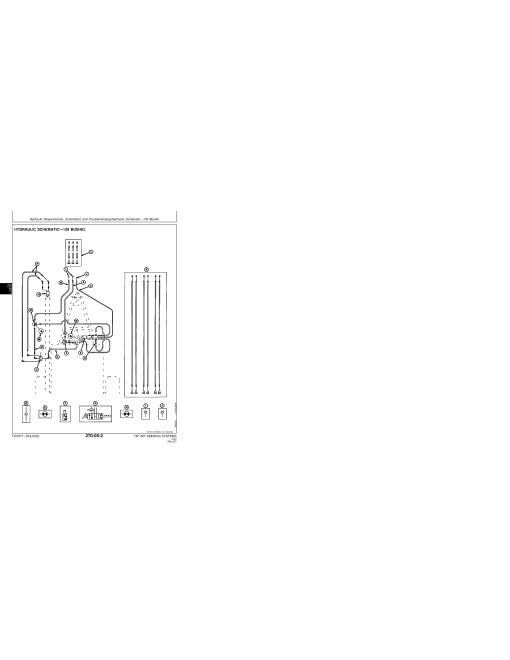

      Hydraulic Requirements, Schematics and Troubleshooting
   MISCELLANEOUS
      Auger Adjustments and Troubleshooting
   Index
