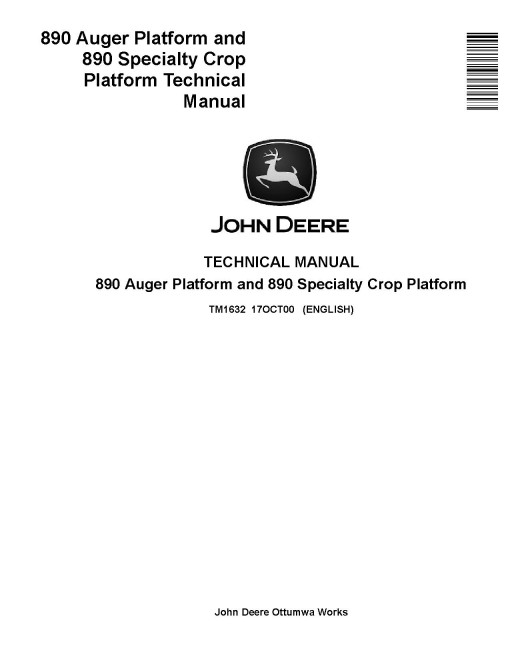

John Deere 890 Auger and Specialty Crop Platforms Technical Manual (TM1632)

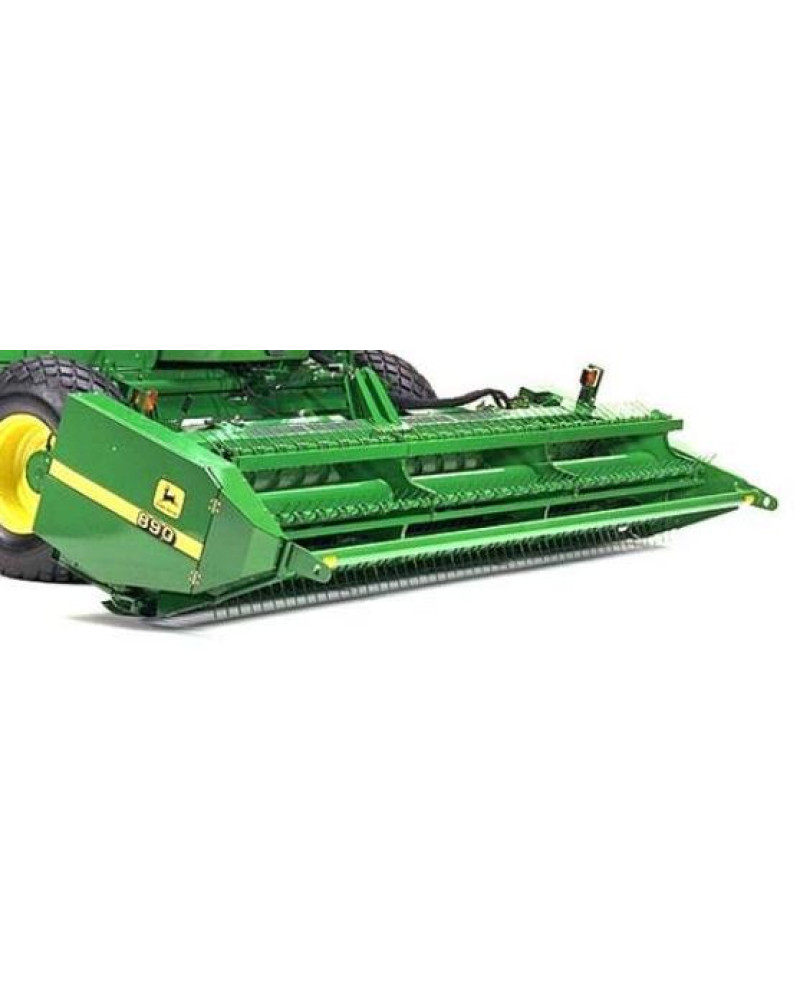

Illustrated factory Technical Manual for John Deere Auger & Specialty Crop Platforms Models 890.

This manual will assist you in diagnosing, and repairing for your auger platform.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   890

Format: PDF, 242 pages
Language: English
Publication Date: 17 Oct 2000
Table of Contents:
   Introduction
      Foreword
      Service Technician Response
   General
      Safety
      Specifications
      General Information
      Lubrication
   Platform Drives
      General Information
      Components
      Knife Drive Sheave and Belt

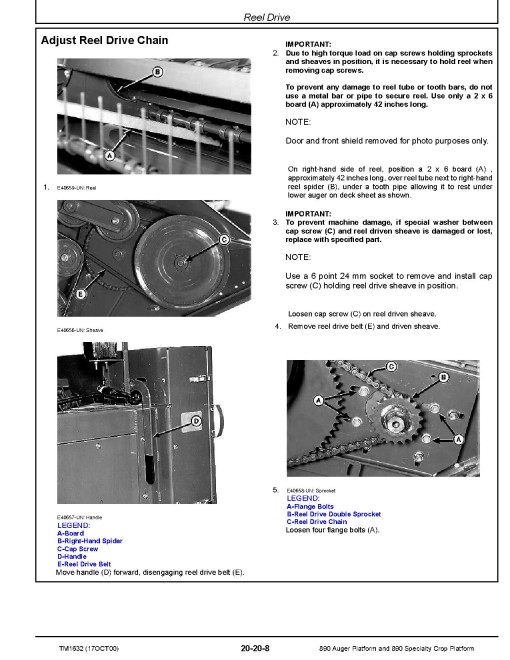

      Reel Drive
      Auger Drives
      Conditioner Driveline
      Main Gear Case
   Reel
      General Information
      Diagnosing Malfunctions
      Reel
      Reel Cam and Reel Cam Followers
      Reel Teeth, Reel Bar, and Reel Bar Bearings
      Hydraulic Driven Reel (If Equipped)
   Augers
      General Information
      Diagnosing Malfunctions
      Components
      Adjust Strippers to Augers
      Auger Bearings and End Shafts

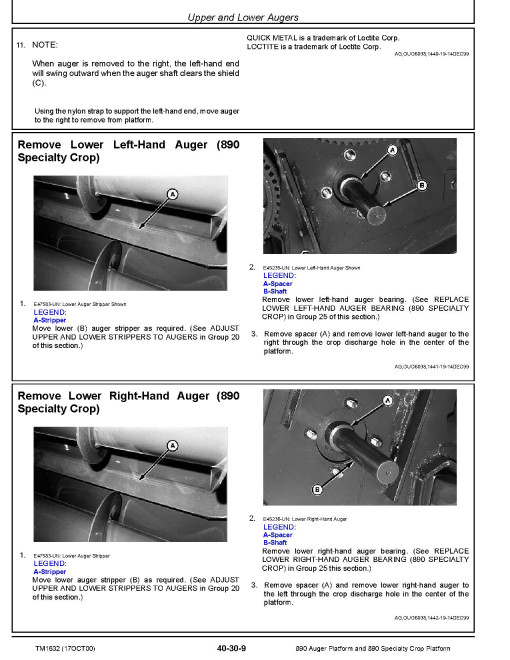

      Upper and Lower Augers
   Cutterbar and Cutting Components
      General Information
      Diagnosing Malfunctions
      Knife Sections
      Knives
      Knife Drive
      Cutterbar
   Electrical System
      General Information
      Turn/Warning Lights
      Connector Repair
   Conditioner
      General Information
      Diagnosing Malfunctions
      Conditioner Roll Adjustments
      Conditioner Roll Bearings Repair

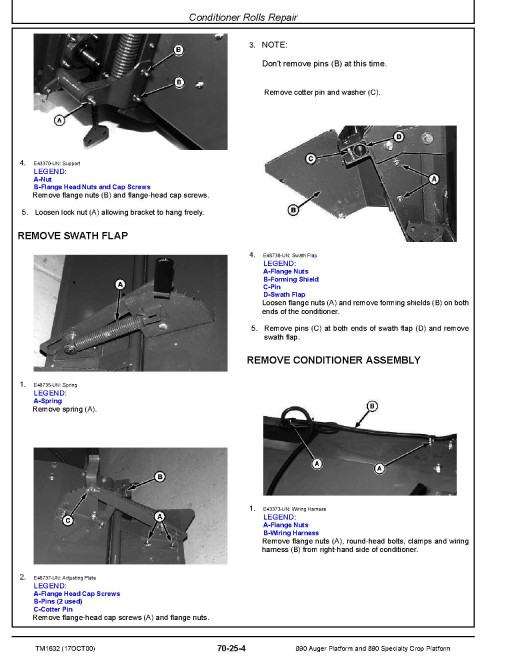

      Conditioner Rolls Repair
