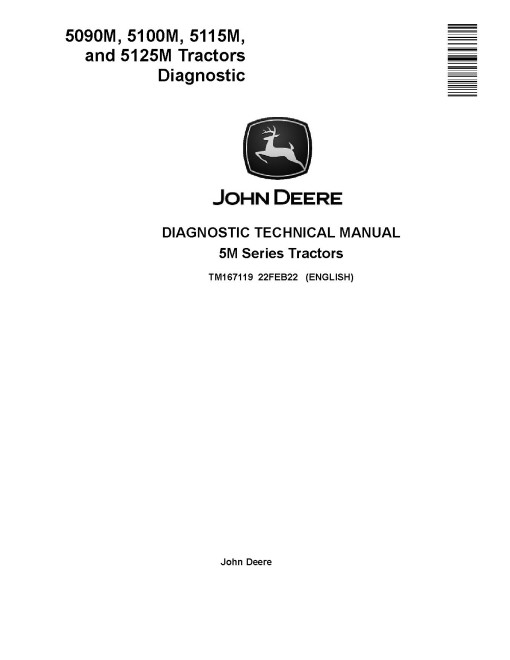

John Deere 5090M, 5100M, 5115M and 5125M Tractors Operation and Test Manual (TM167119)

Illustrated factory Operation and Test Manual for John Deere Tractors Models 5090M, 5100M, 5115M and 5125M.

This manual will assist you in diagnosing, and troubleshooting for your tractor.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   5090M
   5100M
   5115M
   5125M

Format: PDF, 1277 pages
Language: English
Publication Date: 22 Feb 2022
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      General References
      How to Use This Manual
      Machine and Technical References
   Diagnostic Trouble Codes
      ABV Code Diagnosis
      AIC Code Diagnosis
      CCU Code Diagnosis
      CLC Code Diagnosis
      CSA Code Diagnosis
      CSM Code Diagnosis
      ECU Code Diagnosis
      EIC Code Diagnosis
      FCC Code Diagnostics
      GM2 Code Diagnosis
      HCC Code Diagnosis
      HV1 Code Diagnosis
      JDL Code Diagnosis
      MFC Code Diagnosis
      OIC Code Diagnostics
      PDU Code Diagnosis
      PTF Code Diagnosis
      PTU Code Diagnosis
      RPT Code Diagnosis
      SCC Code Diagnosis
      SMB Code Diagnosis
      TEC Code Diagnosis
      TIU Code Diagnosis
      VLC Code Diagnosis
      VTV Code Diagnosis
      XMC Code Diagnosis
      XSC Code Diagnosis
   Observable Symptoms and System Diagnostics
      General References
      Engine Diagnostics
      Fuel, Air, and Cooling Diagnostics
      Electrical Diagnostics
      Electronic Control Unit Diagnostics
      Transmission Diagnostics
      Drive Systems Diagnostics
      Brakes Diagnostics
      Steering Diagnostics
      Hydraulic Diagnostics - Open Center
      Operator Station Diagnostics
   Engine
      General References
      Calibrations, Preliminary and Operational Checks
      Theory of Operation
      Schematics
      Components and Connectors
      Tests and Adjustments
   Fuel, Air, and Cooling
      General References
      Calibrations, Preliminary and Operational Checks
      Theory of Operation
      Schematics
      Components and Connectors
      Tests and Adjustments
   Electrical General and Theory of Operation
      General References
      Engine Auxiliaries
      Starting, Neutral Start, Charging, and Battery Disconnect
      Power Outlets, Implement Connectors, and ISOBus
      Lighting and Brakes
      Tractor and Implement CAN Bus
      Primary Display
      Control Unit Power and Ground
      Transmission
      Drive Systems
      AutoTrac Steering
      Hydraulics
      Operator Station, Wipers, and Alarms
   Electrical Schematics
      General References

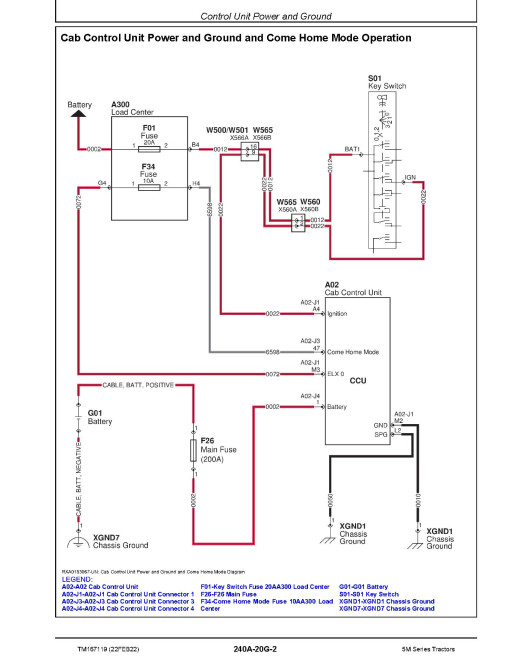

      Starting, Charging, Power Outlets, and Grounds
      Implement Connectors
      Cab Control Unit
      Rear 2 Control Unit
      Backup Alarm and Fuel Heater
      Mid-Mount SCV Grapple
      Primary Display
      Engine Control Unit 4.5L
      CAN and Service Advisor
      JDLink
      Heating, Ventilation, and Air Conditioning
      Front PTO
      Front Wiper and Washer
      Rear Wiper and Washer
      Radio and Courtesy Lights
      Seat
      AutoTrac Integrated
      AutoTrac Basic
      ISOBUS, Starfire, and GreenStar
      Tractor Equipment Communication Control Unit
      CAN-to-Bluetooth Control Unit
   Electrical Components and Connectors
      General References
      Assemblies, Modules, and Control Units
      Sensors
      Worklights and Various Devices
      Fuses and Protection Devices
      Batteries and Charging
      Warning Lights, Alarms, and Signaling Devices
      Relays
      Motors
      Resistors
      Switches
      Diodes

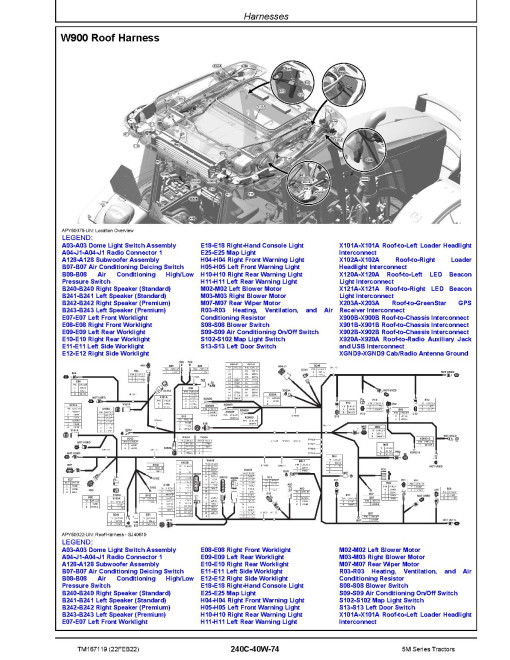

      Harnesses
      Connectors
      Grounds
      Interconnects
      Solenoids and Electrically Actuated Mechanical Devices
   Electrical Tests and Adjustments
      General References
      Tests and Adjustments
   Electronic Control Units
      General References
      Calibrations, Preliminary and Operational Checks
      Theory of Operation
      Schematics
      Components and Connectors
      Tests and Adjustments
      AutoTrac Basic Vehicle Navigation (ABV)
      Armrest Interface Control (AIC)
      Chassis Control Unit (CCU)
      Cab Load Center (CLC)
      Reassignable Selective Control Valve (CSA)
      Cab Switch Module (CSM)
      Engine Control (ECU) 4.5L
      Engine Interface Control (EIC)
      Front Console Control (FCC)
      Management Computer (GM2)
      Hitch Control Unit (HCC)
      Hitch Valve Control (HV1)
      JDLink (JDL)
      Multi-Function Control (MFC)
      Operator Interface Control (OIC)
      Primary Display Unit (PDU)
      Front PTO Control (PTF)
      Power Train Utility (PTU)
      Rear PTO Control (RPT)
      Selective Control Valve (SCC)
      Sequence Control (SMB)
      Tractor Equipment Control (TEC)
      Transmission Shift Control (TIU)
      Vehicle Load Center (VLC)
      Virtual Terminal Vehicle (VTV)
      AutoTrac Main Control (XMC)
      AutoTrac Supervisor Control (XSC)
   Transmission
      General References
      Calibrations, Preliminary and Operational Checks
      Transmission Identification
      Park Lock Theory of Operation
      Control Valves Theory of Operation
      Forward and Reverse Theory of Operation
      Speed Theory of Operation
      Range Theory of Operation
      Creeper Theory of Operation
      Lubrication Theory of Operation
      Schematics
      Components and Connectors
      Tests and Adjustments
   Drive Systems
      General References
      Calibrations, Preliminary and Operational Checks
      Differential Theory of Operation
      Differential Lock Theory of Operation
      Final Drive Theory of Operation
      Front PTO Theory of Operation

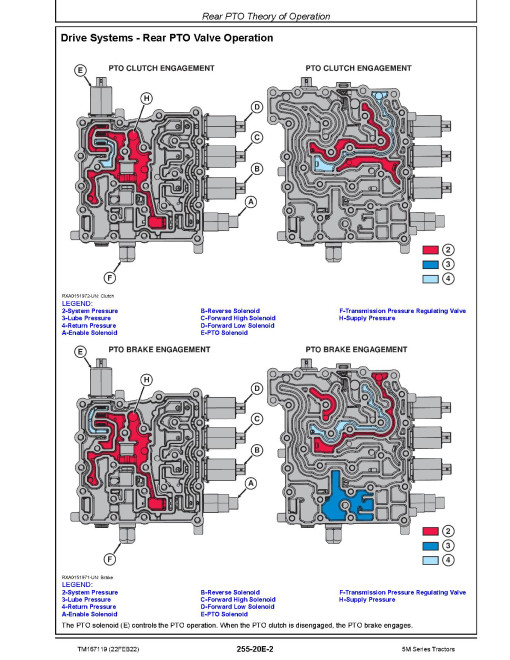

      Rear PTO Theory of Operation
      MFWD Theory of Operation
      Schematics
      Components and Connectors
      Tests and Adjustments
   Brakes
      General References
      Calibrations, Preliminary and Operational Checks
      Theory of Operation
      Schematics
      Components and Connectors
      Tests and Adjustments
   Steering
      General References
      Calibrations, Preliminary and Operational Checks
      Theory of Operation
      Schematics
      Components and Connectors
      Tests and Adjustments
   Hydraulics - Open Center
      General References
      Calibrations, Preliminary and Operational Checks
      Hydraulic Filter Theory of Operation
      Hydraulic Pump Theory of Operation
      Electrohydraulic Rear Hitch Theory of Operation
      Front Hitch Theory of Operation
      Dual Mid-Mount SCV Theory of Operation
      Triple Mid-Mount SCV Theory of Operation
      Dual Rear SCV Theory of Operation
      Triple Rear SCV Theory of Operation
      Power Beyond Theory of Operation
      Quick Disconnect Coupler Theory of Operation
      Schematics
      Components and Connectors
      Tests and Adjustments
   Operator Station
      General References
      Calibrations, Preliminary and Operational Checks
      Heating, Ventilation, and Air Conditioning Theory of Operation
      Seat Theory of Operation
      Schematics
      Components and Connectors
      Tests and Adjustments
   Special Tools
      General References
      Dealer Fabricated Tools
      Section 240A
      Section 240B
      Section 240C
      Section 240D
