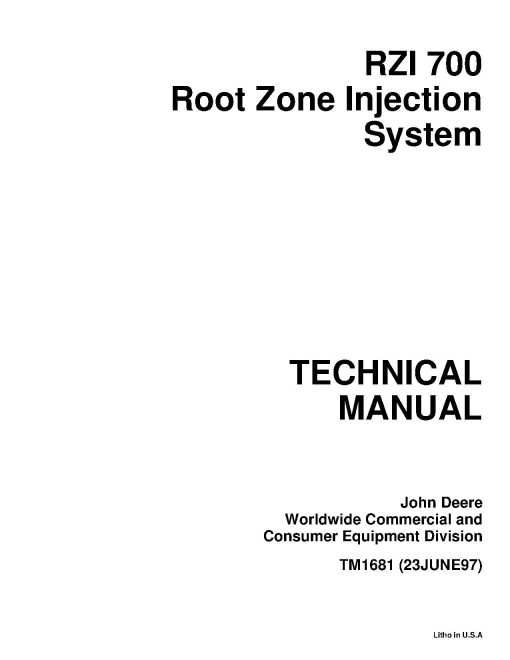

John Deere RZI700 Root Zone Injection Systems Technical Manual (TM1681)

Illustrated factory Technical Manual for John Deere Root Zone Injection Systems Models RZI700.

This manual will assist you in diagnosing, and repairing for your root zone injection system.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   RZI700

Format: PDF, 156 pages
Language: English
Publication Date: 23 Jun 1997
Table of Contents:
   Introduction
   Safety
   Specifications and Information
      Specifications
      Metric Fastener Torque Values
      O-Ring Seal Service Recomendations
      Inch Fastener Torque Values
      Lubricant Information
      Serical and Product Identification Number Locations

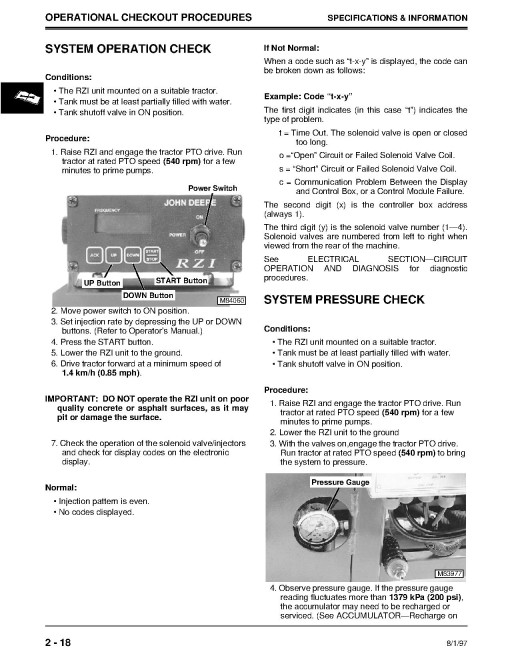

      Operational Checkout Procedures
   Electrical
      Specifications
      Reading Schematics
      Theory and Diagnostic Information
      Component Location
      Electrical Schematics and Harnesses
      Troubleshooting
      Operation and Diagnosis
      Checks, Tests and Adjustments
      Repair
   Power Train
      Specifications
      Service Parts Kits
      Component Location
      Troubleshooting
      Diagnosis
      Checks, Tests and Adjustments
      Repair
   Pumps
      Specifications
      Other Materials
      Service Parts Kits

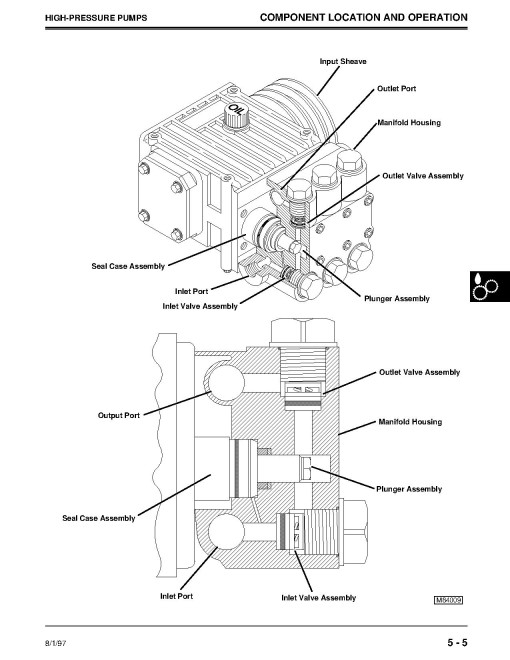

      Component Location and Operation
      Troubleshooting
      Diagnosis
      Checks, Tests and Adjustments
      Repair
   Injection System
      Specifications
      Other Materials
      Service Parts Kits
      JIC Hydraulic/Injection Circuit Symbols
      Schematic
      Component Location and Operation
      Troubleshooting
      Diagnosis
      Checks, Tests and Adjustments
      Repair
   Miscellaneous
      Specifications
      Other Materials
      Adjustments
      Repair
   Index
