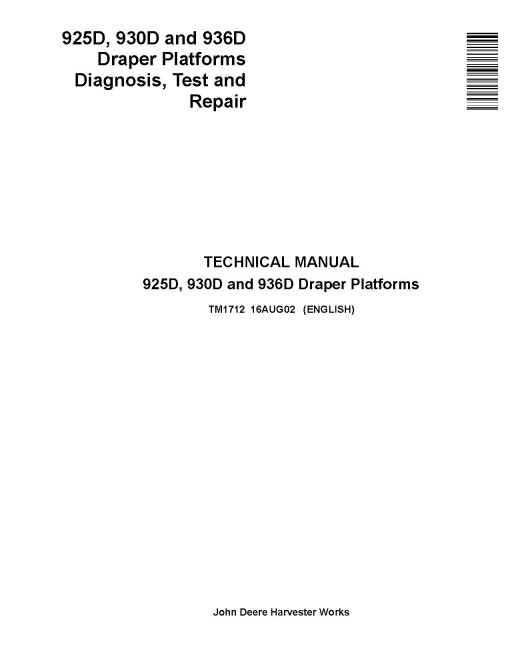

John Deere 925D, 930D and 936D Draper Platforms Technical Manual (TM1712)

Illustrated factory Technical Manual for John Deere Draper Platforms Models 925D, 930D and 936D.

This manual will assist you in diagnosing, and repairing for your combine or draper platform.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   925D
   930D
   936D

Format: PDF, 288 pages
Language: English
Publication Date: 16 Aug 2002
Table of Contents:
   Introduction
      Foreword
      John Deere Dealers
   General
      Safety
      Identification
      Specifications
      Lubrication
   Cutterbar
      Platform Cutterbar
   Reel and Feed Drum

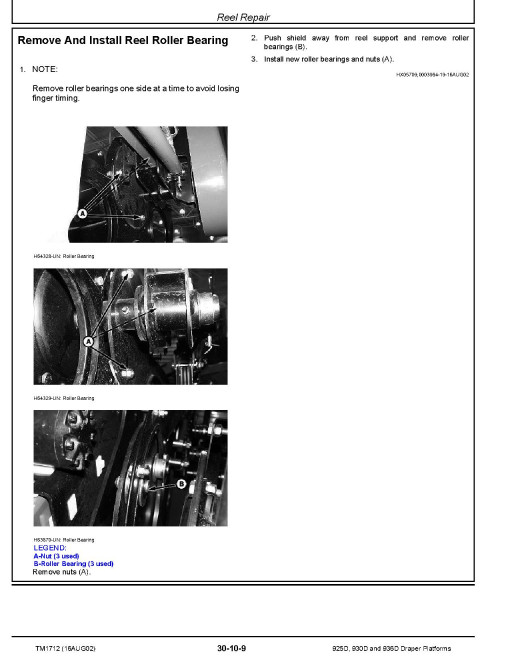

      Feed Drum Repair
      Reel Repair
   Electrical
      Components
      Bulbs
      Harness Repair
   Drives
      Main Gear Case
      Drivelines
   Draper Belt

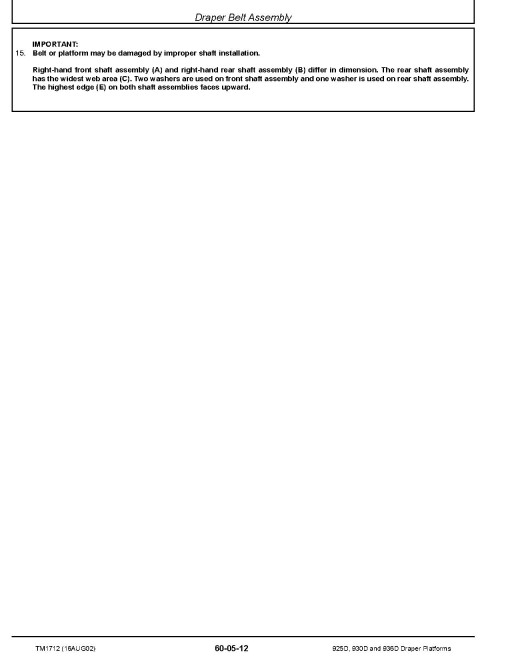

      Draper Belt Assembly
   Hydraulics
      Reel Lift And Fore/Aft Cylinders
      Motors And Pump
      Valve
   Frame
      Suspension
   General
      Header Identification
      General Specifications
      Diagnostic and Testing Procedures
      Operational Checkout
   Electrical System Diagnosis and Tests
      How to use this diagnostic Information
      General Electrical System Diagnostic Information
      Diagnostic Schematic and Schematic Symbols Information
      Seven Step Electrical Test Procedure
      Service Equipment and Tools
      Glossary
      Draper Speed Adjust Diagnostics
      DIAL-A-SPEED Diagnostics

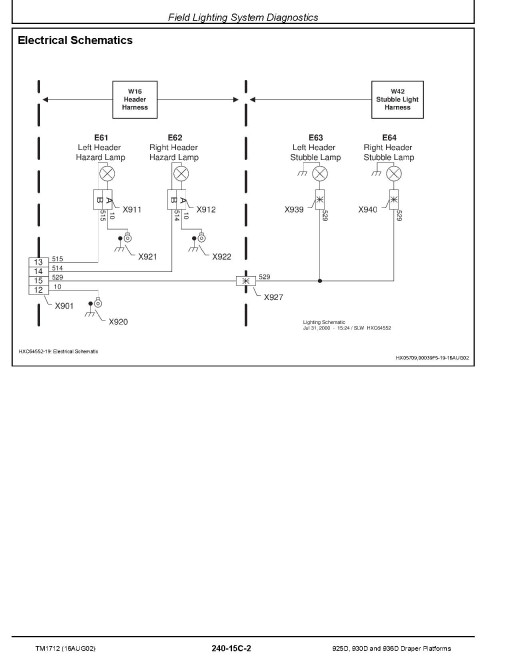

      Field Lighting System Diagnostics
      Trailer Lighting Diagnostics
      Circuit Code Listing
      Connector Information (end views, numbers, location photos)
   Hydraulic Operations And Tests
      Hydraulic System General Information
      Test Procedures And Adjustments
      Draper Belt Speed Diagnostics
      Reel Fore And Aft Diagnostics
      Reel Raise And Lower Diagnostics
      Draper Reel Speed Diagnostics
      Component Location
