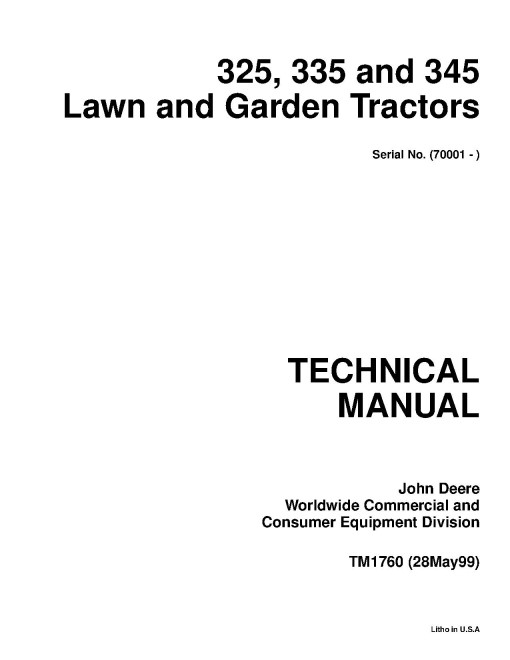

John Deere 325, 335 and 345 (SN: 70001-) Lawn and Garden Tractors Technical Manual (TM1760)

Illustrated factory Technical Manual for John Deere Lawn Tractors Models 325, 335 and 345.

This manual will assist you in diagnosing, and repairing for your lawn tractor.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   325 (SN: 70001-)
   335 (SN: 70001-)
   345 (SN: 70001-)

Format: PDF, 544 pages
Language: English
Publication Date: 28 May 1999
Table of Contents:
   INTRODUCTION
   SAFETY
   SPECIFICATIONS AND INFORMATION
      VEHICLE SPECIFICATIONS
      GASOLINE SPECIFICATIONS
      COOLANT SPECIFICATIONS
      SERIAL NUMBER LOCATION
   KAWASKAI FH531V ENGINE
      SPECIFICATIONS
      COMPONENT LOCATION
      TROUBLESHOOTING

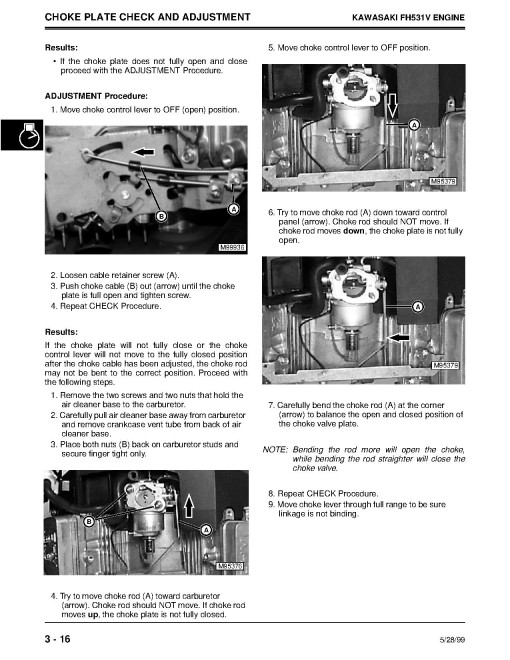

      TESTS AND ADJUSTMENTS

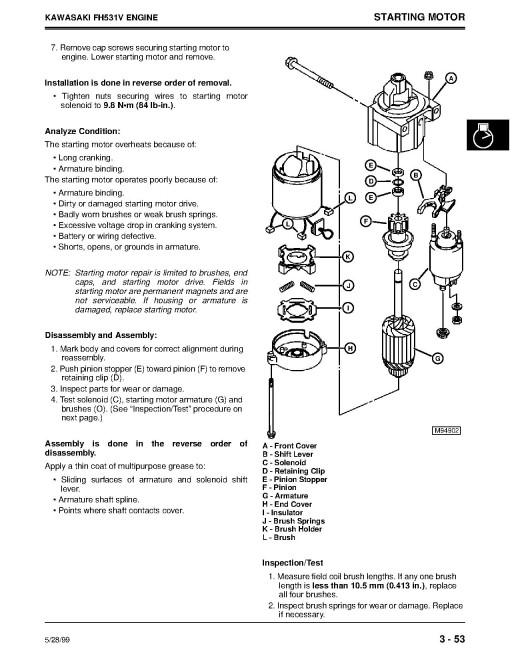

      REPAIR
   KAWASKAI FH601V ENGINE
      SPECIFICATIONS
      COMPONENT LOCATION
      TROUBLESHOOTING
      TESTS AND ADJUSTMENTS
      REPAIR
      THROTTLE CONTROL LEVER AND CABLE
      ENGINE REMOVAL AND INSTALLATION
      MUFFLER REMOVAL AND INSTALLATION
      AIR CLEANER ASSEMBLY
      CARBURETOR REMOVAL AND INSTALLATION
      CARBURETOR COMPONENT LOCATION
      CARBURETOR DISASSEMBLY AND ASSEMBLY
      FUEL PUMP REPLACEMENT
      BLOWER HOUSING REMOVAL AND INSTALLATION
      FLYWHEEL REMOVAL AND INSTALLATION
      BREATHER INSPECTION
      ROCKER ARM REMOVAL AND INSTALLATION
      CYLINDER HEAD REMOVAL AND INSTALLATION
      CYLINDER HEAD INSPECTION
      ANALYZE VALVES
      RECONDITION VALVE SEATS
      LAP VALVES
      CRANKCASE COVER REMOVAL AND INSTALLATION
      PISTON AND CONNECTING ROD
      ANALYZE PISTON RING WEAR
      ANALYZE PISTON WEAR
      ANALYZE CRANKSHAFT AND CONNECTING ROD WEAR
      CAMSHAFT AND TAPPETS
      CRANKSHAFT AND MAIN BEARINGS
      CRANKSHAFT OIL SEALS REPLACEMENT
      CYLINDER BLOCK INSPECTION
      DEGLAZE CYLINDER BORE
      OIL PUMP
      OIL FILTER MANIFOLD
      GOVERNOR INSPECTION AND REPLACEMENT
      GOVERNOR SHAFT INSPECTION AND REPLACEMENT
      ARMATURE REMOVAL AND INSTALLATION
      AIR GAP ADJUSTMENT
      STARTING MOTOR
      NO-LOAD AMPERAGE DRAW AND RPM TEST
   KAWASKAI FD611V ENGINE
      SPECIFICATIONS
      COMPONENT LOCATION
      TROUBLESHOOTING
      TESTS AND ADJUSTMENTS
      REPAIR
   ELECTRICAL
      READING ELECTRICAL SCHEMATICS
      THEORY AND DIAGNOSTIC INFORMATION
      COMMON CIRCUIT TESTS
      SPECIFICATIONS
      SCHEMATIC AND WIRING HARNESS LEGEND - 325/335
      SCHEMATIC AND WIRING HARNESS LEGEND - 345
      COMPONENT LOCATION - 325/335

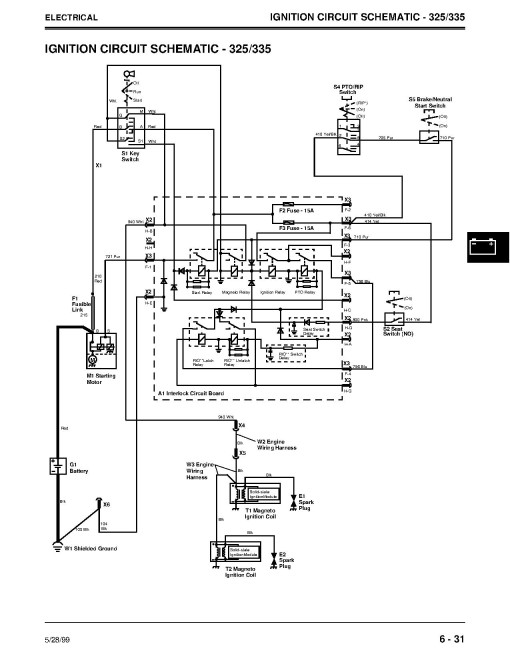

      STANDARD ELECTRICAL SCHEMATIC - 325/335
      W1 MAIN WIRING HARNESS - 325/335
      ELECTRICAL WIRING HARNESSES - 325/335
      COMPONENT LOCATION - 345
      STANDARD ELECTRICAL SCHEMATIC - 345
      W1 MAIN WIRING HARNESS - 345
      ELECTRICAL WIRING HARNESSES - 345
      TROUBLESHOOTING
      THEORY OF OPERATION AND DIAGNOSIS - 325/335
      THEORY OF OPERATION AND DIAGNOSIS - 345
      TESTS AND ADJUSTMENTS
      REPAIR
   POWER TRAIN - HYDROSTATIC
      SPECIFICATIONS
      COMPONENT LOCATION
      HYDROSTATIC TRANSAXLE COMPONENTS
      THEORY OF OPERATION
      TESTS AND ADJUSTMENTS
      REPAIR
      TRANSAXLE REMOVAL AND INSTALLATION
      TRANSAXLE DISASSEMBLY AND INSPECTION
      TRANSAXLE ASSEMBLY
      CONTROL PEDALS AND LINKAGE
      TRACTION DRIVE BELT
      DRIVE BELT TENSION ARM ASSEMBLY
   STEERING - 325
      SPECIFICATIONS
      THEORY OF OPERATION
      TROUBLESHOOTING
      TESTS AND ADJUSTMENTS
      REPAIR
   STEERING - 335/345
      SPECIFICATIONS
      COMPONENT LOCATION
      STEERING VALVE AND SYSTEM OPERATION
      TILT STEERING OPERATION
      TROUBLESHOOTING
      TESTS AND ADJUSTMENTS
      REPAIR
   BRAKES
      SPECIFICATIONS
      THEORY OF OPERATION
      TROUBLESHOOTING
      TESTS AND ADJUSTMENTS
   HYDRAULICS
      SPECIFICATIONS
      COMPONENT LOCATION
      THEORY OF OPERATION
      TROUBLESHOOTING
      TESTS AND ADJUSTMENTS
      REPAIR
   ATTACHMENTS
      SPECIFICATIONS
      COMPONENT LOCATION
      TROUBLESHOOTING
      TESTS AND ADJUSTMENTS
      REPAIR
      MOWER DECK 38 INCH
      MOWER DECK 44 INCH
      MOWER DECK 48 INCH CONVERTIBLE
      MOWER DECK 54 INCH
   MISCELLANEOUS
      SPECIFICATIONS
      REPAIR
   INDEX
