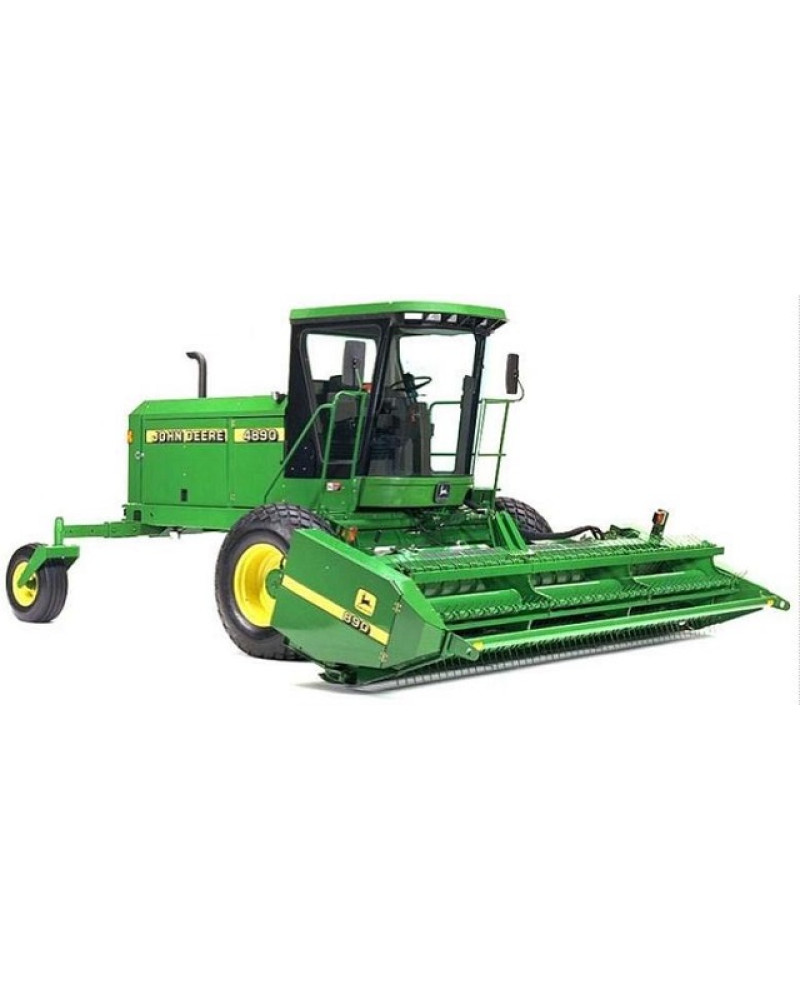

John Deere 4890 Self-Propelled Windrowers Diagnostic Manual (TM1781)

Illustrated factory Diagnostic Manual for John Deere Self-Propelled Windrowers Models 4890.

This manual will assist you in diagnosing for your self-propelled windrower.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   4890

Format: PDF, 350 pages
Language: English
Publication Date: 03 Apr 2001
Table of Contents:
   Introduction
      Foreword
   Safety Information
      Safety
   Engine
      Diagnostic Information
   Fuel/Air Systems
      Diagnostic Information
   Electrical System
      Theory of Operation
      System Information
      Electrical Diagrams
      Diagnosing Electrical System Malfunctions
      Power Supply Circuits Tests
      Starting System Tests
      Charging System Tests (120 Amp)
      Ground Speed Control System Diagnostics
      Lighting System Tests
      Platform Control Systems Tests
      Machine Monitor System Tests
      Fuel Control Tests
      Heating and Air Conditioning Tests
      Cab Accessories Circuits Tests
      Air Seat Systems Tests
      Miscellaneous Tests
   Power Train
      General Information
      System Operational Checks
      Diagnostic Information
      Hydrostatic System Schematic And Symbols
      Tests
      Theory of Operation and Component Location
   Steering and Brakes
      System Operational Checks
      Diagnostic Information
      Adjustments
      Theory Of Operation
   Hydraulic System
      General Information
      System Operational Checks
      Diagnostic Information
      Hydraulic System Schematic And Symbols
      System Tests and Adjustments
      Theory of Operation
   Operator Station
      General Information
      System Operational Checks
      Diagnostics
      Tests
      Adjustments
      Theory of Operation
   Dealer Fabricated Tools
      Dealer Fabricated Tools
