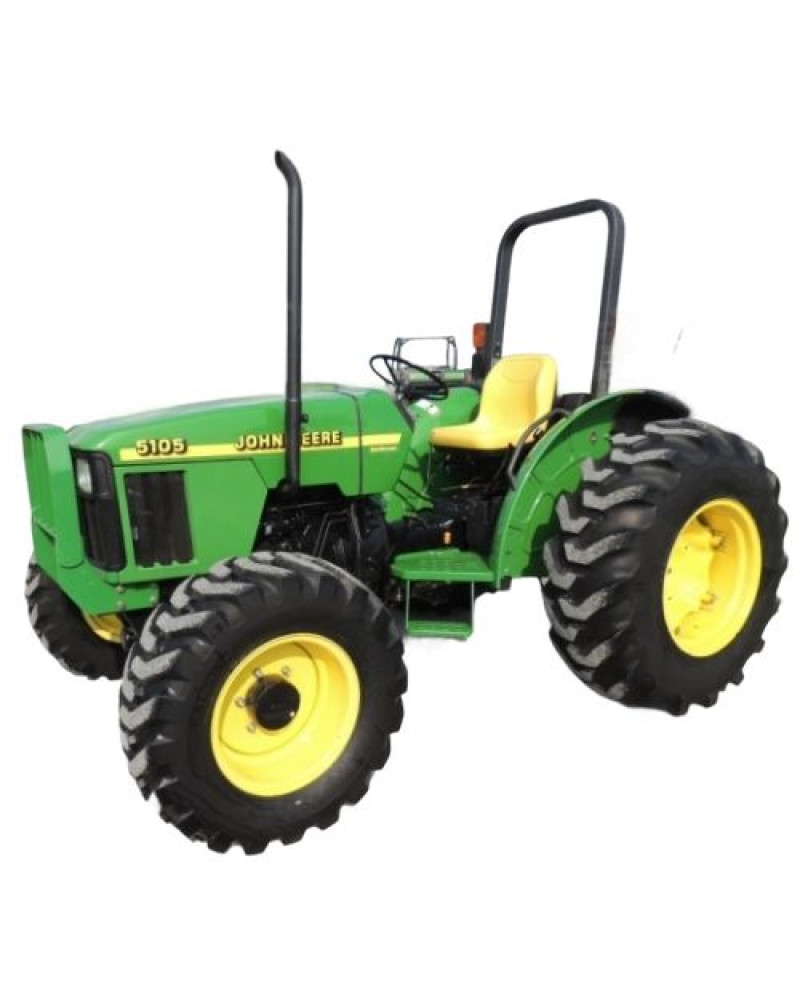

John Deere 5105 and 5205 Tractors Technical Manual (TM1792)

Illustrated factory Technical Manual for John Deere Tractors Models 5105 and 5205.

This manual will assist you in diagnosing, and repairing for your tractor.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   5105
   5205

Format: PDF, 631 pages
Language: English
Publication Date: 05 Dec 2003
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      General Specifications
      Fuel and Lubricants
      Serial Number Locations
      Features and Accessories
   Engine Repair

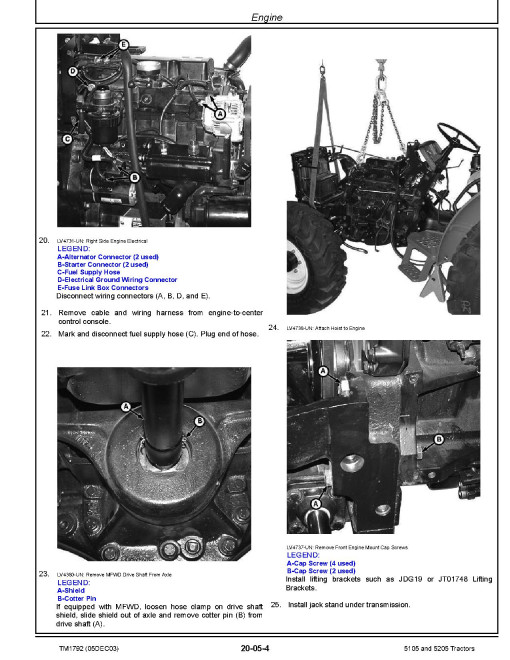

      Engine
      Cooling System
   Fuel and Air Repair
      Fuel System
      Air Intake System
      Speed Control Linkage
   Electrical Repair
      Battery, Starter and Alternator
      Electrical System Components
      Wiring Harness
   Power Train Repair
      Clutch Housing
      Clutch Assembly
      Transmission
      Rear PTO
      Differential
      Final Drives
      Mechanical Front Wheel Drive
   Steering and Brake Repair
      Steering Repair
      Brake Repair
   Hydraulic Repair
      Hydraulic Pump and Filter
      Rockshaft
      Selective Control Valve (SCV)

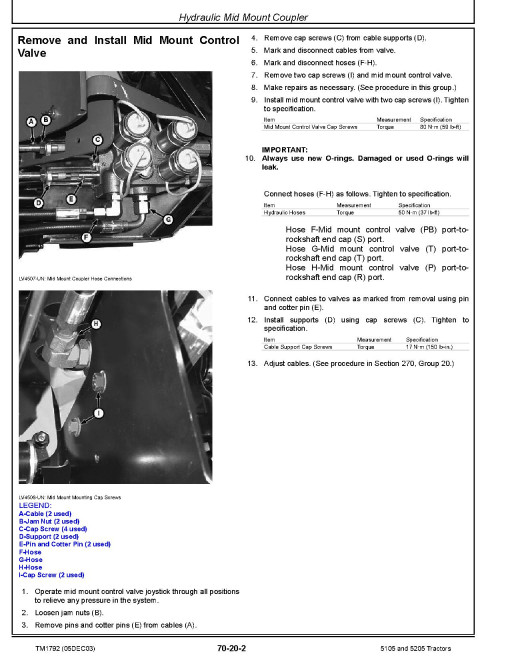

      Hydraulic Mid Mount Coupler
   Miscellaneous Repair
      Front Axle-2WD
      Wheels
      3-Point Hitch
   Operator Station Repair
      Seat and Support
      ROLL-GARD
      Operator Platform
      Fenders
   Operational Checkout Procedures
      Operational Checkout Procedures
   Engine Operation, Tests and Adjustments
      Component Location
      Theory of Operation
      Diagnosis, Tests and Adjustments
   Fuel/Air Operation, Tests and Adjustments
      Component Location
      Theory of Operation
      Diagnosis, Tests and Adjustments
   Electrical System Operation, Tests & Adjust
      Component Location
      Theory of Operation

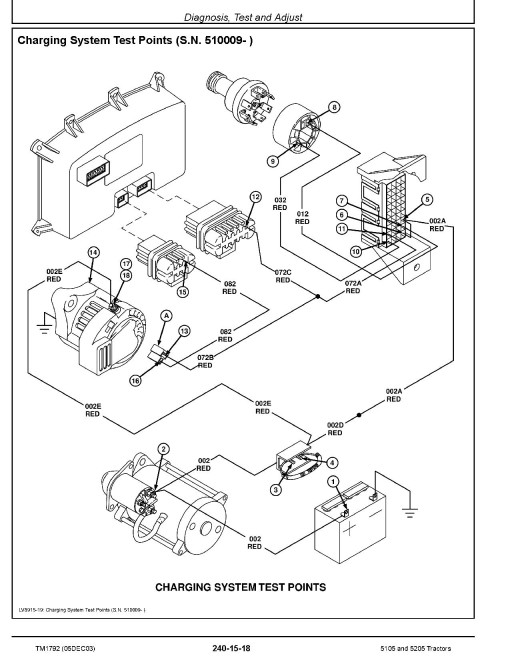

      Diagnosis, Test and Adjust
      Wiring Schematics
   Power Train Operation, Tests & Adjustments
      Component Location-Power Train
      Theory of Operation-Transmission
      Diagnosis, Tests and Adjustments-Power Train
   Steering and Brake Operation, Test & Adjust
      Component Location
      Theory of Operation
      Diagnosis, Tests and Adjustments
   Hydraulic System Operation, Test & Adjust
      Component Location
      Theory of Operation
      Diagnosis
      Hydraulic Tests-Without SCV
      Hydraulic Tests-With SCV
      Hydraulic Tests-With Mid Mount Control Valve
      Hydraulic Tests-All
      Adjustments
      Hydraulic Schematics
   Dealer Fabricated Tools
      Dealer Fabricated Tools
